1.9.3 Mounting Requirements

The sensor is mounted to a high-vacuum chamber with a 69.9 (2.75 in.) DN40
ConFlat
38.1 mm (1.5 in.) ID.
The electronics module attaches to and is supported by the sensor.
Transpector MPS can be mounted in any position.

1.9.4 Ventilation Requirements

At least 25.4 (1 in.) of open space around the Transpector MPS electronics module
must be maintained for proper ventilation.

1.9.5 Maintenance Access

Easy access to Transpector MPS should be maintained for installation and
maintenance activities.

1.10 Electrical Power Requirements

Transpector MPS must be connected to a source of power as specified in the
following sections.

1.10.1 Required Supply Voltage

20 to 30 V(dc), 24 V(dc) typical

1.10.2 Current Rating

1.25 A maximum

1.10.3 Electrical Connection

Latching, 4-pin DIN connector, internally isolated from system ground.
See Figure

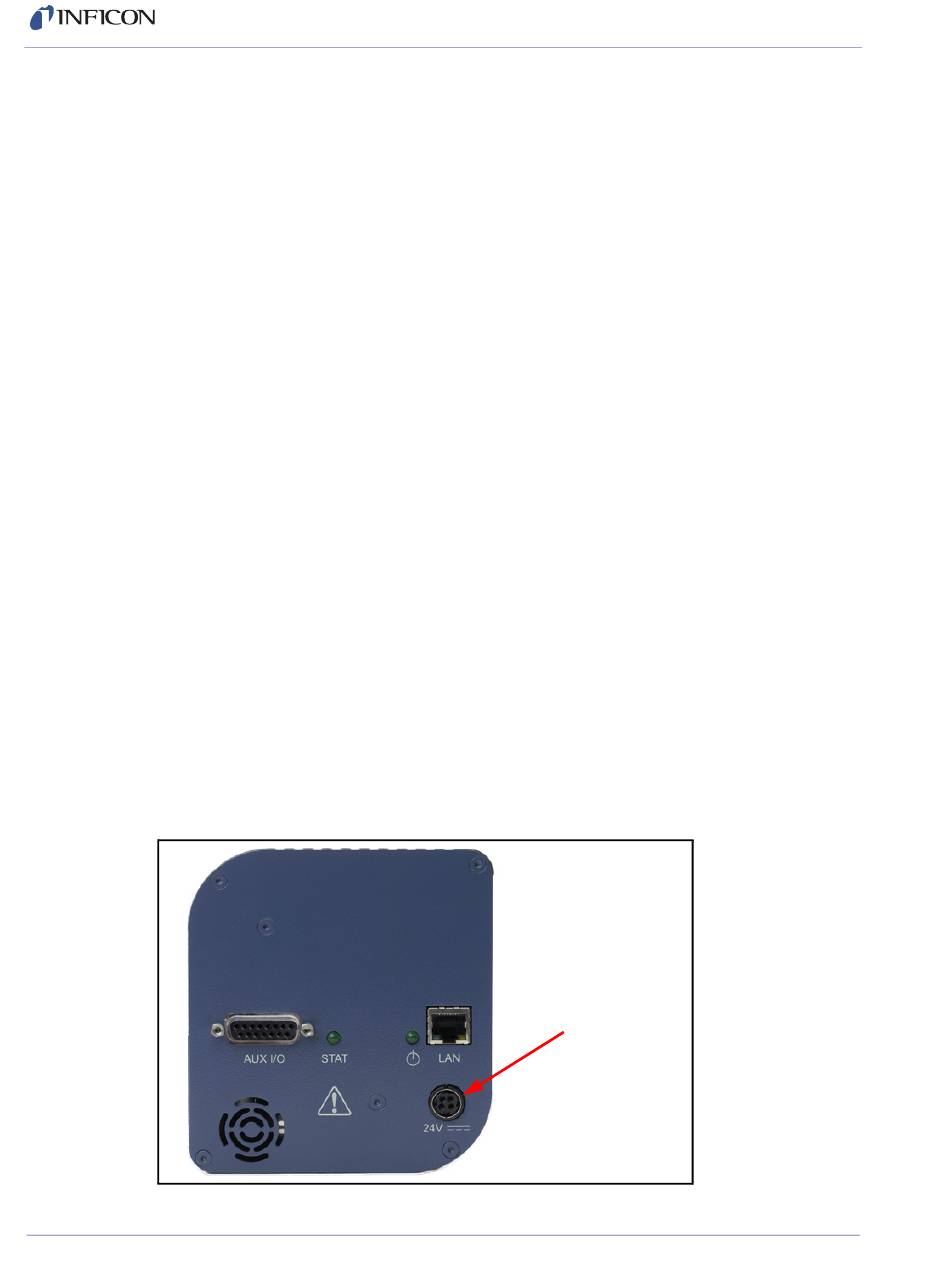

Figure 1-2 Transpector MPS connections
1 - 7
®
flange with an extension tube with an OD of 41.2 mm (1.62 in.) and a
1-2.
Transpector MPS Operating Manual
Electrical Connection
