MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module

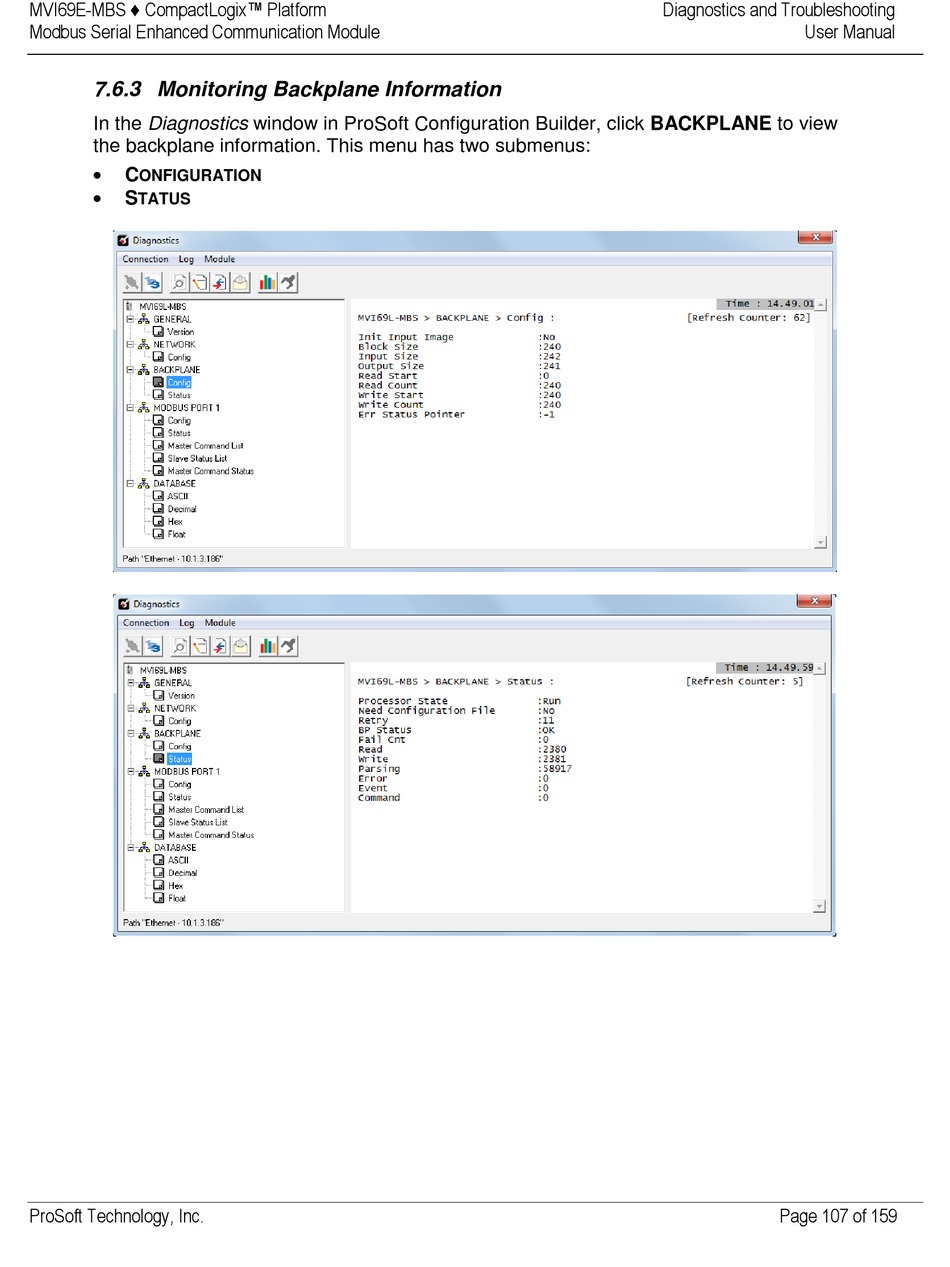

7.6.3 Monitoring Backplane Information
In the Diagnostics window in ProSoft Configuration Builder, click BACKPLANE to view
the backplane information. This menu has two submenus:
C
ONFIGURATION
S
TATUS
ProSoft Technology, Inc.
Diagnostics and Troubleshooting
User Manual
Page 107 of 159
