Connecting the PC to the Module's Ethernet Port

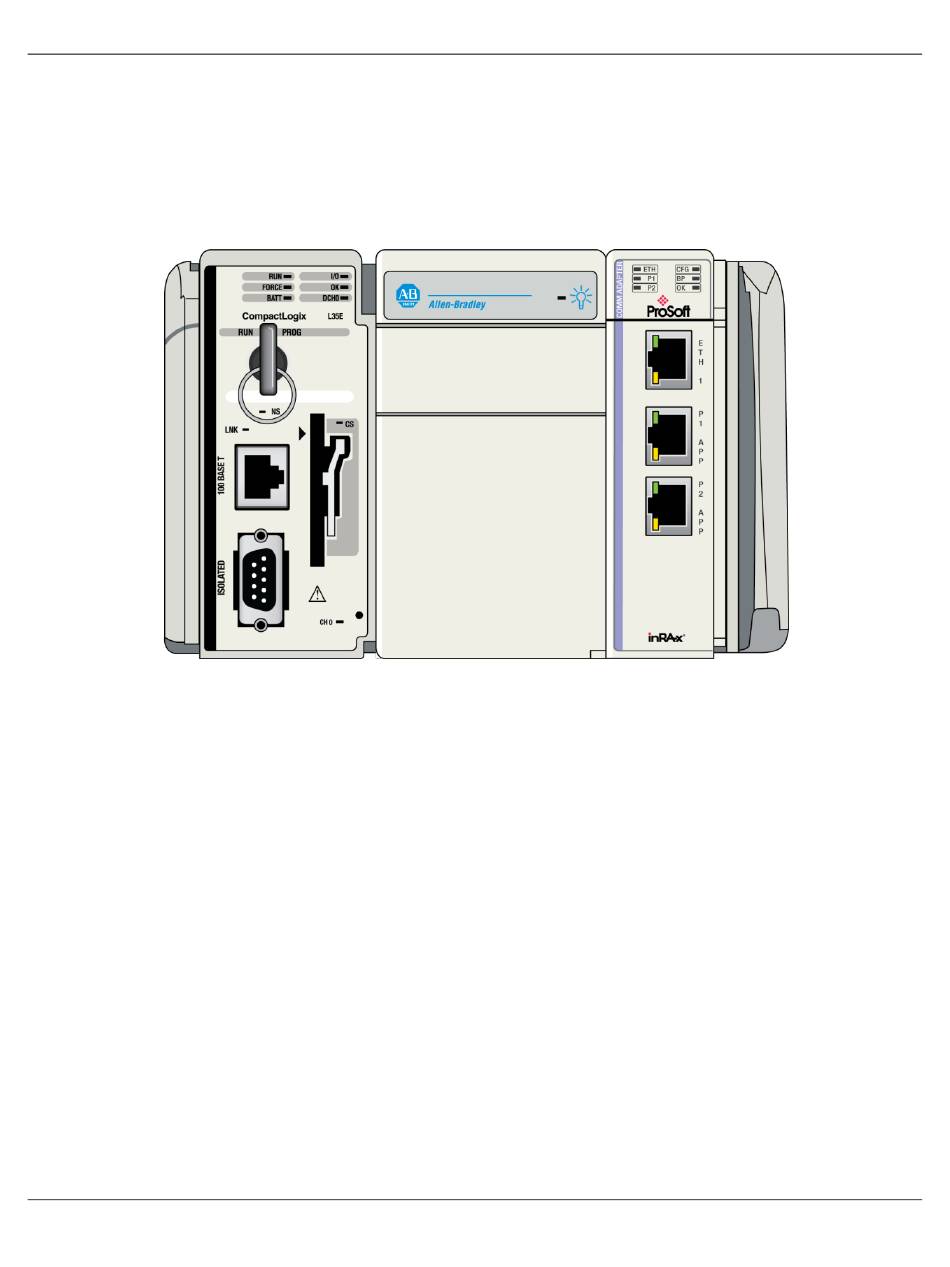

With the module securely mounted, connect one end of the Ethernet cable to the ETH1
Port, and the other end to an Ethernet hub or switch accessible from the same network
as the PC. Or, connect directly from the Ethernet Port on the PC to the ETH 1 Port on
the module.
