2.3.2 Creating and Exporting the .L5X File

There are two parameters in the PCB configuration that affect the format of the .L5X file
that is exported. Before exporting the .L5X file to the PC/Laptop, check the Block
Transfer Size and Slot Number parameters.

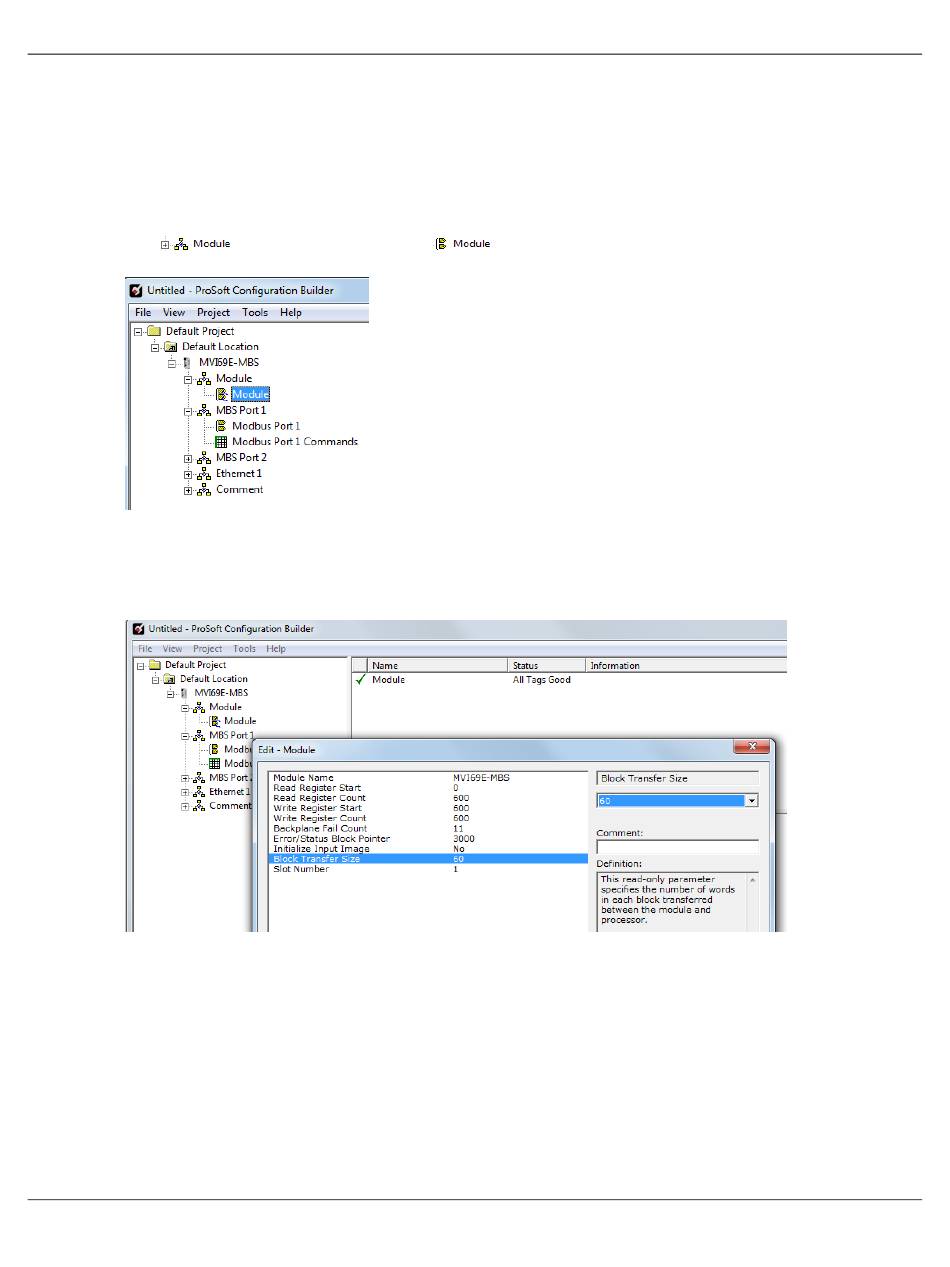

1 Expand the MVI69E-MBS icon by clicking the [+] symbol beside it. Similarly, expand
the
2 Set the Block Transfer Size to the desired size of the data blocks transferred
between the module and processor (60, 120 or 240 words). Block transfer size
information can be found starting in the section on Normal Data Transfer (page 68).
ProSoft Technology, Inc.
icon. Double-click the
Configuring the Module in RSLogix
icon to open the Edit - Module dialog box.
