PCB Configuration

You will need to convert the existing 'MVI69-MCM' PCB project to an 'MVI69E-MBS'
project.

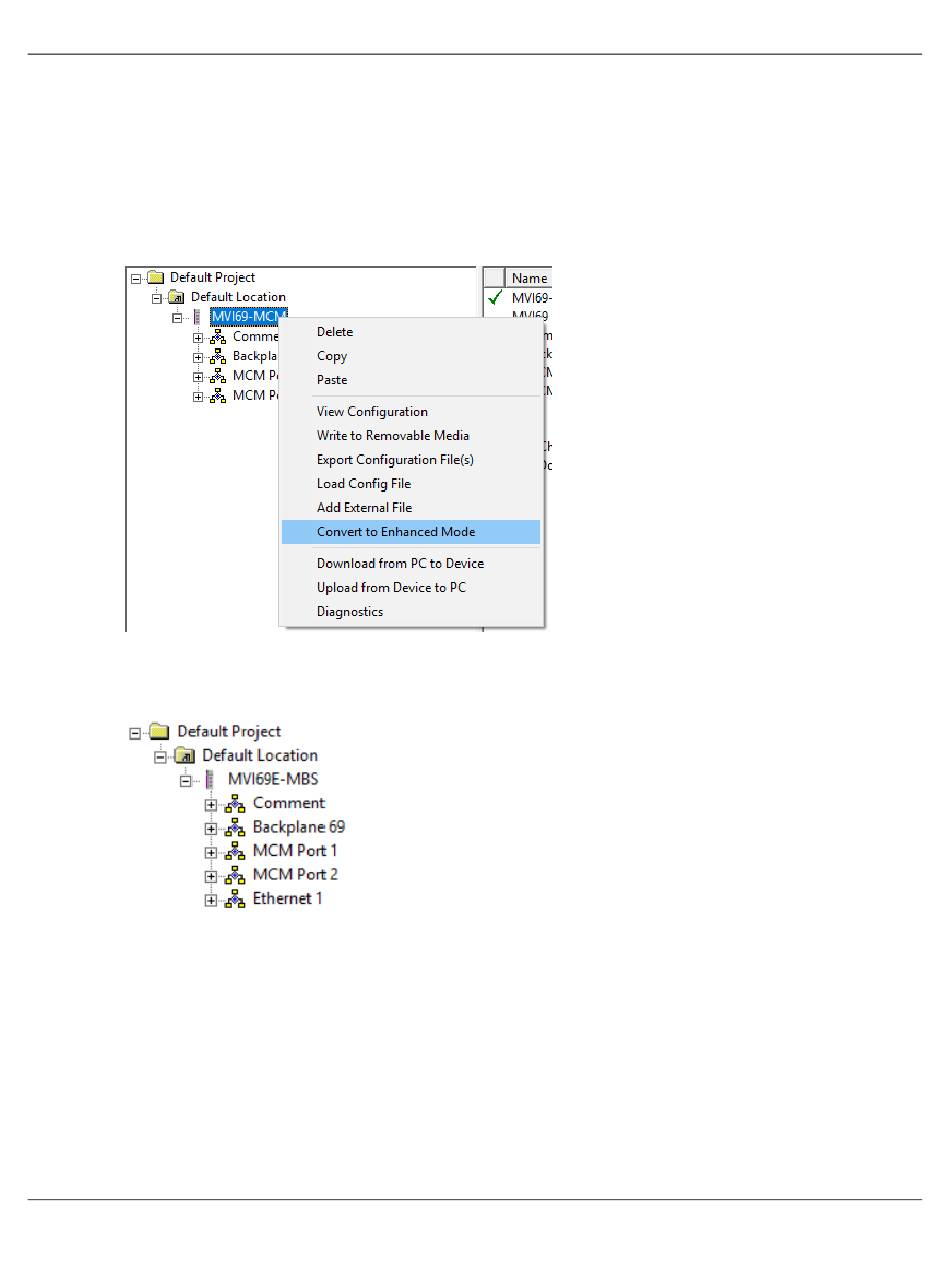

1 Open the existing MVI69-MCM project in PCB.
2 Right-click on the MVI69-MCM icon and select C
3 After the conversion, the PCB module parameters are updated.
