MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module
4

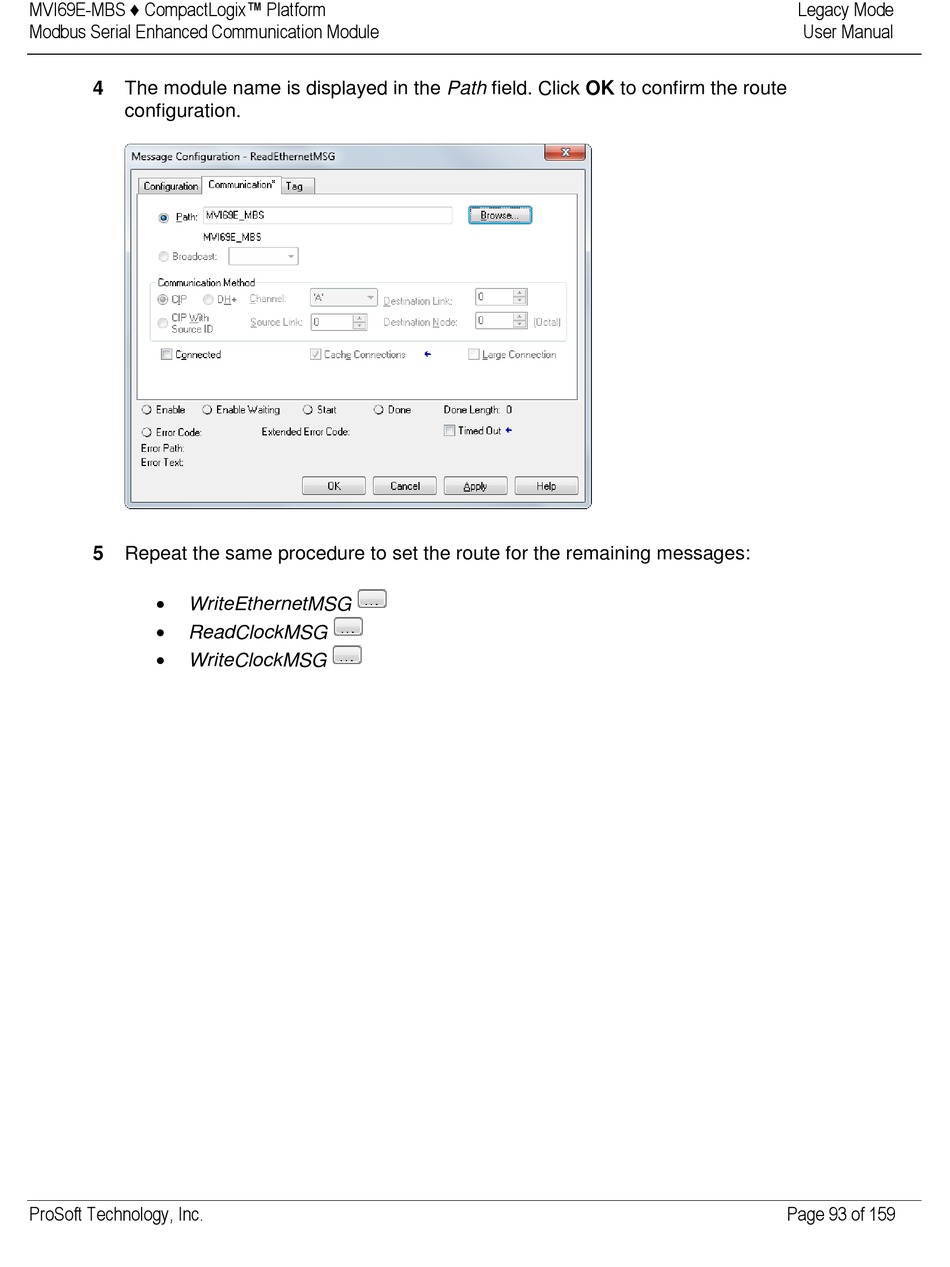

The module name is displayed in the Path field. Click OK to confirm the route
configuration.
5
Repeat the same procedure to set the route for the remaining messages:
WriteEthernetMSG
ReadClockMSG
WriteClockMSG
ProSoft Technology, Inc.
Legacy Mode
User Manual
Page 93 of 159
