6.4.1 Setting Up the Optional AOI

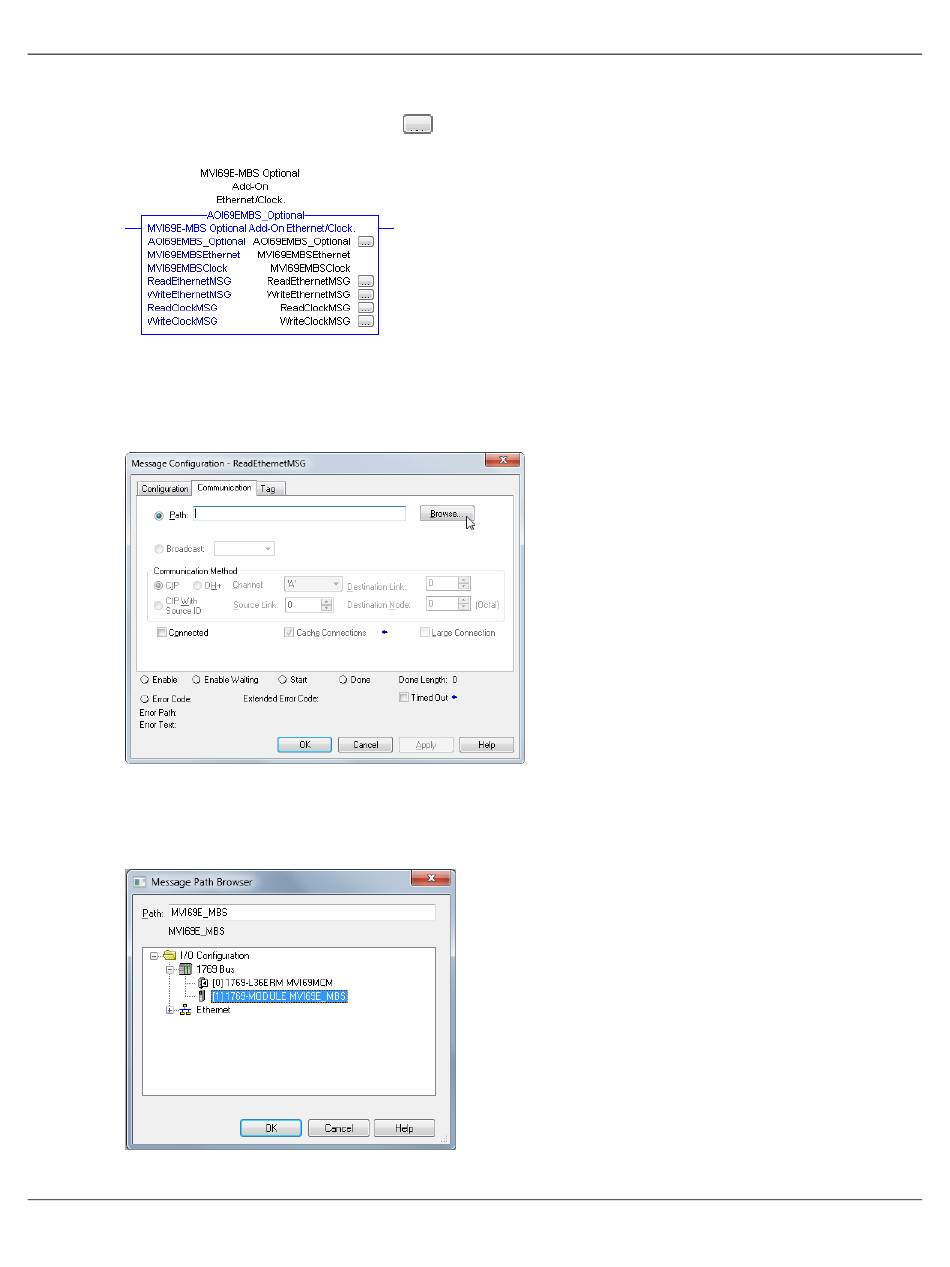

1 Click on the ReadEthernetMSG
2 In the Message Configuration dialog, under the Communication tab, select the
B button.
ROWSE
3 In the Message Path Browser dialog, select the MVI69E-MBS module under the
1769 Bus and click at OK.
ProSoft Technology, Inc.
icon to configure the message route:
