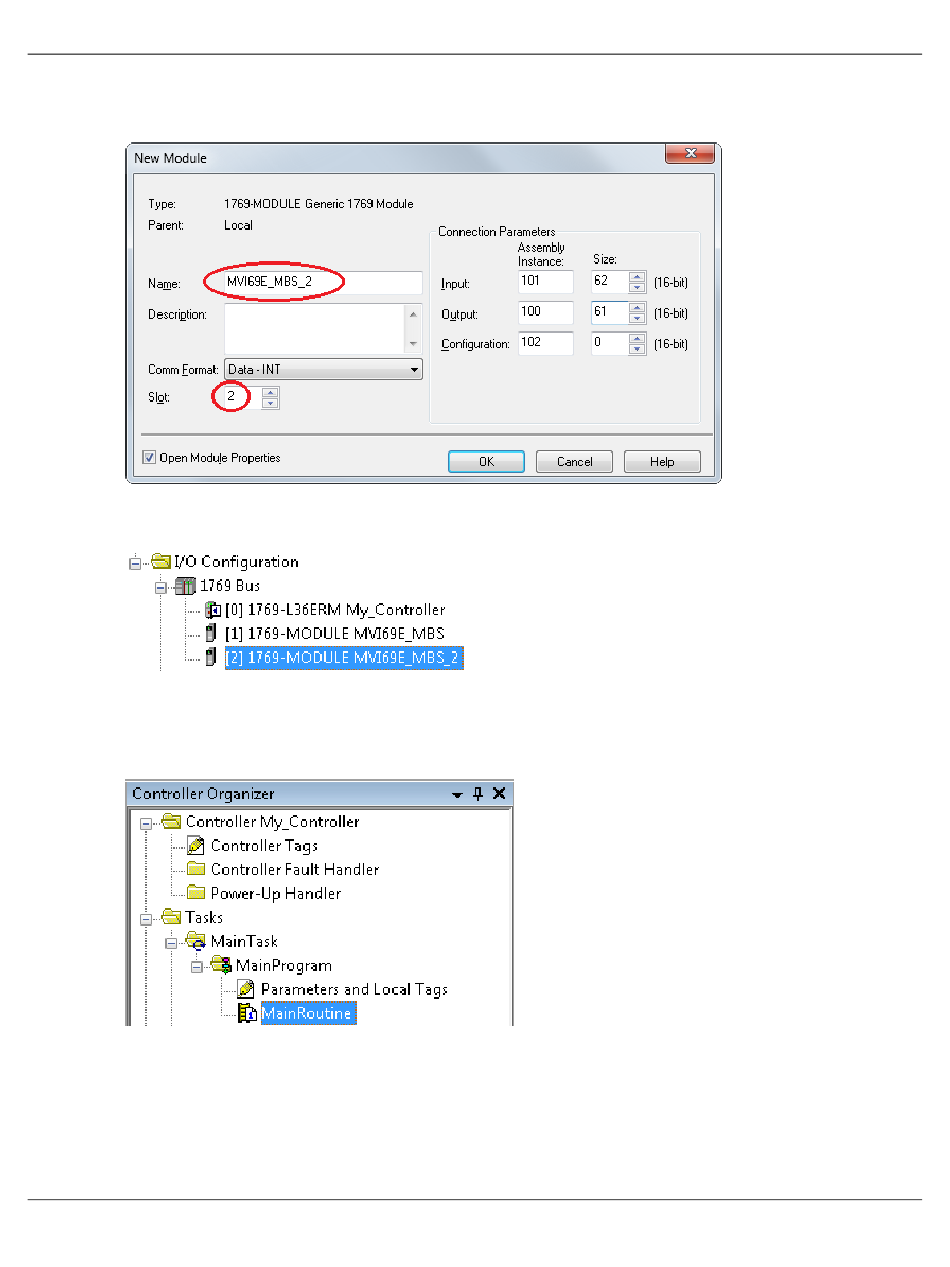

4 The New Module dialog box appears. Enter a unique name for the new module, and
confirm the slot number of the new module.
5 Click OK. The new module is now visible.
6 You must also import the Add-On Instruction (AOI) for the new module (see Adding
another module in PCB (page 29)). In the Controller Organizer pane, double-click
M R
AIN OUTINE
ProSoft Technology, Inc.
to open the ladder for the routine.
