Adding Multiple Modules in the Rack (Optional)

Important: This procedure is for multiple MVI69E-MBS modules running in the same CompactLogix or
MicroLogix 1500-LRP rack.
You can add additional modules of the same type to the rack.
1 Add a new MVI69E-MBS module to the ProSoft Configuration Builder (PCB) project.
2 Export the module configuration as an L5X file.
3 Add a new MVI69E-MBS to the Studio 5000 project.
4 Import the .L5X file into Studio 5000 for the new module as an Add-On Instruction.

2.5.1 Adding Another Module in PCB

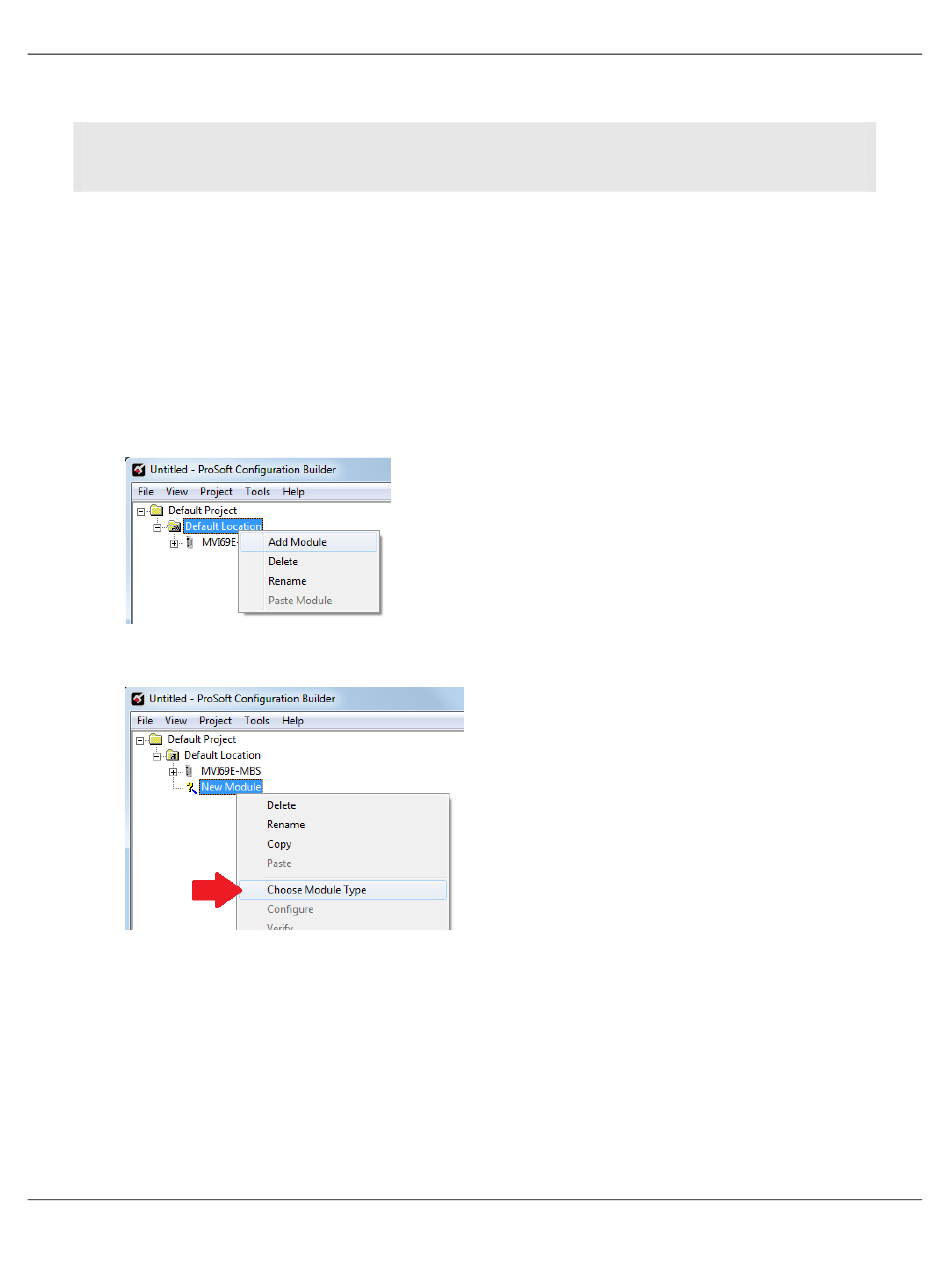

1 Start ProSoft Configuration Builder.
2 Right click D
3 Right-click N
4 In the Choose Module Type dialog box, select MVI69E in the P
area, and then select MVI69E-MBS as the M
5 Select the MVI69E-MBS module in the tree and repeat the above steps to add a
second (or more) module in the PCB project.
