MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module

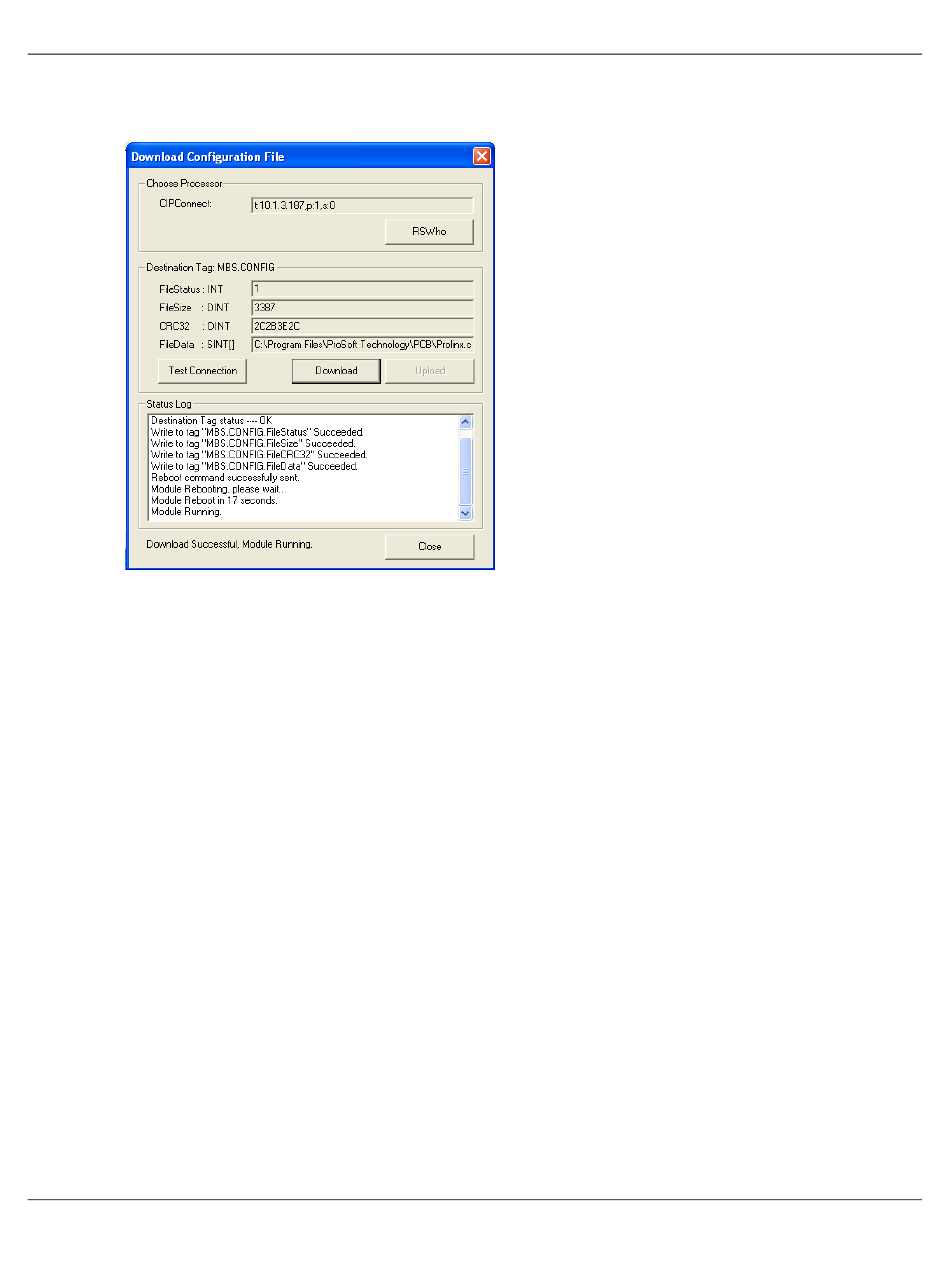

5 When ready, click D
Following the download process, the module is automatically rebooted.
6 After rebooting, the ladder logic sends the configuration data from the processor to
the module. When that is complete, the module starts Modbus communications.
ProSoft Technology, Inc.
to download the configuration file to the processor.
OWNLOAD
Configuring the MVI69E-MBS Using PCB
