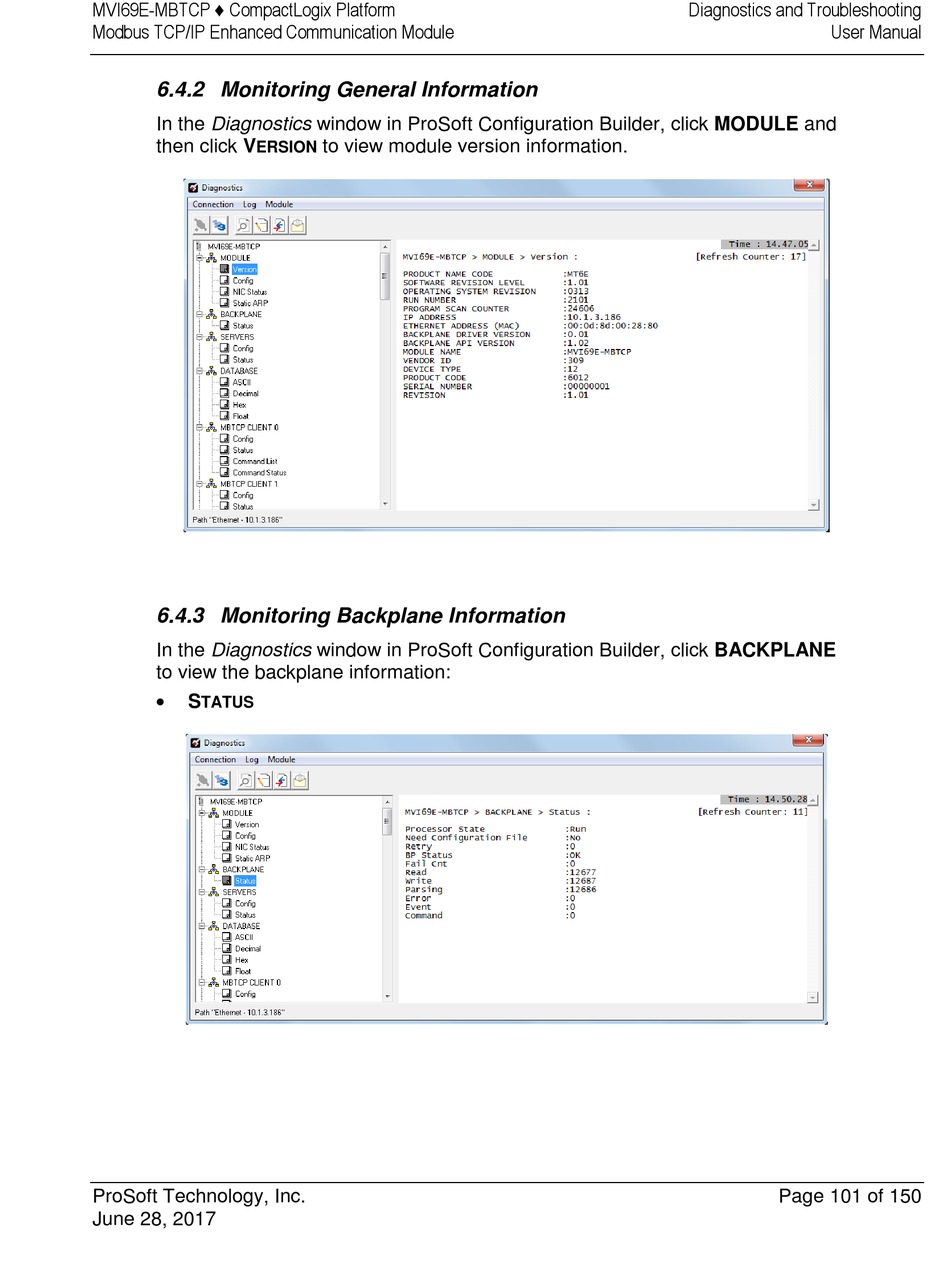

6.4.2 Monitoring General Information

In the Diagnostics window in ProSoft Configuration Builder, click MODULE and
then click V
ERSION

6.4.3 Monitoring Backplane Information

In the Diagnostics window in ProSoft Configuration Builder, click BACKPLANE
to view the backplane information:

S
TATUS
ProSoft Technology, Inc.
June 28, 2017
to view module version information.
