MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module
6.4

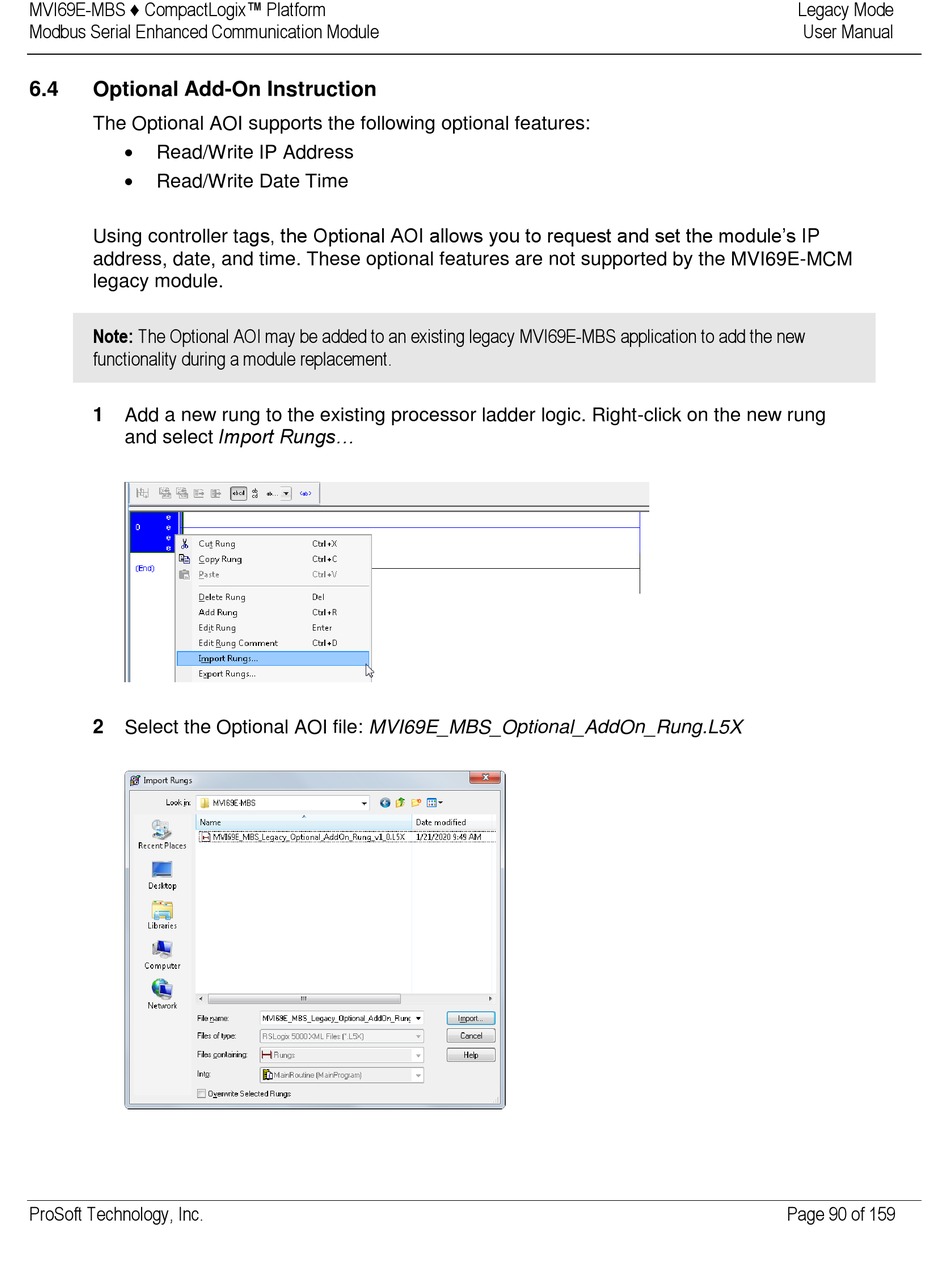

Optional Add-On Instruction

The Optional AOI supports the following optional features:

Read/Write IP Address

Read/Write Date Time
Using controller tags, the Optional AOI allows you to request and set the module's IP
address, date, and time. These optional features are not supported by the MVI69E-MCM
legacy module.
Note: The Optional AOI may be added to an existing legacy MVI69E-MBS application to add the new
functionality during a module replacement.
1 Add a new rung to the existing processor ladder logic. Right-click on the new rung
and select Import Rungs...
2 Select the Optional AOI file: MVI69E_MBS_Optional_AddOn_Rung.L5X
