MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module
3

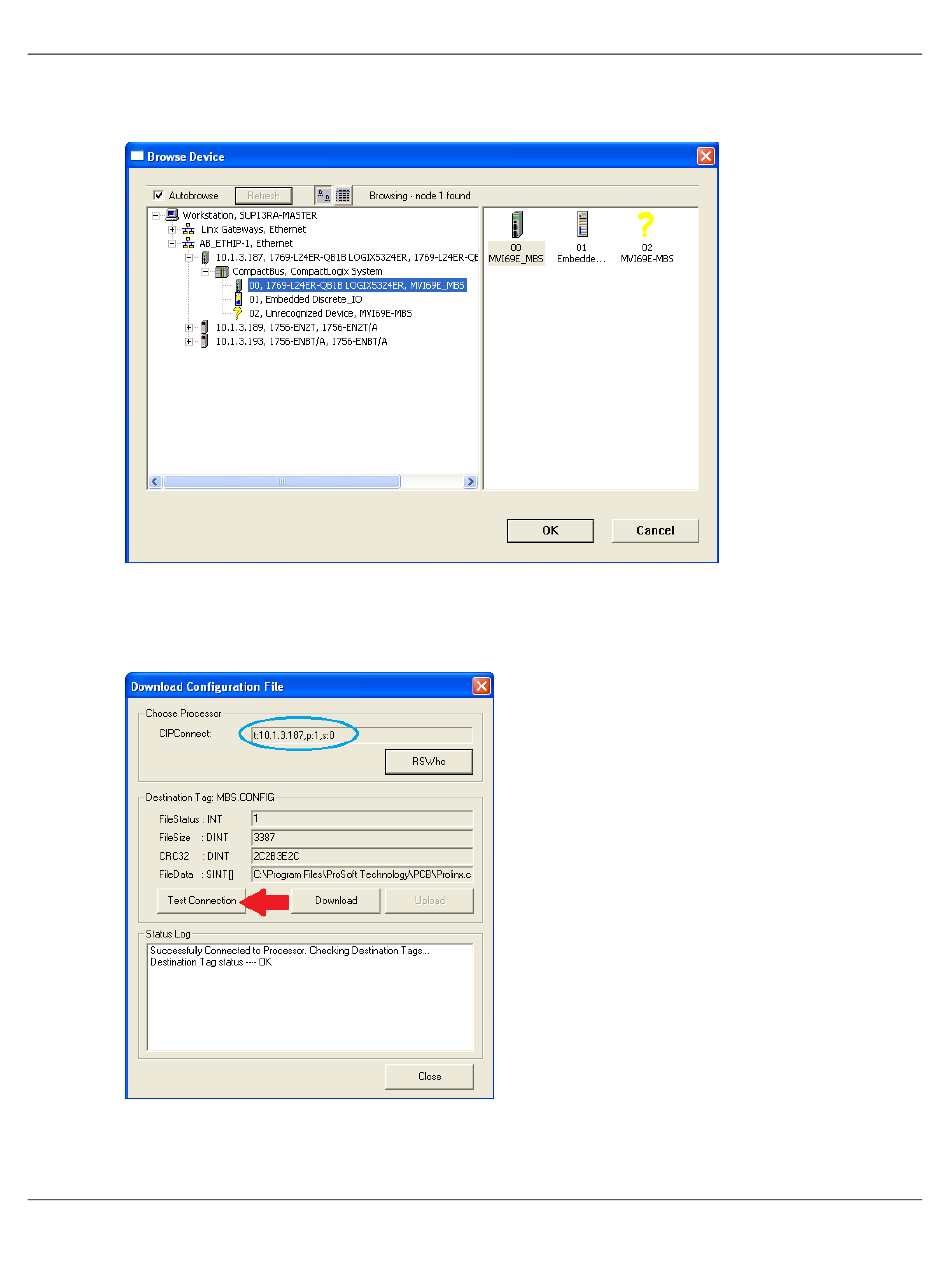

Browse to, and then highlight the CompactLogix or MicroLogix 1500-LRP processor
and click OK.
4
Notice the CIPConnect path has been updated in the Download Configuration File
dialog box. Click T
connect to the processor.
ProSoft Technology, Inc.
C
to verify the path is active and can successfully
EST
ONNECTION
Configuring the MVI69E-MBS Using PCB
User Manual
Page 49 of 159
