3.2.4 Ethernet 1

This section defines the permanent IP address, Subnet Mask, and Gateway of the
module.

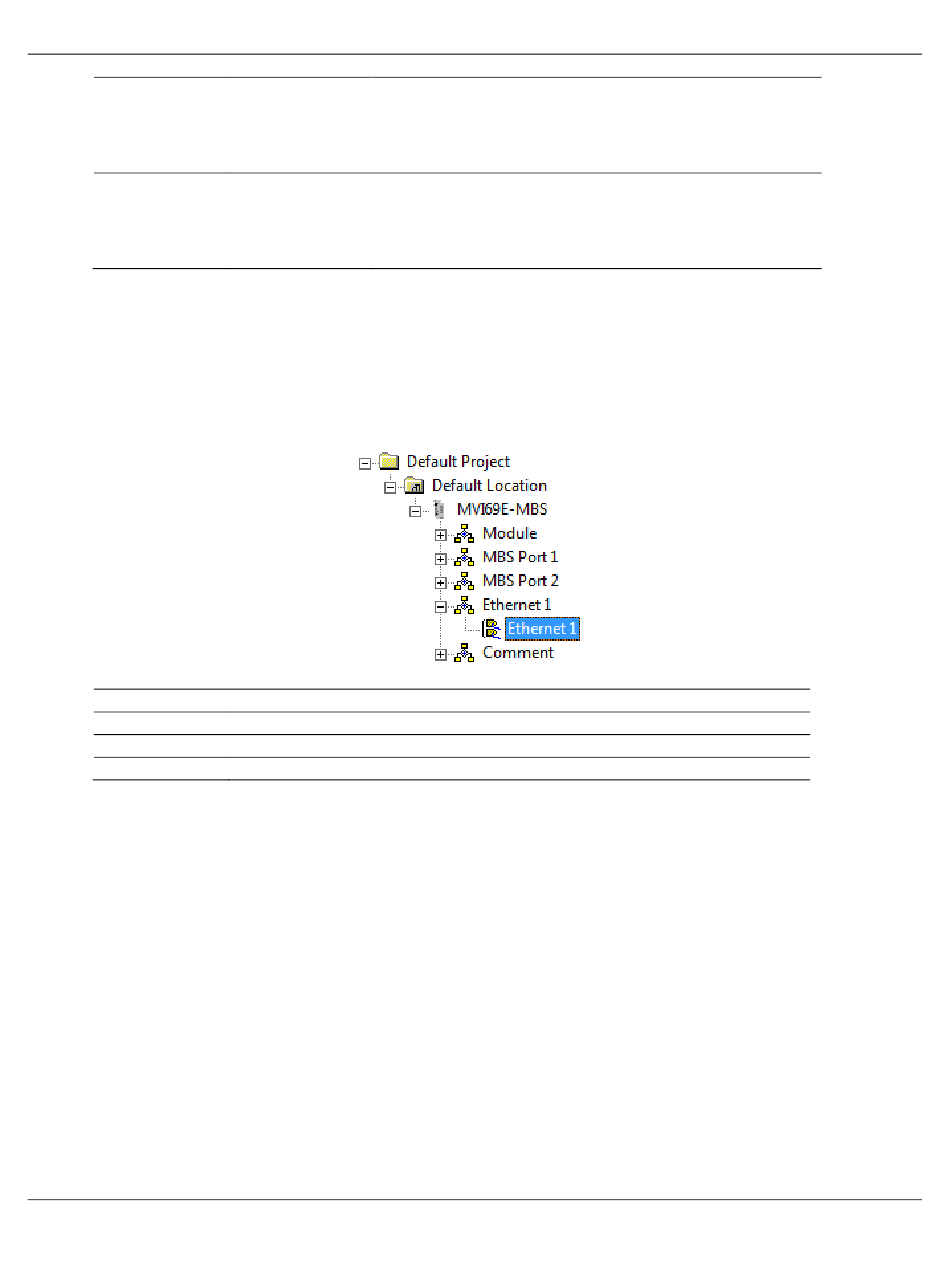

In the ProSoft Configuration Builder tree view, double-click the E
Parameter
IP Address
Netmask
Gateway
ProSoft Technology, Inc.
Example: Using a Modbus Function Code 3 to read from
address 40010 in the slave, a value of '9' would be entered in
this parameter. The firmware (internally) adds a '40001' offset
to the value entered. This is the same for all Modbus
addresses (0x, 1x, 3x, 4x).
This parameter is only applicable for Enable Codes 3
(Bit/Word Override) or 4 (Float Override).
If an error occurs associated to a read command the module
automatically populates the associated database area with
this override value.
Description
Unique IP address assigned to the module
Subnet mask of module
Gateway (if used)
Configuring the MVI69E-MBS Using PCB
1 icon.
THERNET
