MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module
3 In the Tree view, right-click D

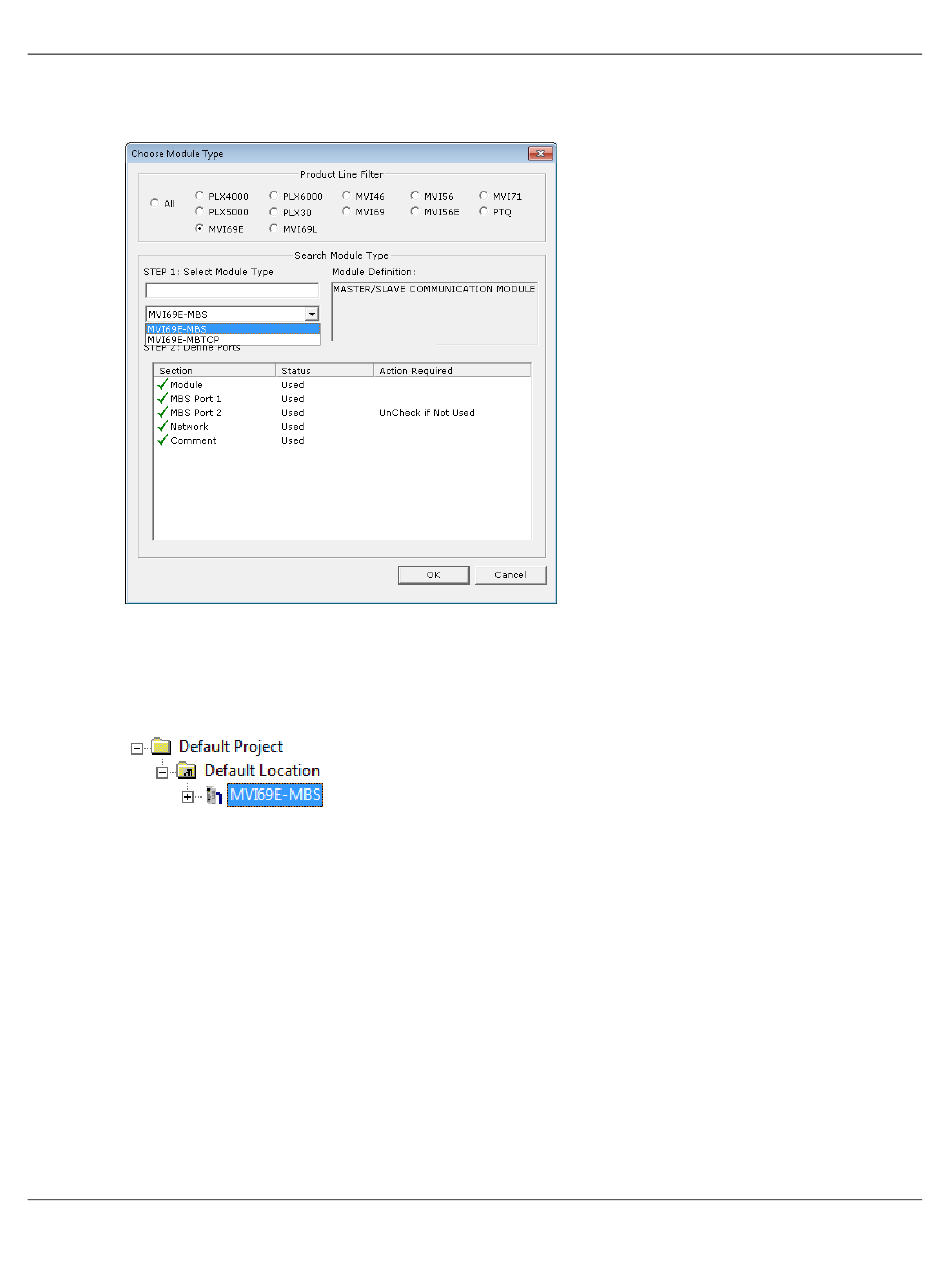

This opens the Choose Module Type dialog box.
4 In the Product Line Filter area of the dialog box, click MVI69. In the Select Module
Type dropdown list, click MVI69E-MBS, and then click OK to save your settings and
return to the ProSoft Configuration Builder window. The MVI69E-MBS icon is now
visible in the tree view.
ProSoft Technology, Inc.
M , and then click C
EFAULT ODULE
Configuring the Module in RSLogix
User Manual
M T
HOOSE ODULE YPE
Page 23 of 159
.
