MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module

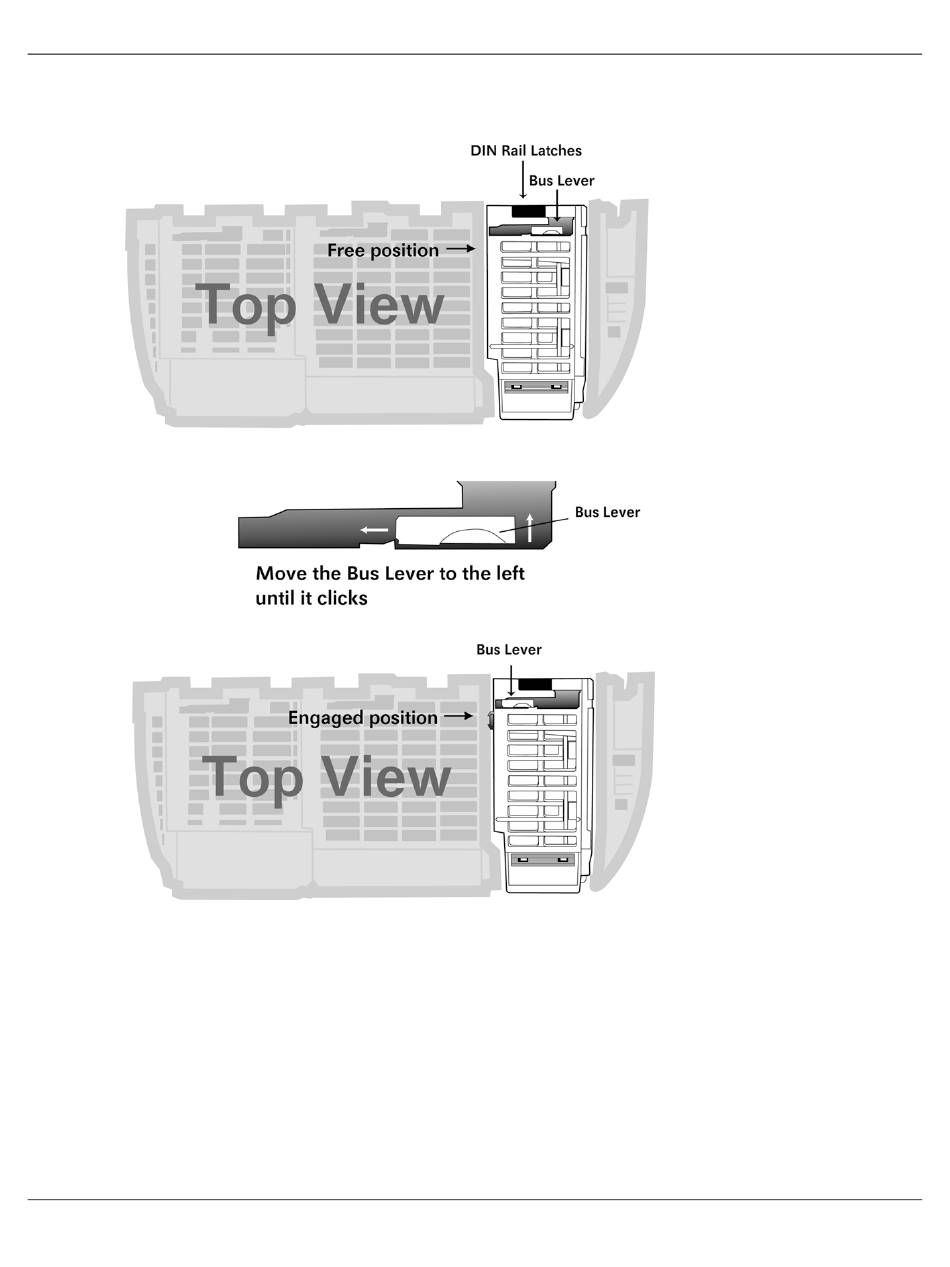

Push the module's bus lever back slightly to clear the positioning tab and move it
3
firmly to the left until it clicks. Ensure that it is locked firmly in place.
4
Close all DIN-rail latches.
ProSoft Technology, Inc.
Start Here
User Manual
Page 12 of 159
