MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module

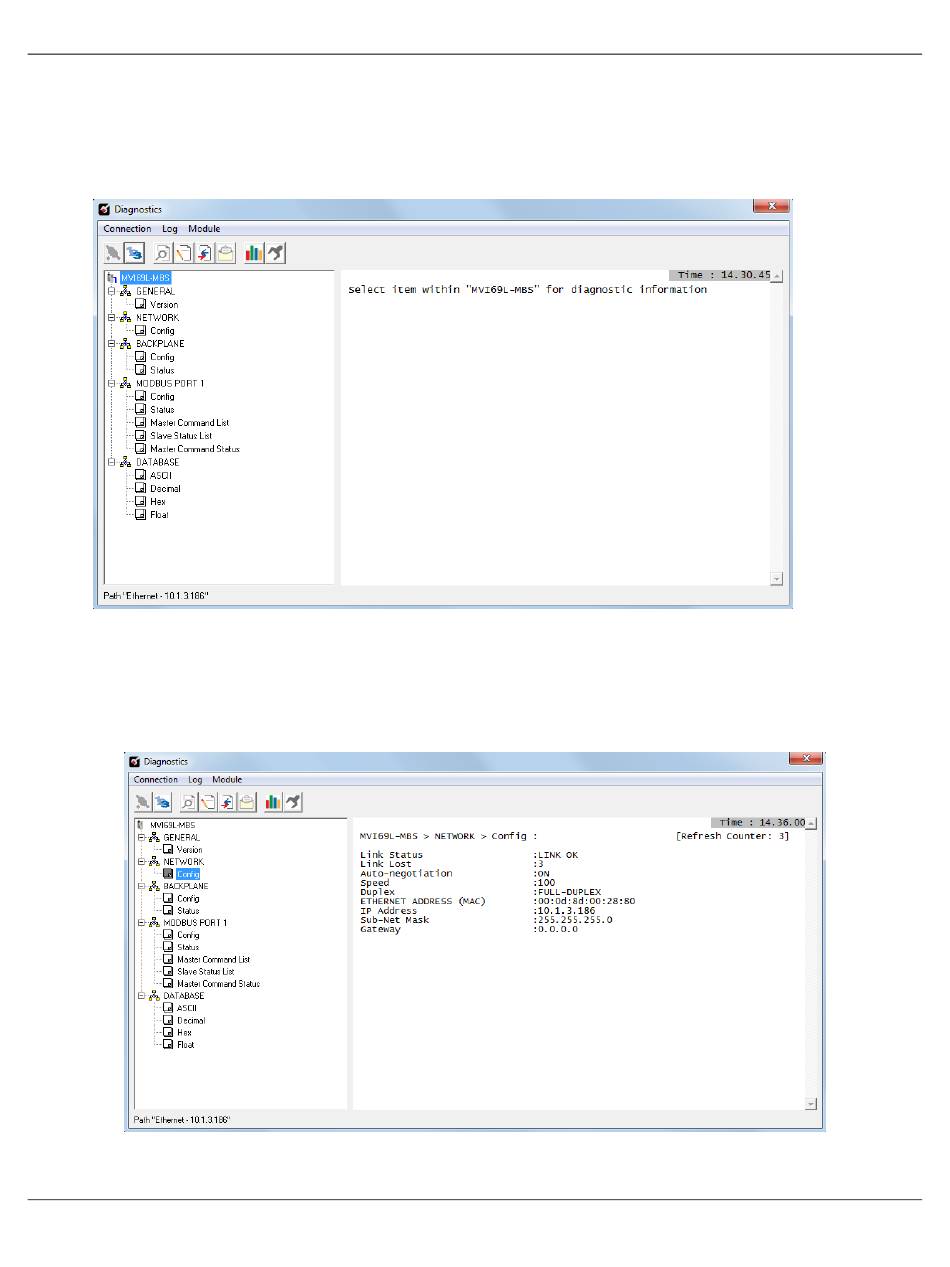

7.6.1 Diagnostics Menu
In the Diagnostics window in ProSoft Configuration Builder, the Diagnostics menu is
available through the Ethernet configuration port. The menu is arranged as a tree
structure.
7.6.2 Monitoring Network Configuration Information
In the Diagnostics window in Prosoft Configuration Builder, click NETWORK and then
click C
to view the Ethernet network configuration information.
ONFIG
ProSoft Technology, Inc.
Diagnostics and Troubleshooting
User Manual
Page 106 of 159
