MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module

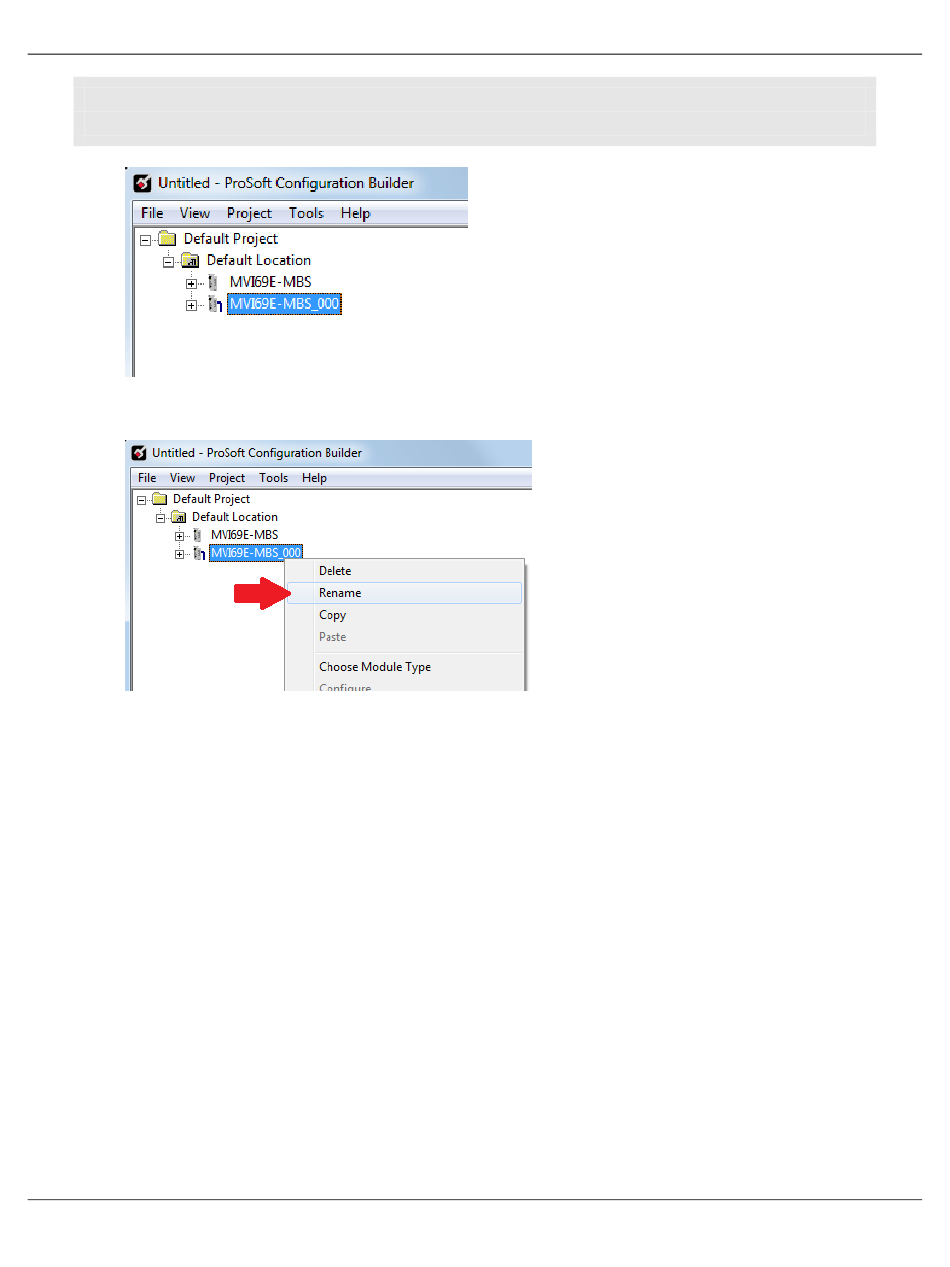

Note: You must give each MVI69E-MBS module a unique name. The default name on a duplicate module
appends a number to the end such as MVI69E-MBS_000, MVI69E-MBS_001, etc.
6
You can rename the module by right clicking the module and choosing Rename.
7
Configure the module parameters. See Module Configuration Parameters (page 39)
and then export the AOI .L5X file for the new module (right-click the module and
choose E
XPORT
ProSoft Technology, Inc.
AOI F
. See Creating and Exporting the .L5X File (page 24).
ILE
Configuring the Module in RSLogix
User Manual
Page 30 of 159
