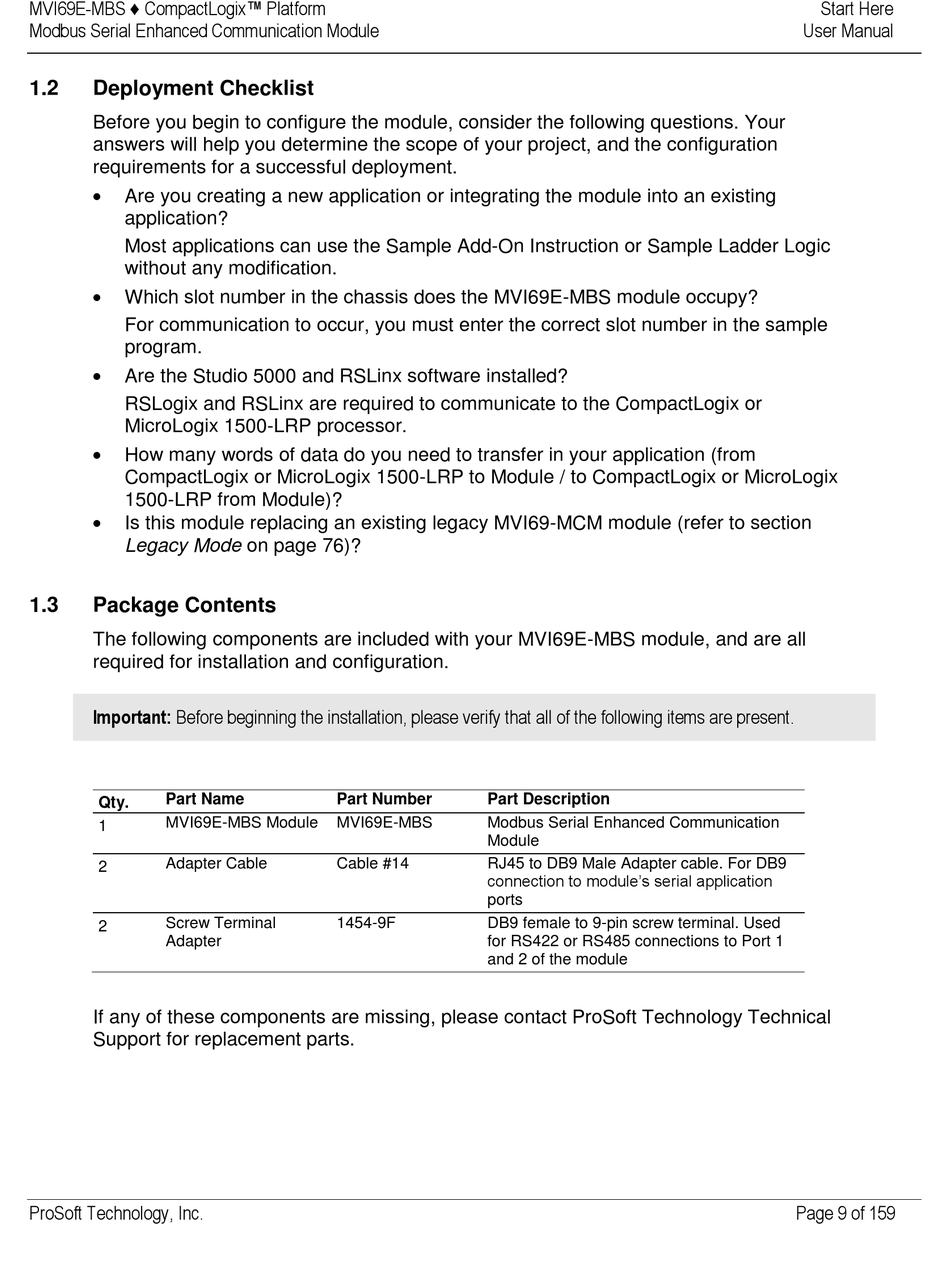

Deployment Checklist

Before you begin to configure the module, consider the following questions. Your
answers will help you determine the scope of your project, and the configuration
requirements for a successful deployment.

Are you creating a new application or integrating the module into an existing
application?
Most applications can use the Sample Add-On Instruction or Sample Ladder Logic
without any modification.

Which slot number in the chassis does the MVI69E-MBS module occupy?
For communication to occur, you must enter the correct slot number in the sample
program.

Are the Studio 5000 and RSLinx software installed?
RSLogix and RSLinx are required to communicate to the CompactLogix or
MicroLogix 1500-LRP processor.

How many words of data do you need to transfer in your application (from
CompactLogix or MicroLogix 1500-LRP to Module / to CompactLogix or MicroLogix
1500-LRP from Module)?

Is this module replacing an existing legacy MVI69-MCM module (refer to section
Legacy Mode on page 76)?
1.3

Package Contents

The following components are included with your MVI69E-MBS module, and are all
required for installation and configuration.
Important: Before beginning the installation, please verify that all of the following items are present.
Part Name
Qty.
MVI69E-MBS Module
1
Adapter Cable
2
Screw Terminal
2
Adapter
If any of these components are missing, please contact ProSoft Technology Technical
Support for replacement parts.
ProSoft Technology, Inc.
Part Number Part Description
MVI69E-MBS Modbus Serial Enhanced Communication
Module
Cable #14 RJ45 to DB9 Male Adapter cable. For DB9
connection to module's serial application
ports
1454-9F DB9 female to 9-pin screw terminal. Used
for RS422 or RS485 connections to Port 1
and 2 of the module
