MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module

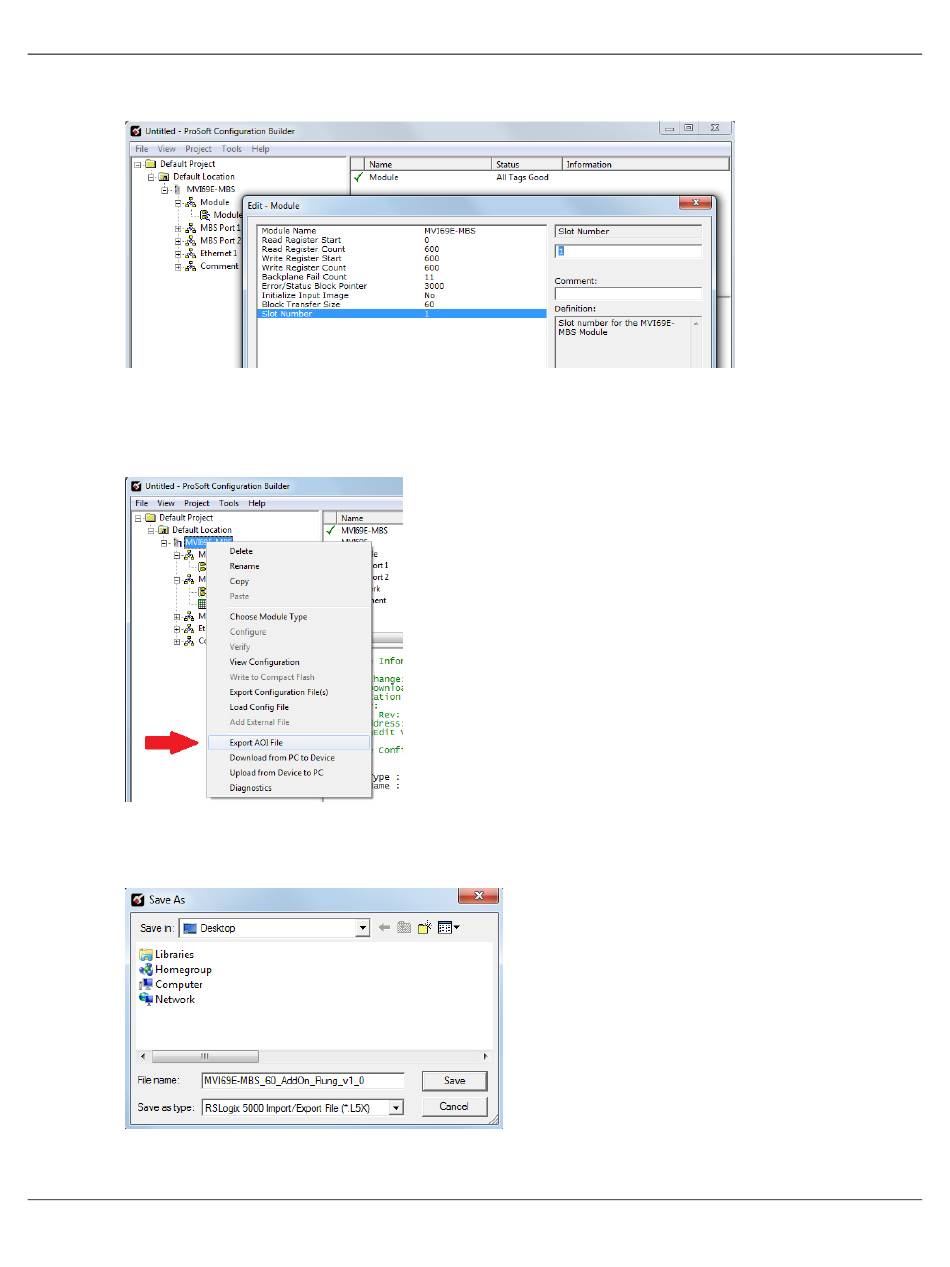

3 Edit the Slot Number indicating where the module is placed in the 1769 bus.
Click OK to close the Edit – Module dialog box. The .L5X file is now ready to be
4
exported to the PC/Laptop.
5 Right-click the MVI69E-MBS icon in the project tree and choose E
6 Save the .L5X file to the PC/Laptop in an easily found location, such as Windows
Desktop.
