6.4.3 Synchronizing the IP Settings from the Processor to the MVI69E-MBS

This section covers the process to send the IP settings from the processor to the
MVI69E-MBS.

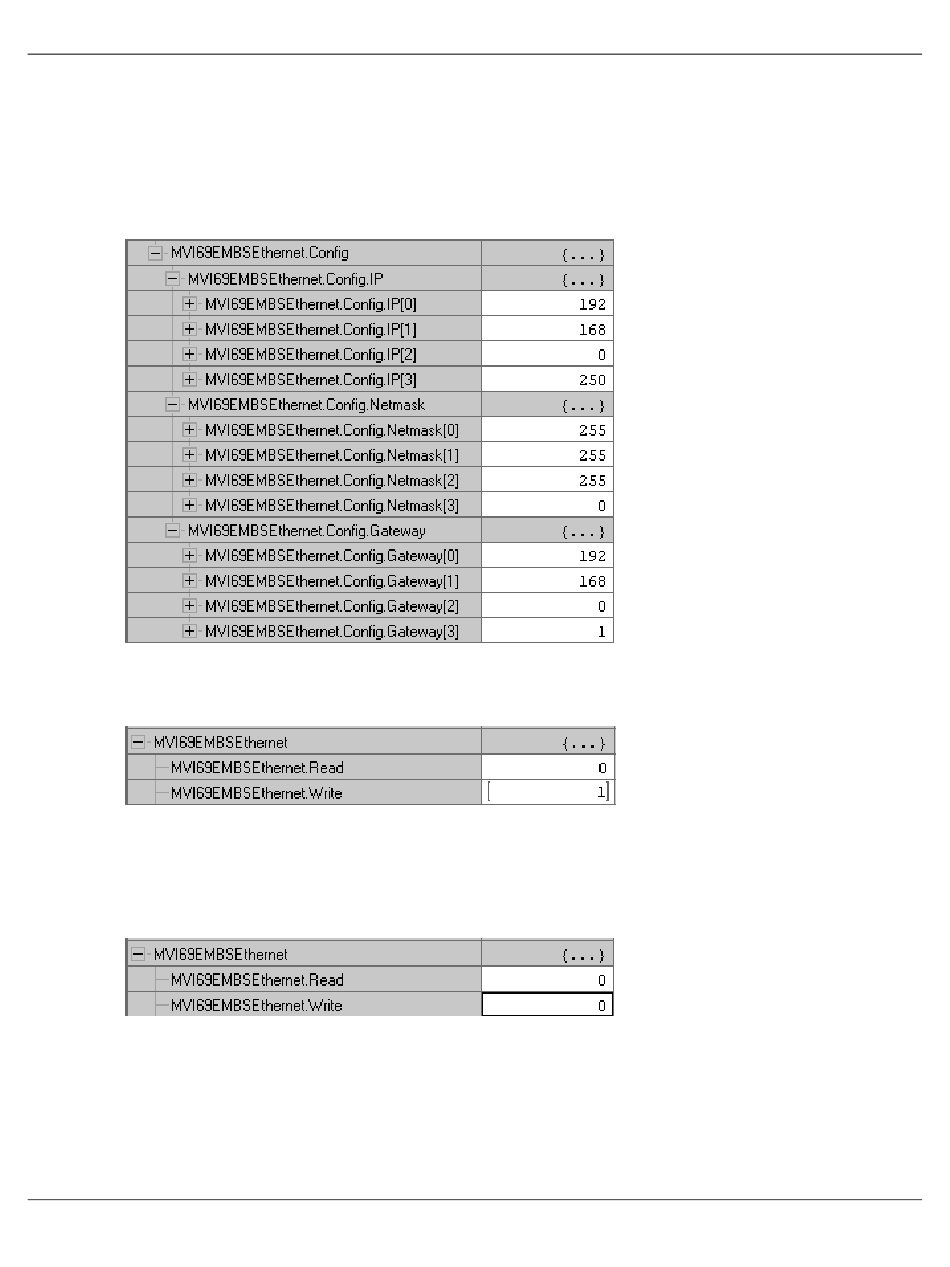

1 Populate the IP settings in the MVI69EMBSEthernet.Config tag:
Set the MVI69EMBSEthernet.Write bit to '1' to trigger the IP settings write operation.
2
The MVI69EMBSEthernet.Write bit will automatically reset to '0' once the operation
3
is concluded.
