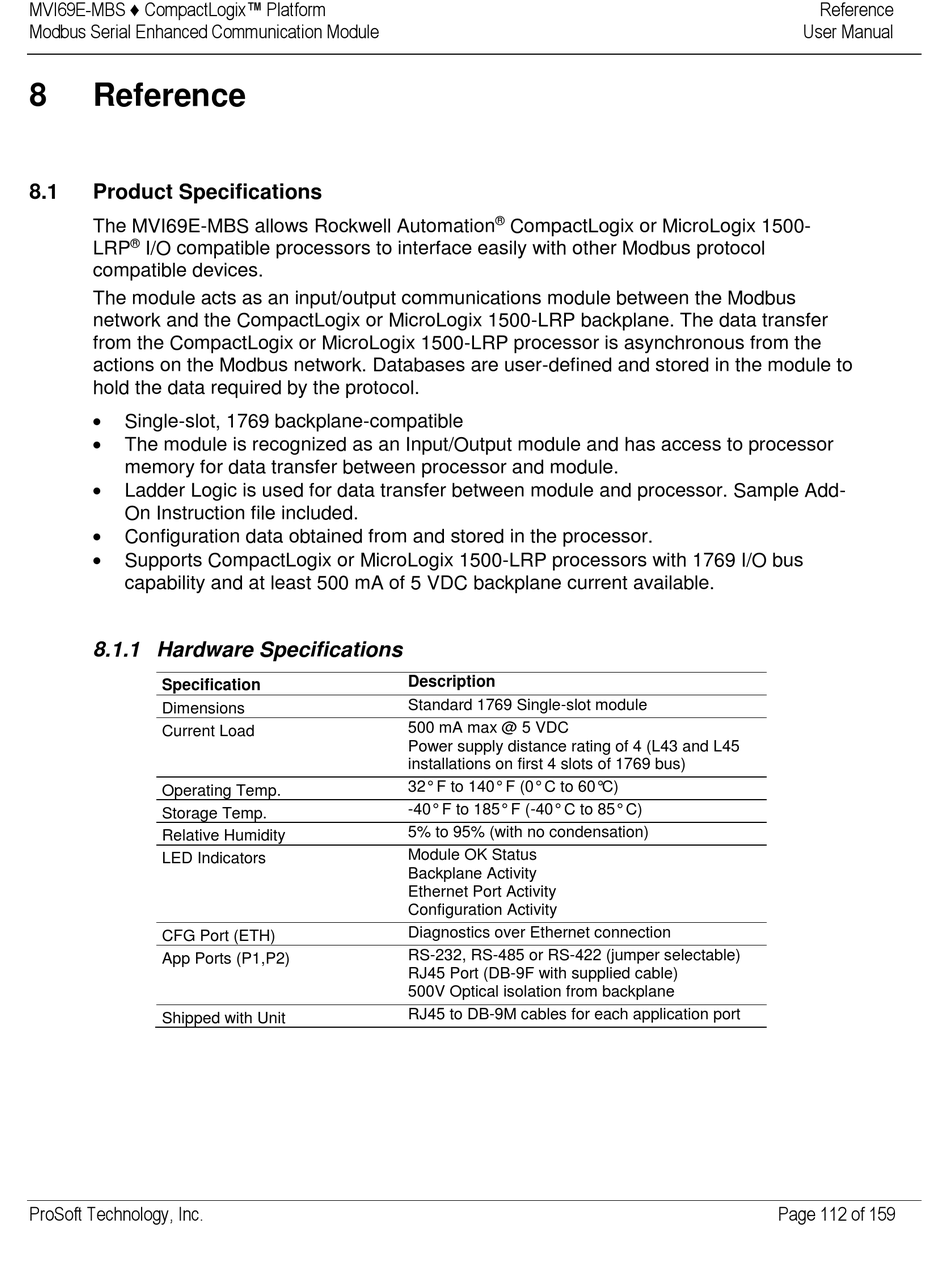

MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module
8

Reference

8.1

Product Specifications

The MVI69E-MBS allows Rockwell Automation
®
LRP I/O compatible processors to interface easily with other Modbus protocol
compatible devices.
The module acts as an input/output communications module between the Modbus
network and the CompactLogix or MicroLogix 1500-LRP backplane. The data transfer
from the CompactLogix or MicroLogix 1500-LRP processor is asynchronous from the
actions on the Modbus network. Databases are user-defined and stored in the module to
hold the data required by the protocol.

Single-slot, 1769 backplane-compatible

The module is recognized as an Input/Output module and has access to processor
memory for data transfer between processor and module.

Ladder Logic is used for data transfer between module and processor. Sample Add-
On Instruction file included.

Configuration data obtained from and stored in the processor.

Supports CompactLogix or MicroLogix 1500-LRP processors with 1769 I/O bus
capability and at least 500 mA of 5 VDC backplane current available.

8.1.1 Hardware Specifications

Specification
Dimensions
Current Load
Operating Temp.
Storage Temp.
Relative Humidity
LED Indicators
CFG Port (ETH)
App Ports (P1,P2)
Shipped with Unit
ProSoft Technology, Inc.
®
CompactLogix or MicroLogix 1500-
Description
Standard 1769 Single-slot module
500 mA max @ 5 VDC
Power supply distance rating of 4 (L43 and L45
installations on first 4 slots of 1769 bus)
32° F to 140° F (0° C to 60°C)
-40° F to 185° F (-40° C to 85° C)
5% to 95% (with no condensation)
Module OK Status
Backplane Activity
Ethernet Port Activity
Configuration Activity
Diagnostics over Ethernet connection
RS-232, RS-485 or RS-422 (jumper selectable)
RJ45 Port (DB-9F with supplied cable)
500V Optical isolation from backplane
RJ45 to DB-9M cables for each application port
