Outrigger Control Manifold; Description; Maintenance - Manitowoc Grove TMS700E Service And Maintenance Manual

HYDRAULIC SYSTEM

OUTRIGGER CONTROL MANIFOLD

Description

There are two outrigger control manifolds utilized on the
crane, one for the front outriggers (Figure 2-25) and one for
the rear outriggers (Figure 2-26). The front manifold consists
of five normally closed two position two way solenoid valves
and the rear consists of four normally closed two position two
way solenoid valves. They are mounted inside the frame of
their respective outrigger box.
When energized, the solenoid shifts the spool to open
allowing extension or retraction of the outrigger cylinders.

Maintenance

Removal
1. Tag and disconnect the hydraulic lines to the solenoid
valves; cap all lines and openings.
2. Tag and disconnect the electrical connectors.
3. Remove the bolts, nuts and washers securing the
manifold to the outrigger box; remove the manifold.
2
4
1
3
Item
1 In Port Side
2 Out Ports Side
3 Center Front Jack Cylinder
4 Left Front Extension Cylinder
2-38
2
2
7
6
5

Description

Published 01-29-2015, Control # 512-01
Inspection
Visually inspect the valves and hydraulic connections for any
evidence of leaks or other damage. Check security of the
electrical connections. Inspect the wiring for any evidence of
cracks or breaks.
Installation
1. Position the manifold on the outrigger box; secure with
the washers, nuts and bolts.
2. Connect the electrical connectors to the solenoids as
marked during removal.
3. Connect the hydraulic lines to the valves as marked
during removal.
Functional Check
Activate the hydraulic system and cycle the affected
cylinder(s) several times. Observe for proper functioning of
the affected cylinder(s). Ensure the solenoid valve hydraulic
connections are secure.
3
1
6545-2
Item
5 Left Front Jack Cylinder
6 Right Front Jack Cylinder
7 Right Front Extension Cylinder
TMS700E SERVICE MANUAL
6
4
5

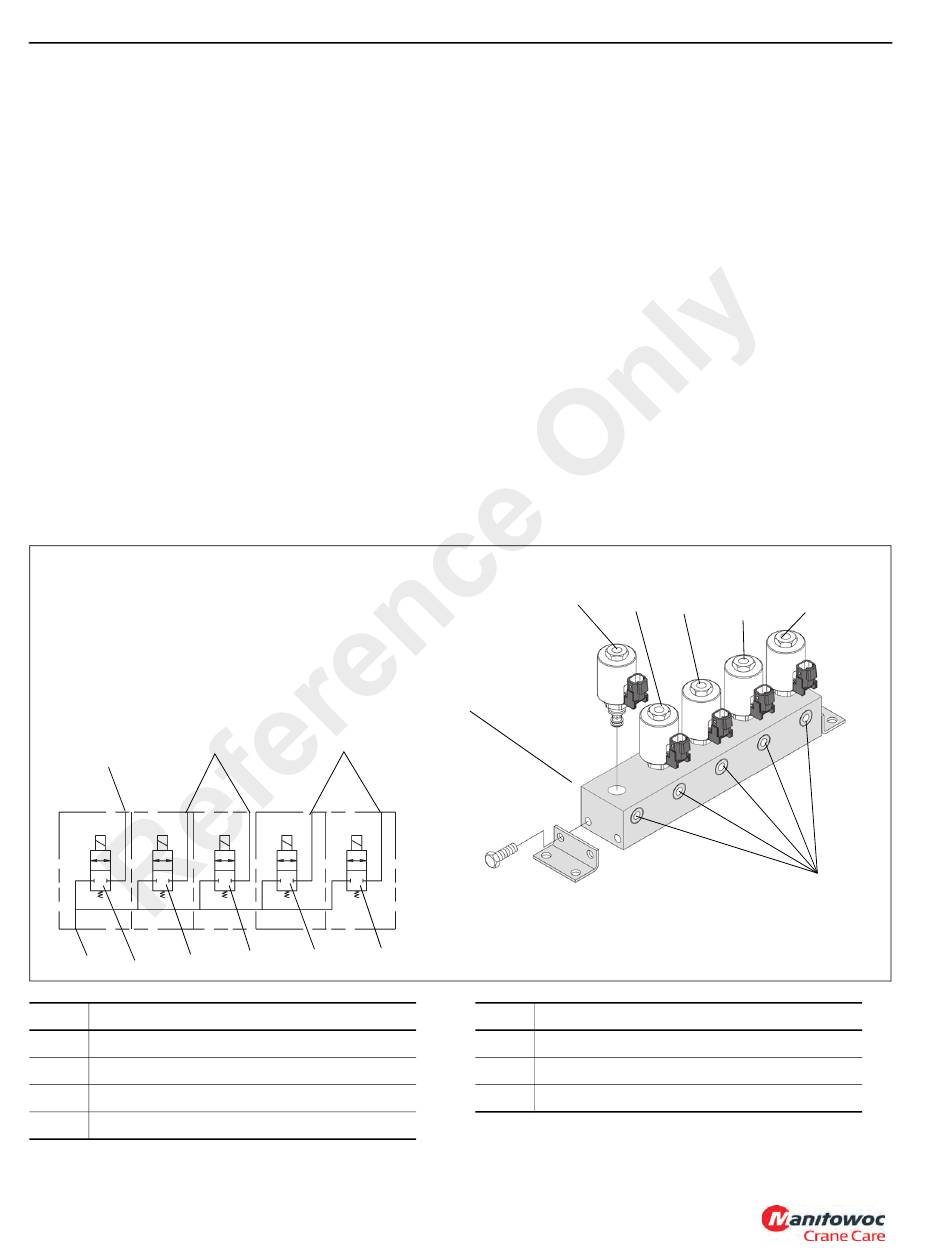

FIGURE 2-25
Description
7
2
6545-1
