BOOM
Item Description
40 Swingaway Base
41 Swingaway Stinger
42 Stinger Sheave
43 Cable Retainer Pin
44 Latch Hook
45 Spring
46 Latch Bar
Item Description
47 Boom Nose Upper Sheaves
48 Mast Assembly
49 Offset Link
50 Offset Pivot Points
51 Offset Link Pins Stowage Lugs
52 Mast Assembly Pin
53 Boom Nose Lower Sheaves
54 Swingaway Attachment Pins
Swingaway Attachment Pins
55
Stowage Lugs
56 Offset Link Pins
57 Zero Degree Offset Hole
57
4-28
DETAIL E
NOTE:
48
56
52
Published 01-29-2015, Control # 512-01
40
Offset shown at 25 degrees. To obtain 45 degree offset,
remove pin (item 56) and stow in lug.
47
51
49
53
50
TMS700E SERVICE MANUAL
41
43
45
54
55
54

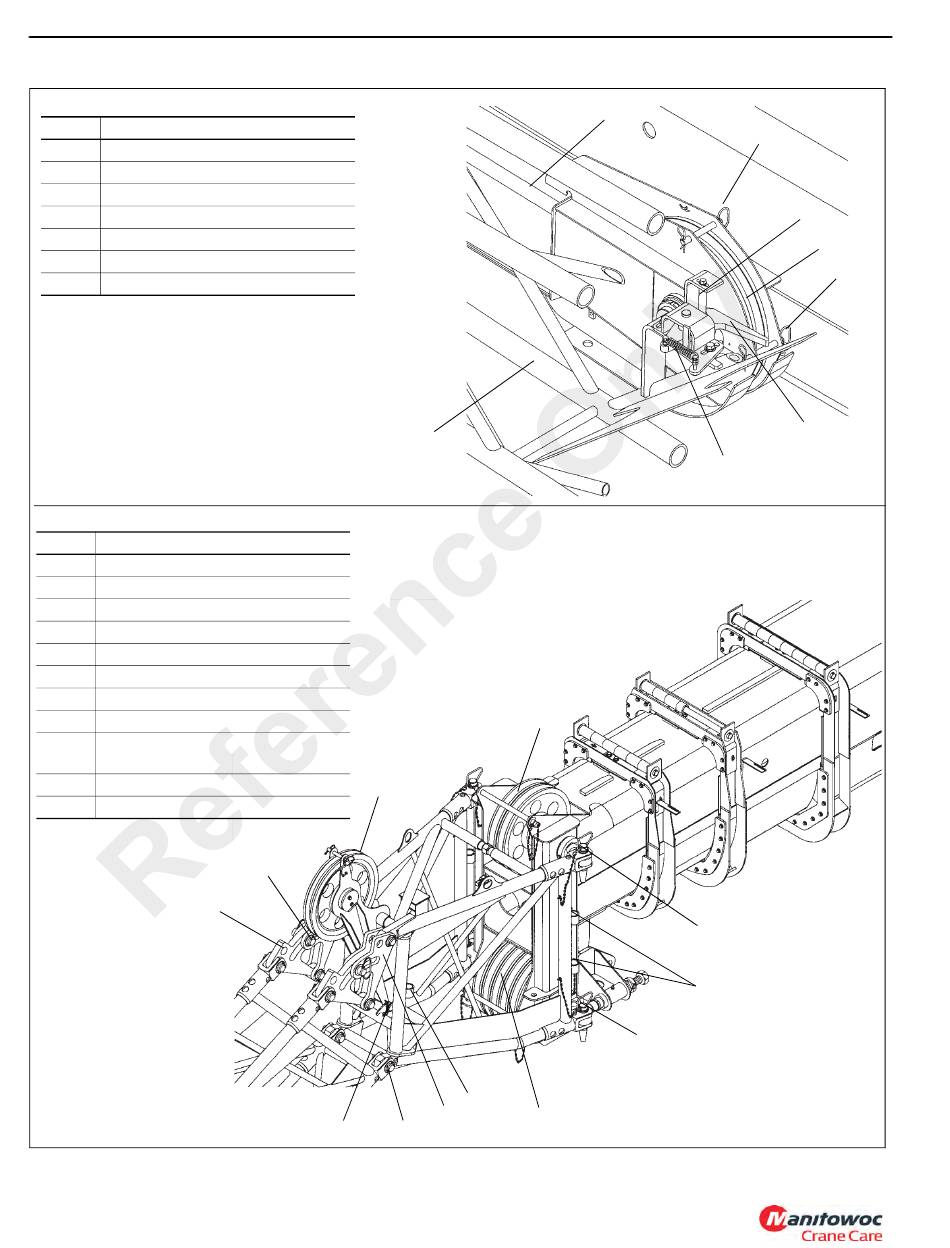

FIGURE 4-5 continued
46
42
43
