HYDRAULIC SYSTEM

PRIORITY FLOW DIVIDER VALVE

Description

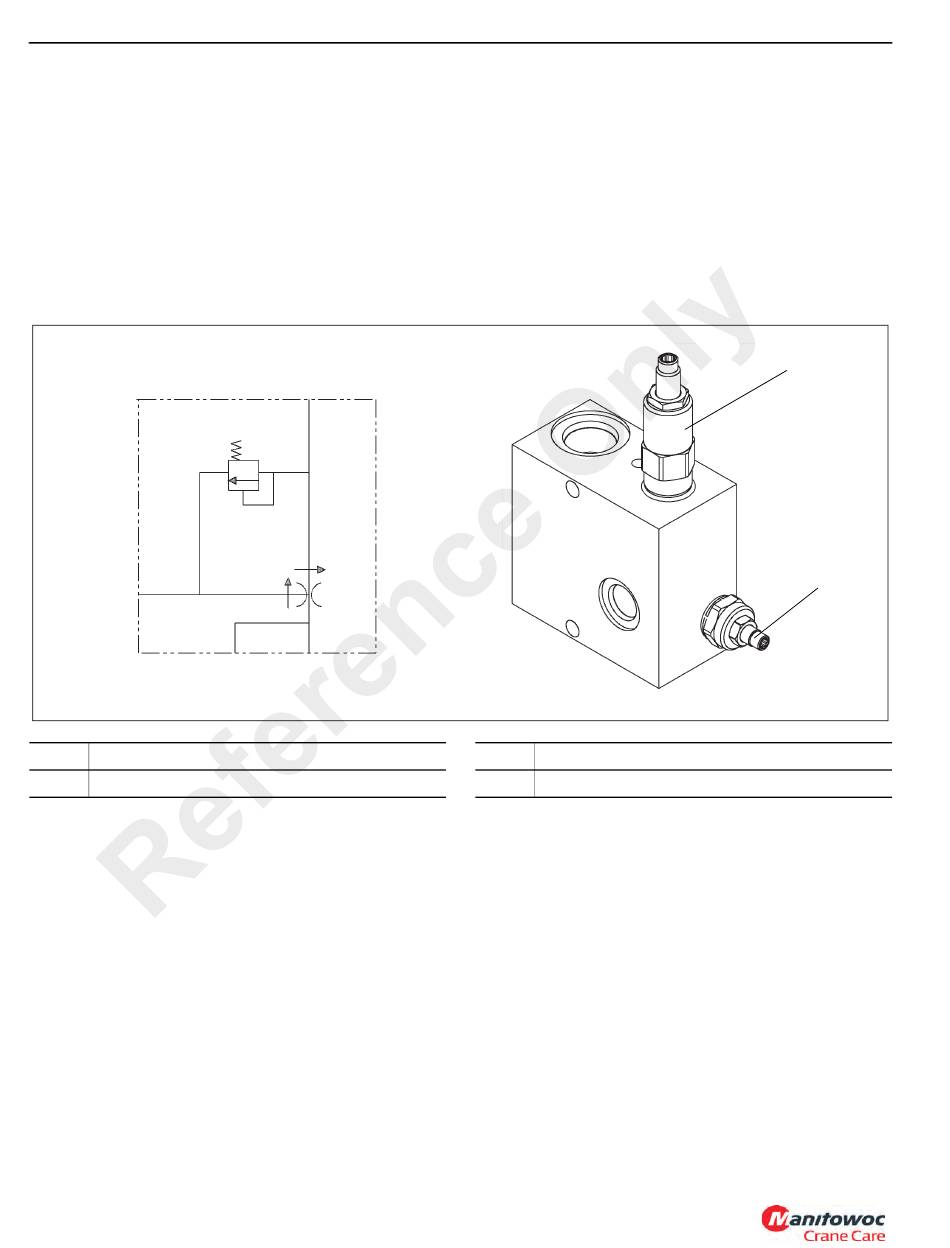

The priority flow divider (Figure 2-37) is located on the right
inside carrier frame forward of the front outrigger box. It
provides a c ontrolled flow of oil to the optional air
conditioning compressor motor. The excess flow is passed
via a hydraulic swivel to the inlet of the swing directional
control valve.
On units not equipped with air conditioning, the regulated
flow is returned to the hydraulic reservoir.
1500 PSI
T
6872-2
Item
1 Adjustable Relief Valve (103.42 bar [1500 PSI])
2-50
A
10 GPM
P

Description

Published 01-29-2015, Control # 512-01
TMS700E SERVICE MANUAL

Maintenance

Removal
1. Tag and disconnect the hydraulic lines from the valve
and cap or plug all openings and remove valve.
Installation
1. Connect the hydraulic lines as tagged during removal
2. Check the valve and hydraulic connections for leaks.
Make repairs as needed.
Item
2 Adjustable Bypass Flow (37.85 lpm [10GPM])
1
2
6872-1
FIGURE 2-37
Description
