4. Rotate the adjusting hex nut clockwise until the slack
adjuster arm hole lines up with the clevis hole (see
Figure 8-52).
5. Install the clevis pin without the cotter pin at this time.
CAUTION
Excessive positioning force may damage control arm.
Most adjusters will be equipped with an installation
indicator which must fall within the slot for proper
installation. Incorrect control arm position can cause tight
or dragging brakes.
6. Rotate the control arm counterclockwise towards the air
chamber until it comes to a definite internal stop. If
necessary, use a plastic mallet to tap the control arm into
position (see Figure 8-53).
Control
Arm
Install
Loosely
Grove
7.
Adjusting
8.
Nut
9.
10. Install the clevis pin and cotter pin.
Adjust Until
Holes Align

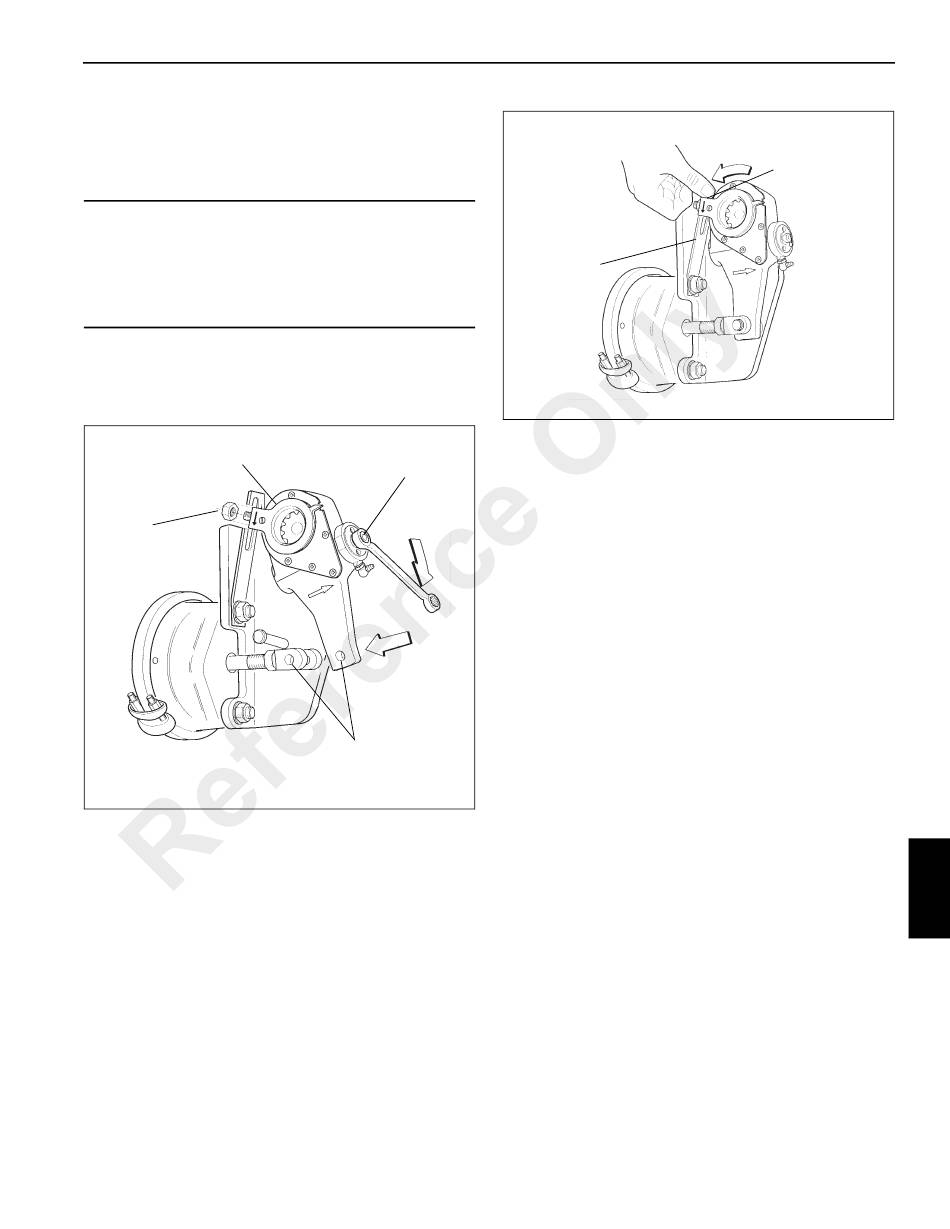

FIGURE 8-52
Published 01-29-2015, Control # 512-01
Mounting
Bracket
Tighten control arm anchor and bracket fastener.
Adjust the brakes by turning the adjusting hex clockwise
until the lining contacts the drum. Then rotate the
adjusting hex counterclockwise 1/2 turn. A minimum of
17.6 Nm (13 lb-ft) is necessary to overcome the clutch
and a ratcheting sound will be heard.
With the brakes released, verify that the installation
indicator is within the slot. Remove the clevis pin. The
clevis hole and adjuster hole should remain in
alignment. If the air chamber clevis pulls into the air
chamber, repeat the installation procedure.
