Manitowoc Grove TMS700E Service And Maintenance Manual page 140

BOOM
45
NOTE: Section 2 extend cable anchor plate not shown
for clarity.
Item
32 Bottom Wear Pad and Shims
33 Rear Side Wear Pads
34 Top Rear Wear Pads
35 Retract Cable Sheave
36 Retract Cable Sheave Shaft
37 Retract Cable Shave Mount
38 Upper Cylinder Barrel Mounting Plate
39 Upper Cylinder Rod Mounting Plate
40 Lower Cylinder Barrel Mounting Plate
41 Lower Cylinder Rod Mounting Plate
42 Pusher Rod
43 Cam Operated Check Valve
44 Boom Extension Alignment Device
45 Section 1
46 Trigger Weldment
4-6
60
46
47
48
49
Description
Published 01-29-2015, Control # 512-01
50
Item
47 Grease Liner
48 Port A
49 Port B
50 Pusher Bar
51 Port B
52 Port A
53 Port A
54 Port B
55 Tapped Pusher Bar
56 Port C
57 Port R
58 Port P
59 Section 2
60 Wear Pad
TMS700E SERVICE MANUAL
59
58
57
56
55
54
53
52
51

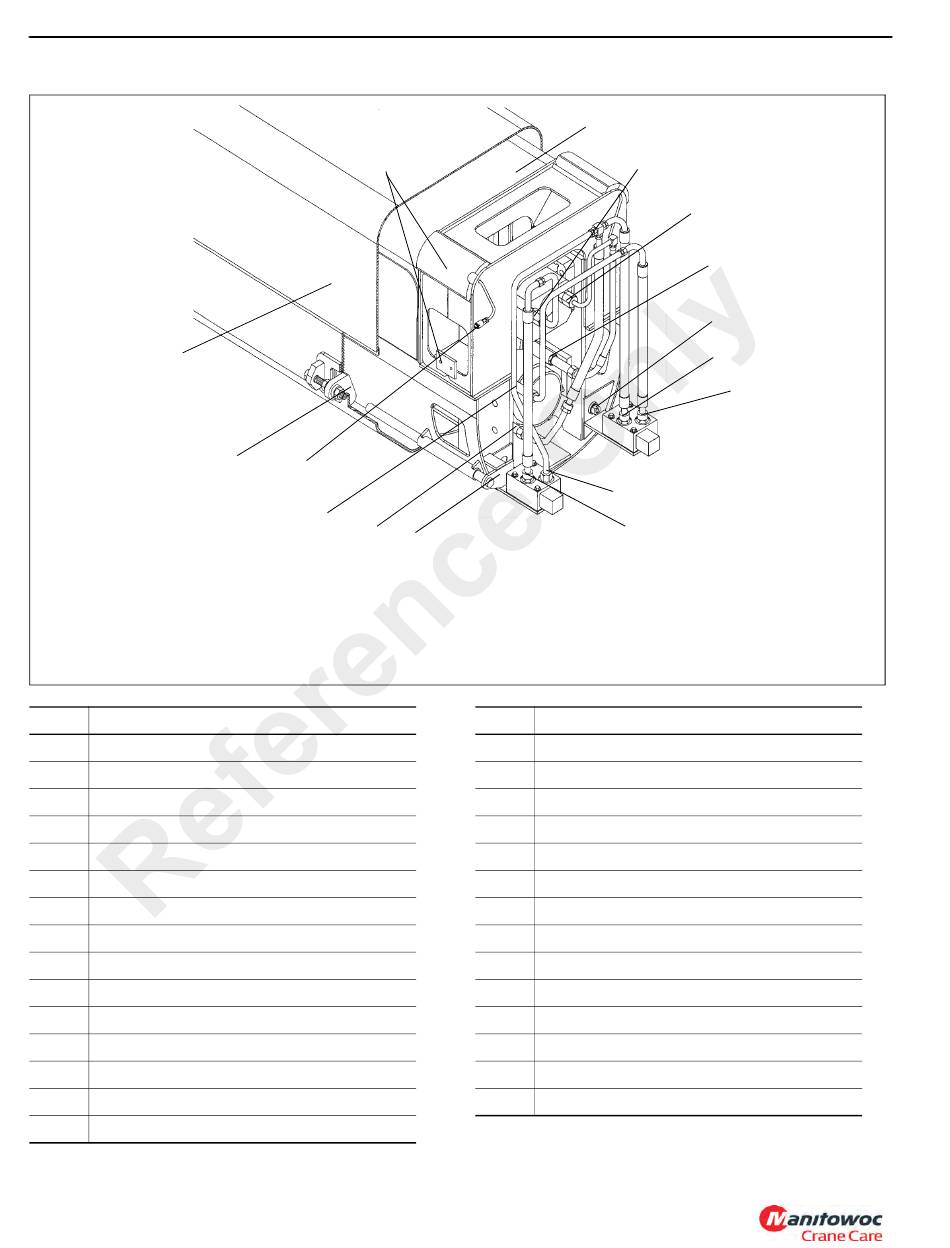

FIGURE 4-1 continued
Description
