RT9130E-2 SERVICE MANUAL

OUTRIGGER CONTROL MANIFOLD

Description

There are two outrigger control manifolds utilized on the
crane, one for the front outriggers and one for the rear
outriggers Figure 2-33. Each manifold consists of four
normally closed two position two way solenoid valves. They
are mounted inside the frame on their respective outrigger
box.
When energized, the solenoid shifts the spool to open
allowing extension or retraction of the outrigger cylinders.

Maintenance

Removal
1. Tag and disconnect the hydraulic lines to the solenoid
valves; cap all lines and openings.
2. Tag and disconnect the electrical connectors.
3. Remove the bolts and nuts securing the manifold to the
outrigger box; remove the manifold.
3
2
1
Item
1 In Port
2 Left Front Extension Cylinder
3 Left Front Stabilizer Cylinder
Grove
5
4
6109-1

Description

Published 11-22-2016, Control # 345-12
Inspection
Visually inspect the valves and hydraulic connections for any
evidence of leaks or other damage. Check security of the
electrical connections. Inspect the wiring for any evidence of
cracks or breaks.
Installation
1. Position the manifold on the mounting; secure with the
nuts and bolts.
2. Connect the electrical connectors to the solenoids as
marked during removal.
3. Connect the hydraulic lines to the valves as marked
during removal.
Functional Check
Activate the hydraulic system and cycle the affected
cylinder(s) several times. Observe for proper functioning of
the affected cylinder(s). Ensure the solenoid valve hydraulic
connections are secure.
2
1
Item
4 Right Front Stabilizer Cylinder
5 Right Front Extension Cylinder
HYDRAULIC SYSTEM
7319
5
4
3

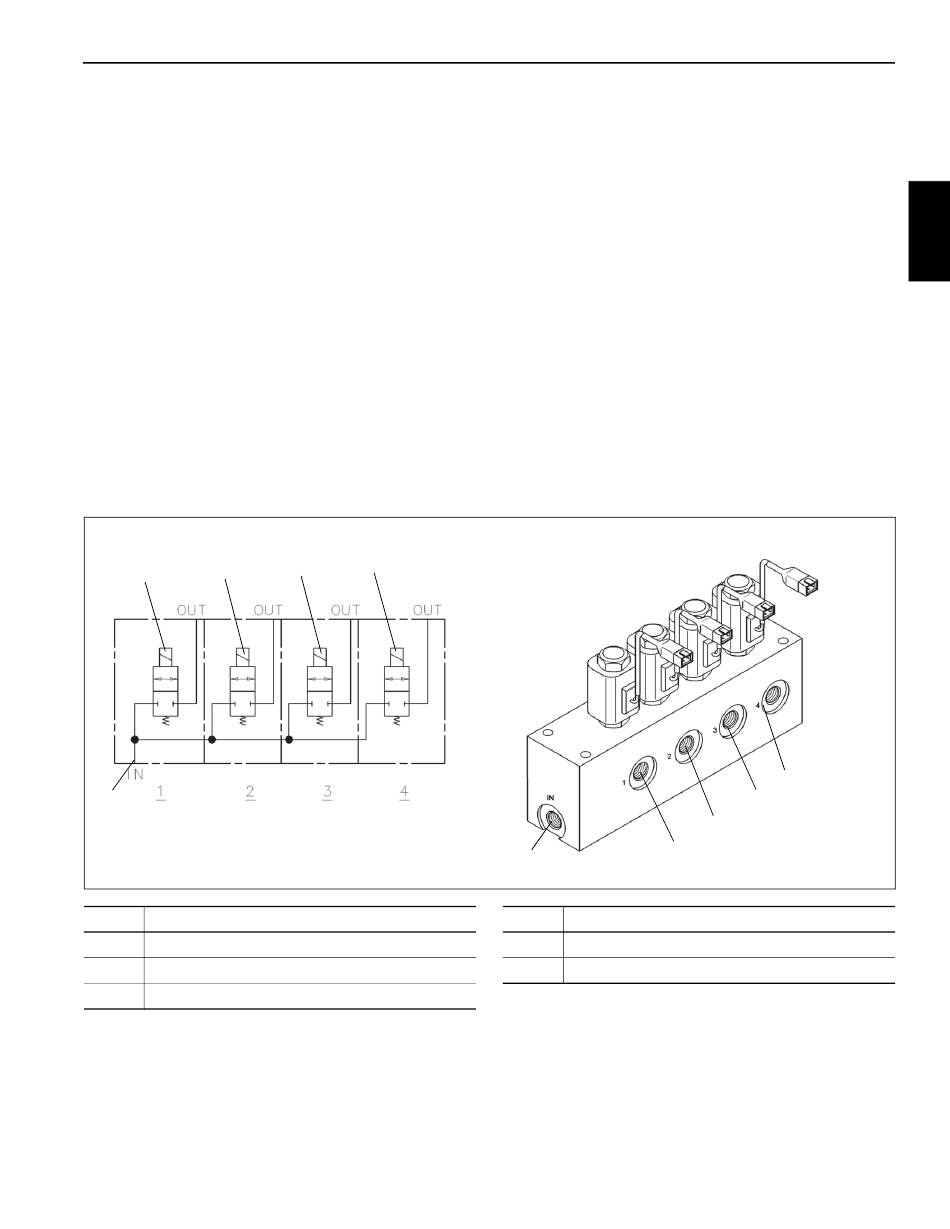

FIGURE 2-33
Description
2-57
