TMS700E SERVICE MANUAL
Fuse Amp
Crane Function SOLS, Hyd Boost
F14 10
SOL
F15 5 Main, Aux Hoist Rotation Indicators
Heater, A/C Evap Fans, A/C Clutch
F16 25
Solenoid
F17 30 A/C Condenser Fan Motor
Beacon LT, Wiper, Washer, Switch
F18 10
LEDS
F19 5 Buzzer, DEF Level Gauge
Outriggers, Counterweight
F20 20
Solenoids
Grove

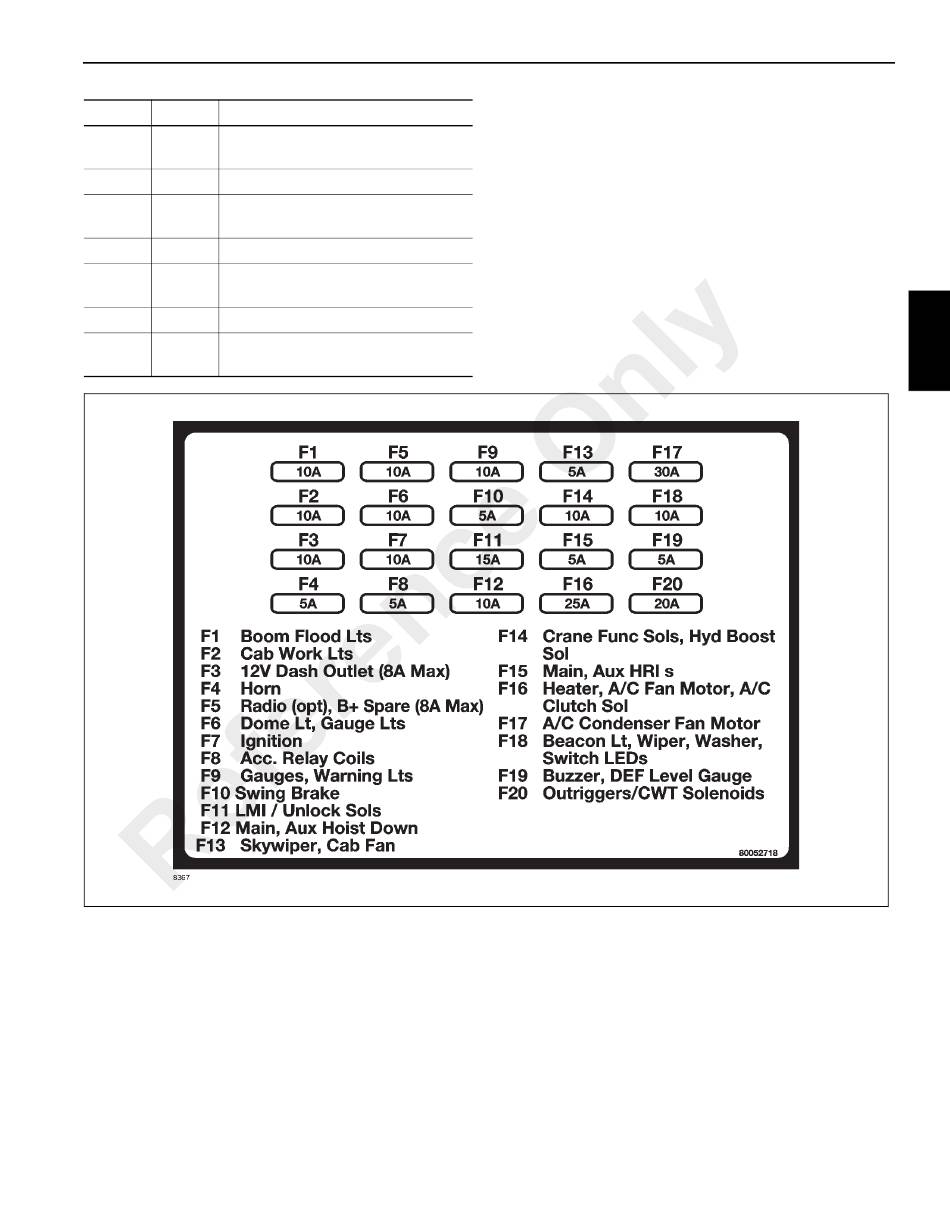

Fuse Assignment
Published 01-29-2015, Control # 512-01
ELECTRIC SYSTEM
