TMS700E SERVICE MANUAL
7

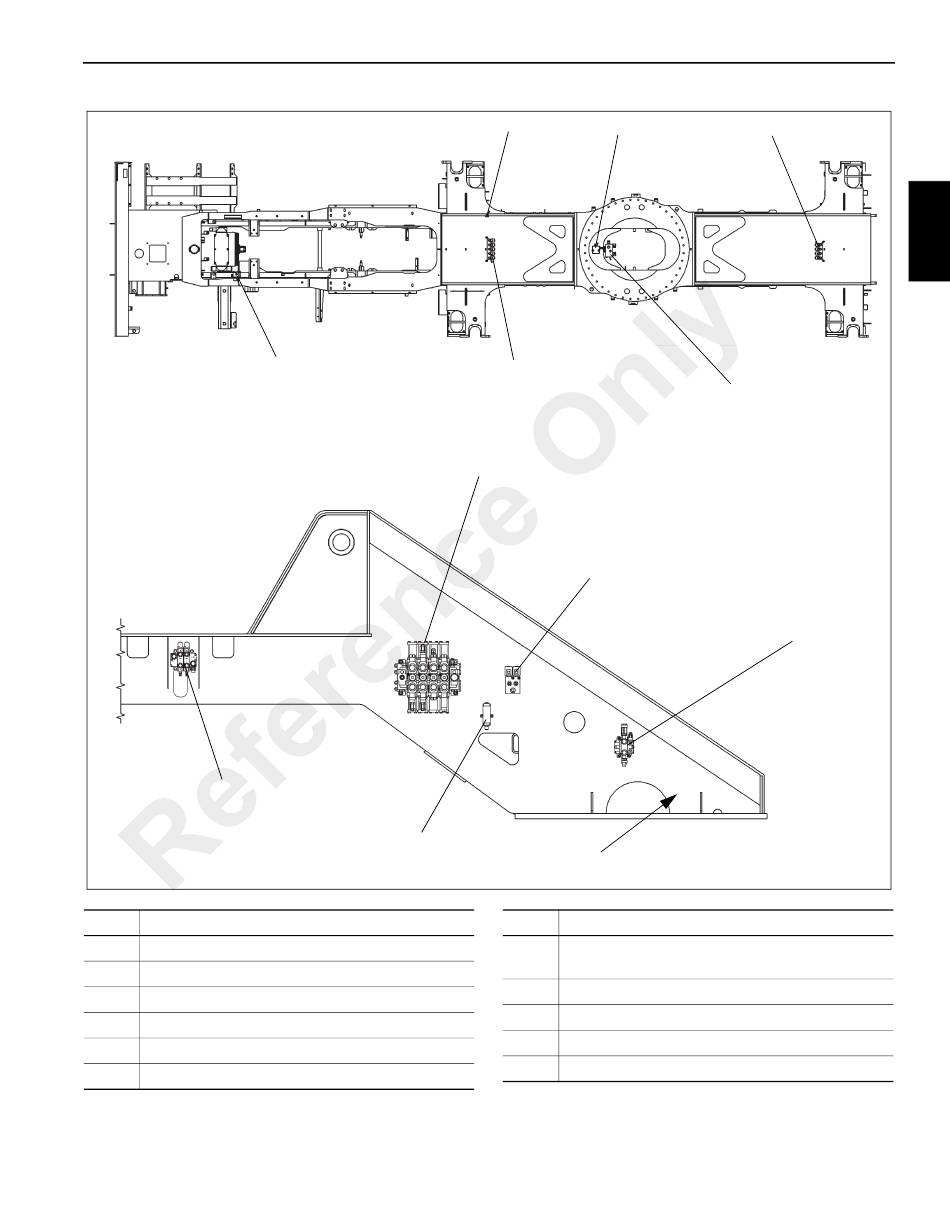

Item
1 Auxiliary Cooler Control Valve
2 Outrigger Selector Valve
3 Rear Outrigger Manifold Valve
4 Center Jack Relief Valve
5 Flow Control Valve
6 Front Outrigger Manifold Valve (5 section)
Grove
1
CARRIER
11
SUPERSTRUCTURE
Description
Published 01-29-2015, Control # 512-01
4
5
6
8
9
Optional Swing Brake Release
Valve may be located here
Item
Counterweight Removal Directional Control
7
Valve
8 Telescope/Lift/Hoist Directional Control Valve
9 Swing Brake & Armrest L/O Manifold
10 Swing Control Valve
11 Accumulator
HYDRAULIC SYSTEM
3
2
8031
10
6790
FIGURE 2-6
Description
2
