HYDRAULIC SYSTEM
Item
1 Nut
2 Washer
3 Capscrew
4 Rod
5 Wiper Ring
6 Seal
7 O-ring
8 Head
9 Wear Ring
10 Backup Ring
2-80
17
16
15
14
4
Description
Published 01-29-2015, Control # 512-01
18
19
13
12
11
10
9
3
Item
11 O-ring
12 Piston
13 O-ring
14 Seal
15 Wear Ring
16 Locknut
17 Bleeder Plug
18 Barrel
19 Holding Valve
TMS700E SERVICE MANUAL
7
8
6
5
2
1
2
Description

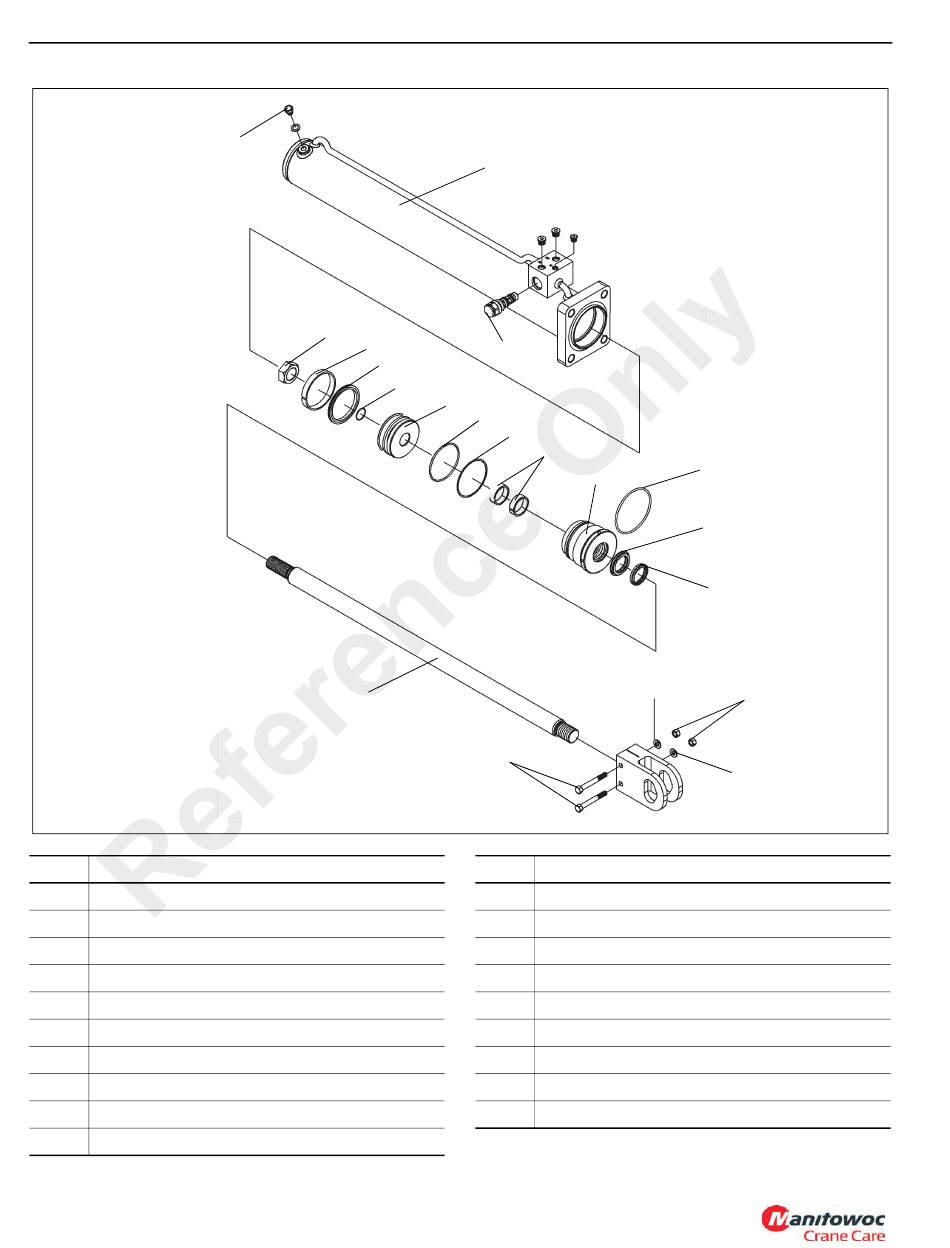

FIGURE 2-61
