TMS700E SERVICE MANUAL
Pump #1
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gear
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Output - @ engine speed 1800 rpm
Section 1 . . . . . . . . . . . . 184.3 lpm (48.7 gpm)
Section 2 . . . . . . . . . . . . . 70.4 lpm (18.6 gpm)
Section 3 . . . . . . . . . . . . . 88.9 lpm (23.5 gpm)
Pump #2
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gear
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Output - @ 1800 rpm
Section 1 . . . . . . . . . . . . . 88.2 lpm (23.3 gpm)
Priority flow of 37.9 lpm (10 gpm) at 2175 psi
Pump #3
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gear
Grove
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Output - @ 1800 rpm

Hoists

Drum Dimensions
Cable
Max. Permissible Line Pull (6x36)
Hoist Motor Displacement
Published 01-29-2015, Control # 512-01
Section 1. . . . . . . . . . . . . .78.7 lpm (20.8 gpm)
Diameter . . . . . . . . . . . . . . . . . .381 mm (15 in)
Length. . . . . . . . . . . . . . . . .467 mm (18-3/8 in)
Diameter . . . . . . . . . . . . . . . . . . 19 mm (3/4 in)
Length-Main . . . . . . . . . . . . . . . .153 m (500 ft)
Length-Aux. . . . . . . . . . . . . . . . .153 m (500 ft)
. . . . . . . . . . . . . . . . . . . . . 90.1 kN (20,250 lb)
3 3
. . . . . . . .110 cm (6.7 in ) per revolution (low)
3 3
. . . . . . . . 61 cm (3.7 in ) per revolution (high)
INTRODUCTION
1

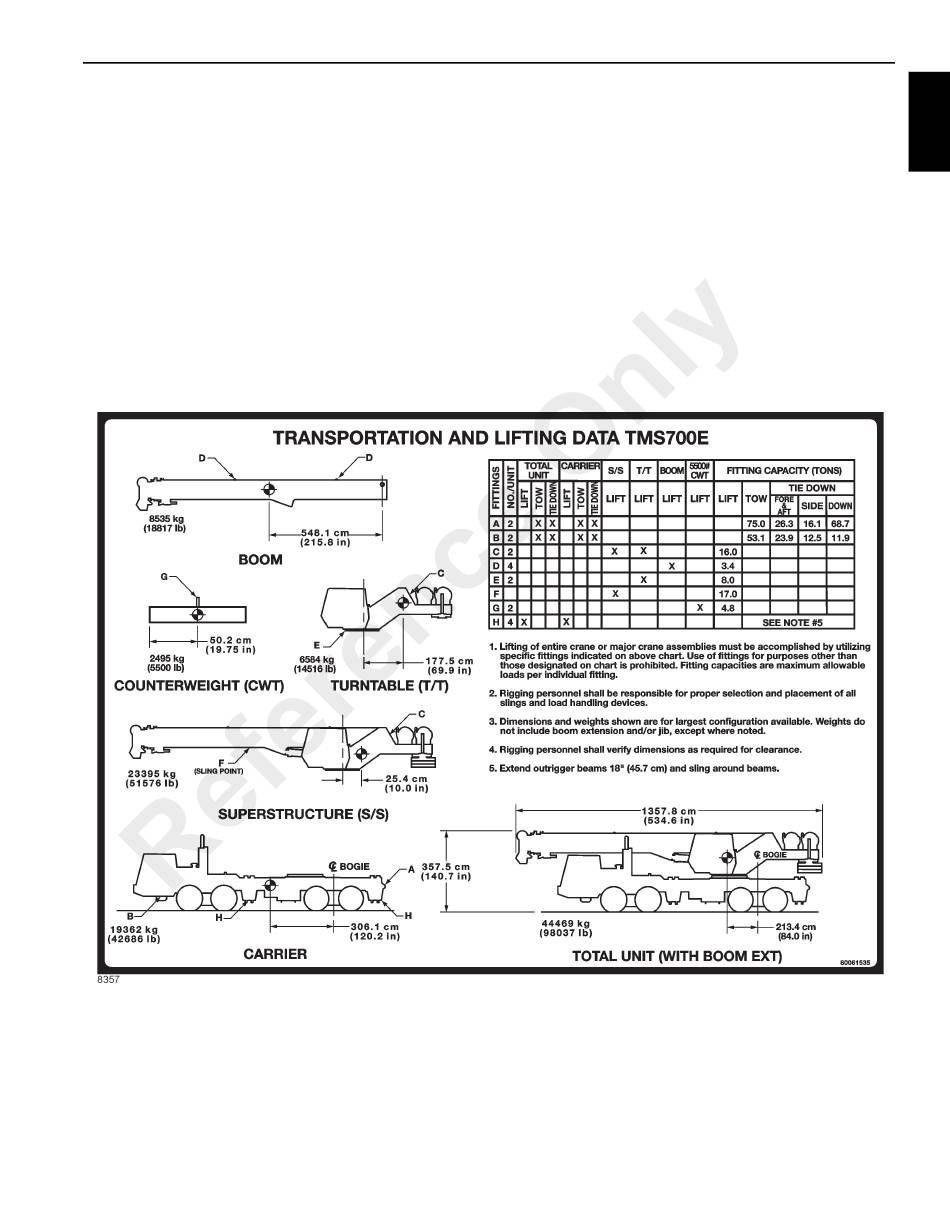

FIGURE 1-1
1-3
