Manitowoc Grove TMS700E Service And Maintenance Manual page 80

HYDRAULIC SYSTEM
Installation
Engage the swing lock before installing the swing brake
valve.
1. Engage the swing lock.
2. Install the brake valve and secure in place with the four
bolts, flat washers, lockwashers, and nuts.
3. Attach the hydraulic lines to the brake valve as tagged
during removal.
Item Description
1 Tank Port - To Case Drain Manifold
2 Pressure Port From Main valve
3 Regulated Output Port - To Swing Drive
2-48
DANGER
2
1
Published 01-29-2015, Control # 512-01
TMS700E SERVICE MANUAL
Functional Check
1. Start the engine and let it idle.
2. Disengage the swing lock.
3. Slowly swing the turntable.
Engage the swing lock before adjusting the swing brake
valve.
4. Test the valve by engaging the swing brake control valve
and operating the swing brake. Verify the swing brake
works when the pedal is pressed. Verify the brake is off
when the pedal is not pressed. Engage the swing lock
and make adjustments to the pedal as needed.
5. Check for leaks. Make repairs as needed.
3
3
DANGER
1
2
6140

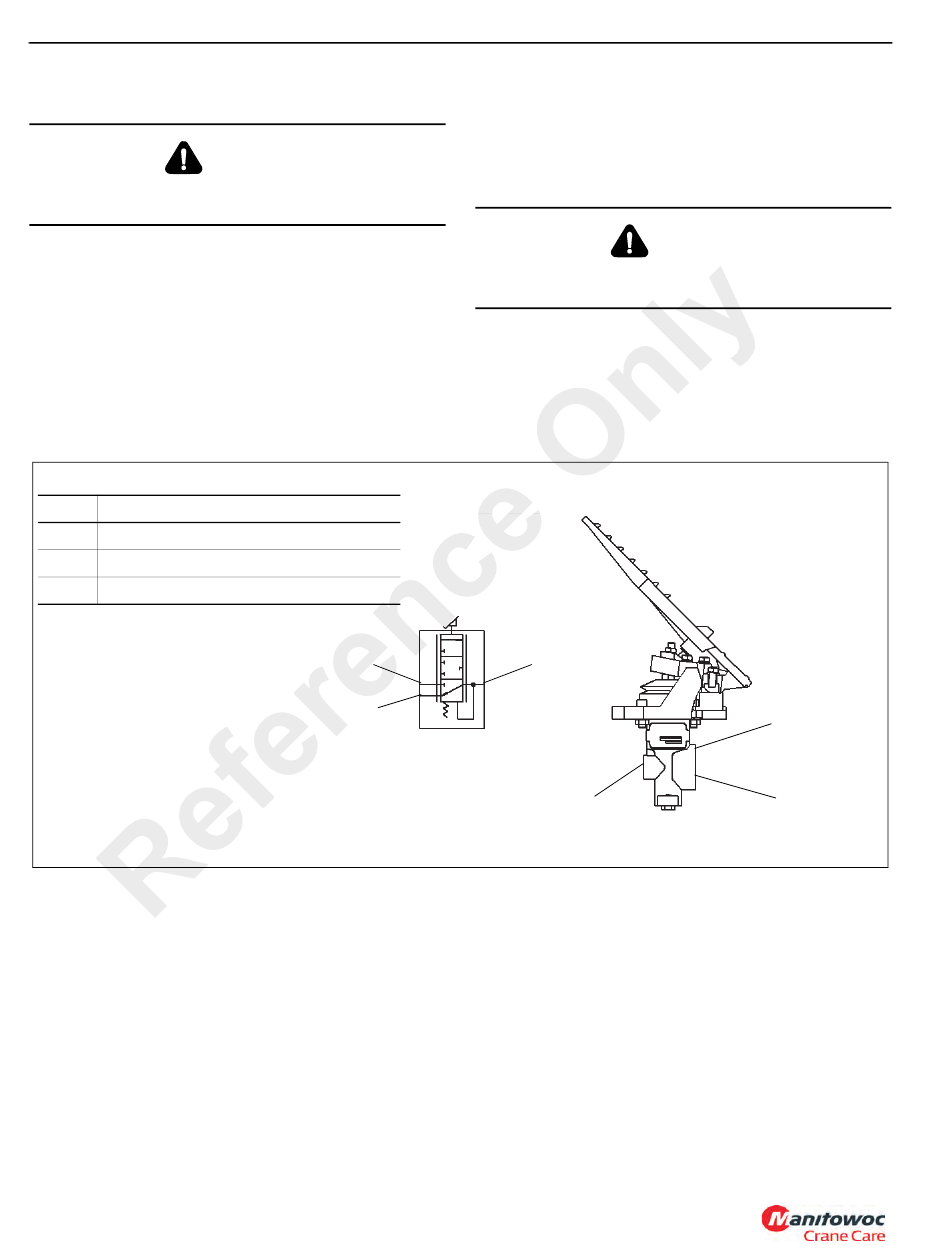

FIGURE 2-35
