UNDERCARRIAGE

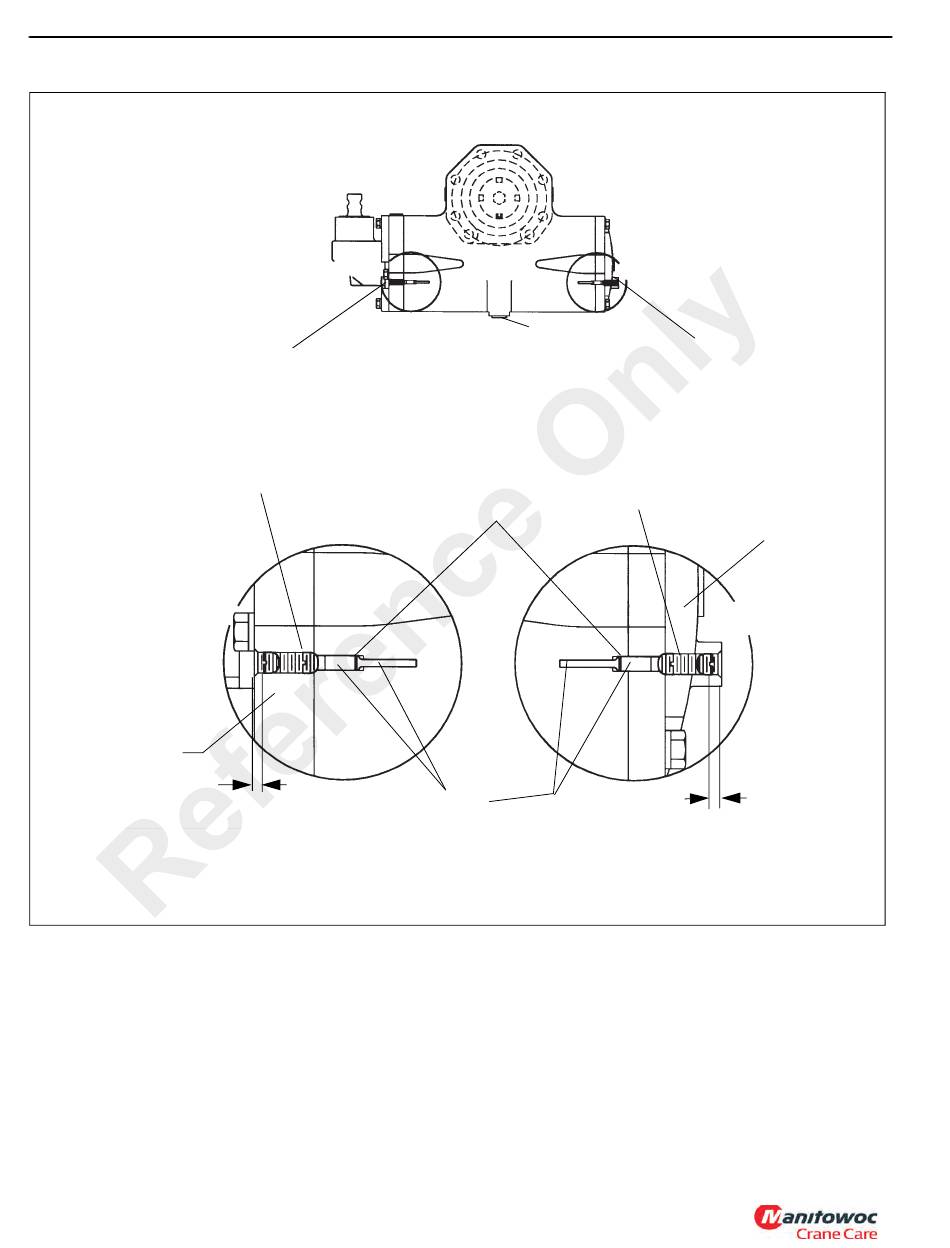

FRONT PLUNGER
ADJUST LEFT HAND TURN.
SCREW IN TO DECREASE TRAVEL.
SCREW OUT TO INCREASE TRAVEL.
PRIOR TO GEAR INSTALLATION, WIND
PLUNGER IN UNTIL IT BOTTOMS OUT
IN HOLE.
DETAIL B
HOUSING
0.16 IN (4MM) MIN. ACCEPTABLE
PLUNGER HEAD DEPTH
NOTE: PLUNGER(S) MUST NOT BE WOUND OUT BEYOND THIS
DEPTH. DAMAGE COULD RESULT.
8-10
DETAIL B
INLET GAUGE PORT
NEWER CRANES TYPICALLY HAVE A TEST
PORT ON THE LINE TO THIS PORT WHICH
ALLOWS TESTING WITHOUT LINE
DISCONNECTION. SOME OLDER CRANES
REQUIRE DISCONNECTING LINE TO
INSTALL GAUGE.
PLUNGER O-RING
PLUNGER
Published 01-29-2015, Control # 512-01
TMS700E SERVICE MANUAL
DETAIL A
REAR PLUNGER
ADJUST RIGHT HAND TURN.
SCREW IN TO DECREASE TRAVEL.
SCREW OUT TO INCREASE TRAVEL.
PRIOR TO GEAR INSTALLATION,
WIND PLUNGER IN UNTIL IT
BOTTOMS OUT IN HOLE.
HOUSING
DETAIL A
0.16 IN (4MM) MIN. ACCEPTABLE
PLUNGER HEAD DEPTH
FIGURE 8-6
