RT765E-2 OPERATOR MANUAL
Pump #3
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gear
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Output - @ loaded engine speed
Section 1 . . . . . . . . . . . . . . 19.8 gpm (75 l/min)

Hoists

Drum Dimensions
Diameter . . . . . . . . . . . . . . . . . 15 in (381 mm)
Length (Standard) . . . . . . . . 18.38 in (467 mm)
Cable
Diameter . . . . . . . . . . . . . . . . . 0.75 in (19 mm)
Length-Main . . . . . . . . . . . . . . . 650 ft (198 m)
Length-Aux.. . . . . . . . . . . . . . . . 653 ft (199 m)
7919
GROVE
Max. Permissible Line Pull (6x36)
. . . . . . . . . . . . . . . . . . . . . . . . . 16,800 lb (74.7 kN)
Max. Single Line Speed . . . . . 500 fpm (153 m/min)
Published 9-04-2014, Control # 364-10
INTRODUCTION
1

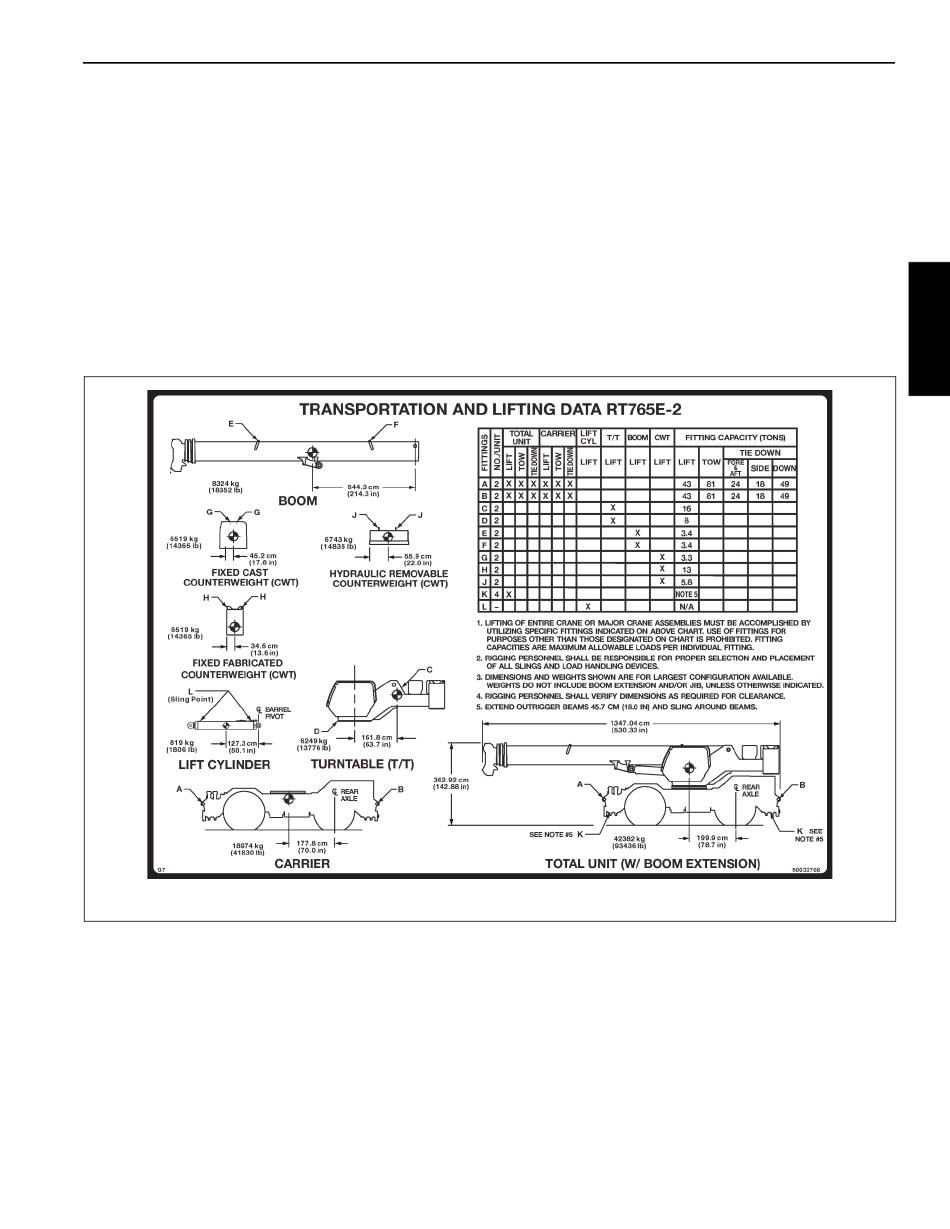

FIGURE 1-4
1-7
