Configuring the Switch

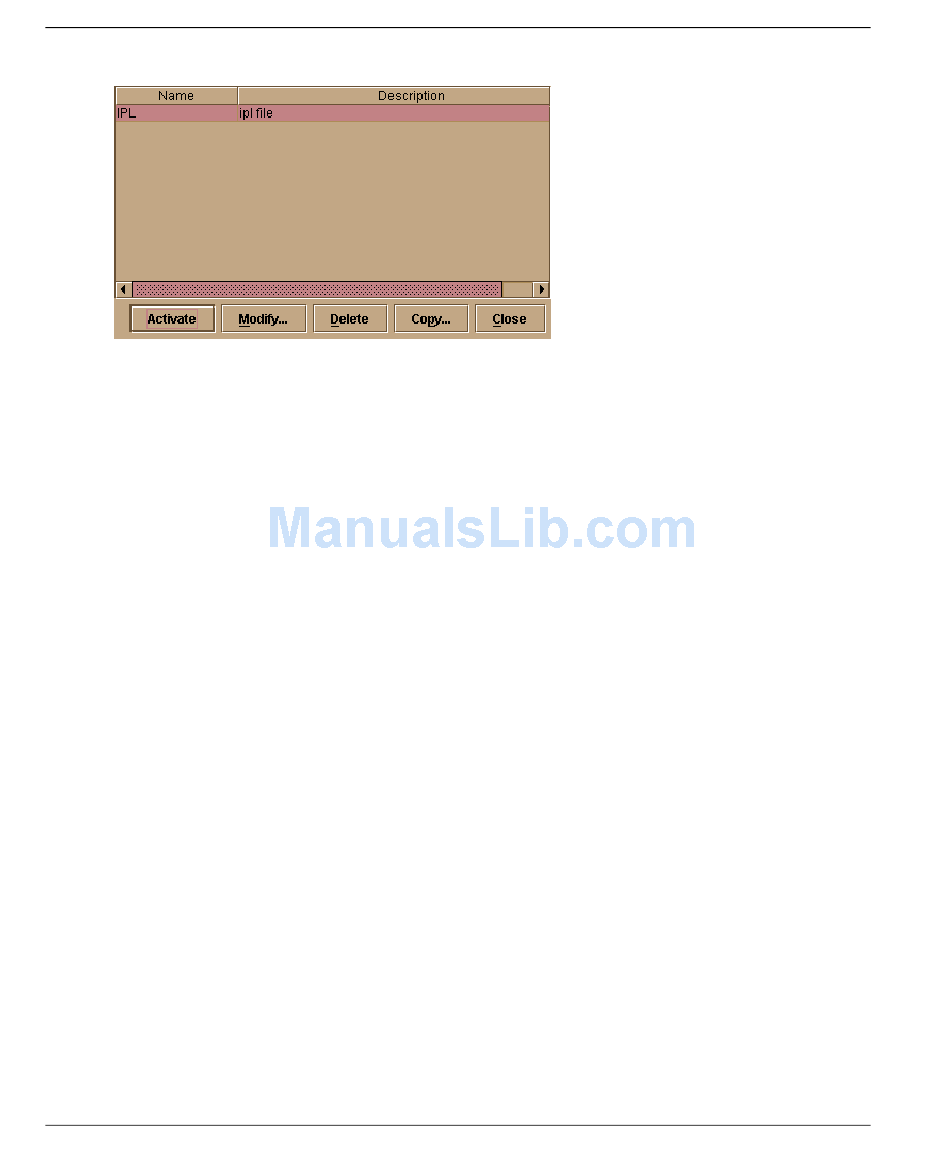

Figure 3–10: Address Configuration Library dialog box
2. Select a configuration entry by clicking on the row. Then use one of the
procedures below.
a. To modify a stored configuration:
Click Modify. The Configure Addresses dialog box displays for the configuration.
See
Configure Port Addresses (S/390 mode only) on page 3-14
using this dialog box.
b. To delete a stored configuration:
Click Delete. A warning displays before deletion.
c. To copy a stored configuration:
Click Copy to copy the configuration and rename/describe it.
When the Copy Address Configuration dialog box displays, provide a name and
description for the configuration. Names must be between 1 and 8 characters in
length. Valid characters are uppercase A-Z, 0-9, hyphen (-), and underscore (_).
The name may not be CON, AUX, COMn (where n=1-9), LPTn (where n=1-9),
NUL, or PRN. Descriptions must be between 0 and 24 characters in length. Up to
24 alphanumeric characters are allowed, including spaces,
underscores. Click OK and the configuration is added to the library.
d. Activate a stored configuration
Click Activate to activate the configuration and send it to the switch for immediate
use. A warning displays before the action occurs.
NOTE: If Active=Saved is enabled in through the Configure FICON Management Server dialog
box (Configure menu), this overwrites the current IPL address configuration.
3. When finished managing the library, click Close to close the dialog box.
3–18
hyphens,
edge switch 2/16 product manager user guide
for details on
and
