CVM-E3-MINI
3�5�3�- MODELS CVM-E3-MINI-ITF-WiEth AND CVM-E3-MINI-MC-WiEth
A1
A2
Table 9: Device terminals: CVM-E3-MINI-ITF-WiEth and CVM-E3-MINI-MC-WiEth
A1: ~ +, Power supply
A2: ~ -, Power supply
10: VL1, voltage input L1
11: VL2, voltage input L2
12: VL3, voltage input L3
13: N, Neutral voltage input
1: S1, current input L1
3�5�4�- MODEL CVM-E3-MINI-FLEX-WiEth
A1: ~ +, Power supply
A2: ~ -, Power supply
10: VL1, voltage input L1
11: VL2, voltage input L2
12: VL3, voltage input L3
13: N, Neutral voltage input
1: L1, current input L1
Instruction Manual
10
10
11
11
12
13
12
13

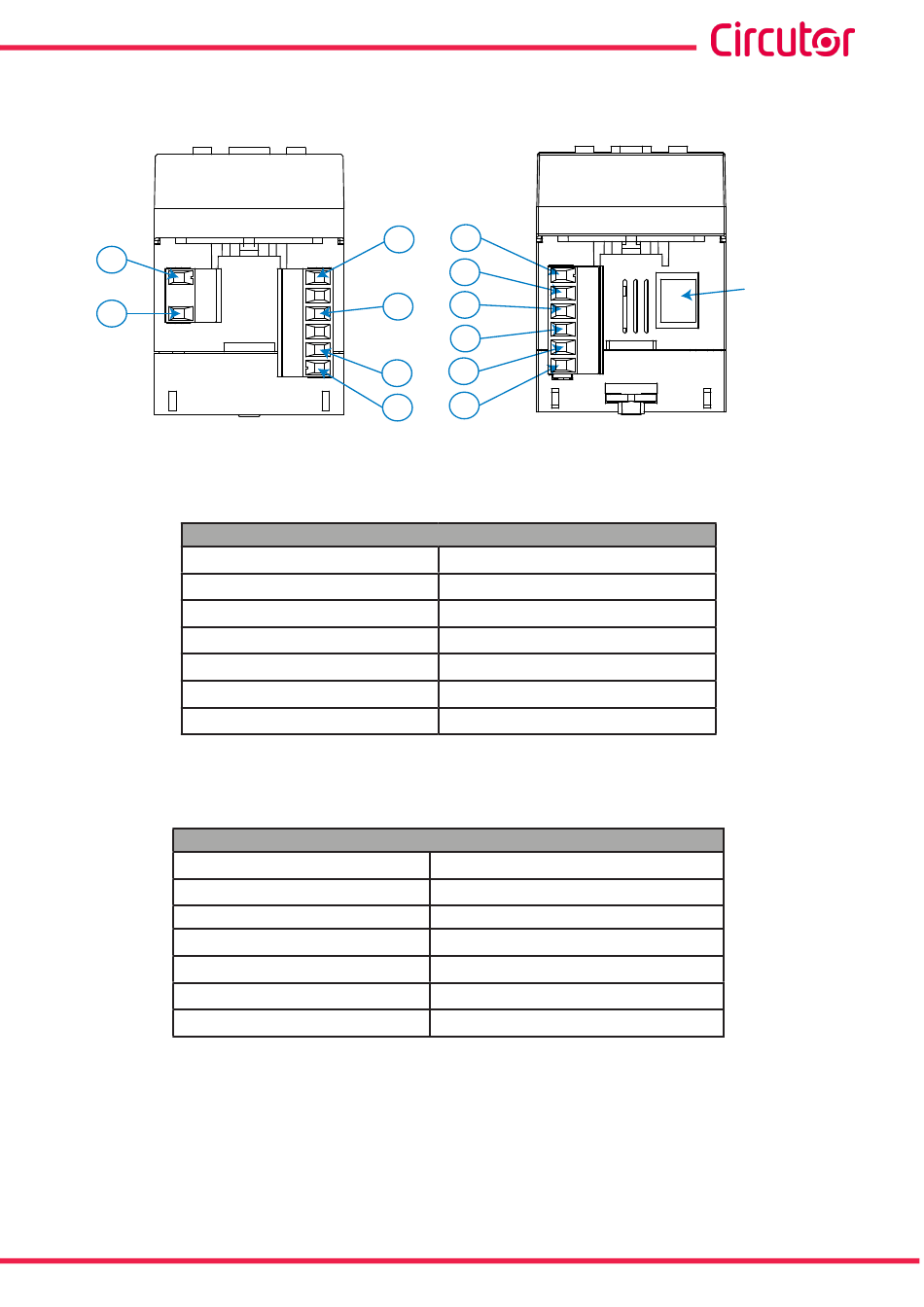

Figure 5: CVM-E3-MINI-ITF/-MC/-FLEX-WiEth terminals: Up - Down�
Device terminals
Table 10: Device terminals: CVM-E3-MINI-FLEX-WiEth
Device terminals
1
2
3
4
5
6
2: S2, current input L1
3: S1, current input L2
4: S2, current input L2
5: S1, current input L3
6: S2, current input L3
Ethernet: Ethernet connection
2: L2, current input L2
3: L3, current input L3
4: Without connecting
5: C, Common current input
6: SHLD, GND for current inputs
Ethernet: Ethernet connection
Ethernet
