2.0

Installation

This section describes procedures for connecting power, load cells, digital I/O and data communication cables to a 682 indicator.
An assembly drawing and parts list are included for the service technician.
WARNING
AVERTISSEMENT
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to state and
local regulations.
ATTENTION: Risque d'explosion si la batterie est remplacée par un type incorrect. Mattre au rebus les batteries usagées
selon les règlements d'état et locaux.
WARNING: Failure to heed the following statements could result in serious injury or death.
• Use a grounding wrist strap to protect components from electrostatic discharge (ESD) damage when working inside the
indicator enclosure.
• Procedures requiring work inside the 682 must be performed by qualified service personnel only.
• In-wall and universal mounts, the supply cord serves as the power disconnect. The power receptacle to the indicator
must be accessible for these models.
2.1

Unpacking

Immediately after unpacking, visually inspect the 682 to ensure all components are included and undamaged. The shipping
carton contains the indicator, this manual and a parts kit. If parts were damaged in shipment, notify Rice Lake Weighing
Systems and the shipper immediately.
2.1.1

Product Dimensions

This section includes exterior product dimensions of the 682 enclosure and universal stand.
A B
11.6 in (294.7 mm) 9.5 in (241.3 mm) 10.0 in (254.0 mm) 6.0 in (152.4 mm) 8.6 in (218.5 mm)
Risk of electrical shock.
Risque de choc.

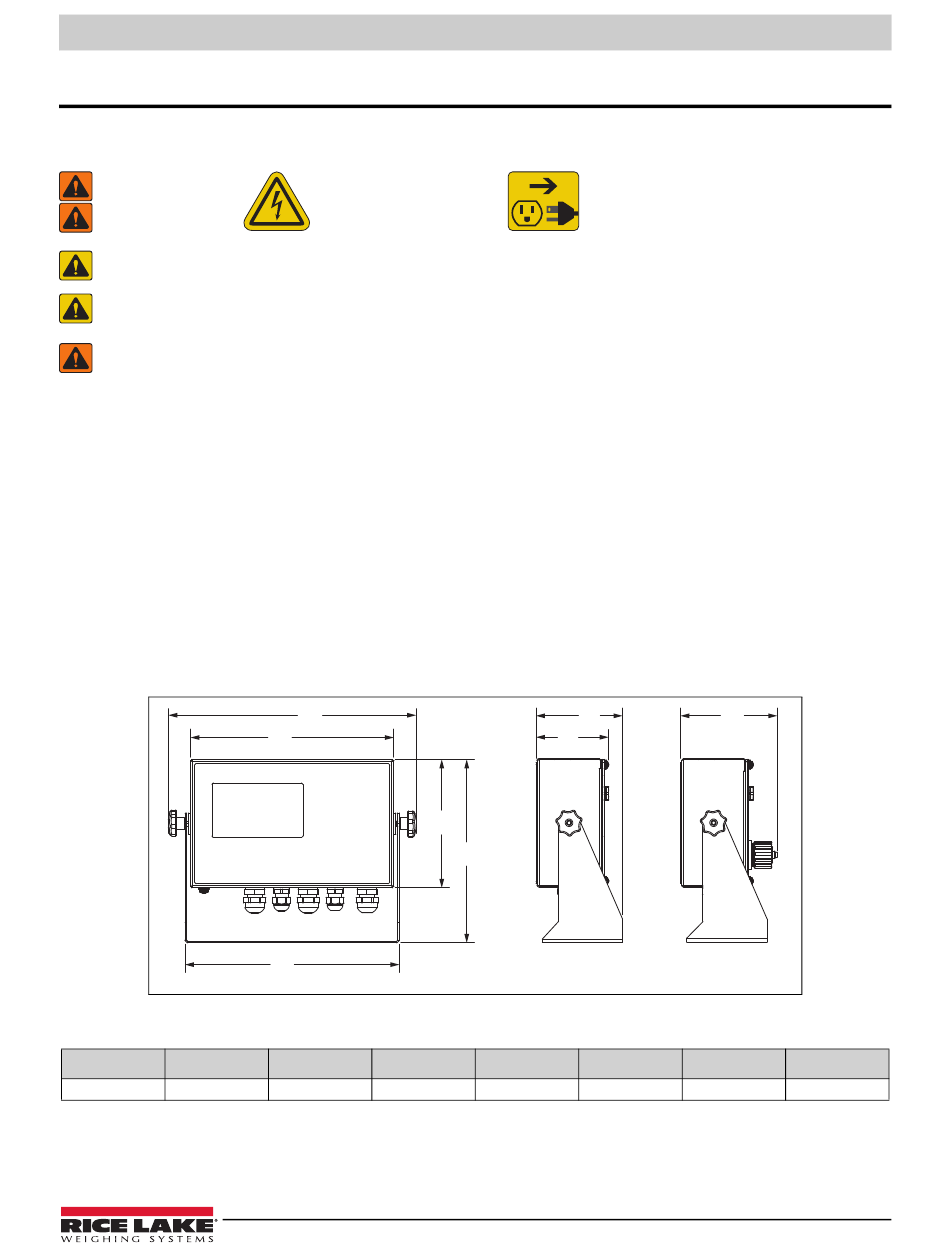

Figure 2-1. Product Dimensions Diagram
A
B
D
C
Table 2-1. Product Dimensions
C D
© Rice Lake Weighing Systems ● All Rights Reserved
Disconnect power before servicing.
Débranchez l'alimentation avant l'entretien.
G
F
E
E F
3.5 in (88.9 mm)
Installation
H
682 with Optional
RJ45 Connector
G H
4.0 in (101.6 mm) 4.5 in (114.3 mm)
