Browser Display - Rice Lake REVOLUTION 682 Synergy Plus Technical Manual

8.2

Browser Display

This section provides an example of the 682 web server browser display and describes all the features and their functions.
Item No.
1
2
3
4
5
6
7
NOTE: Text that appears in the message display area of the 682 is not shown via the web server.

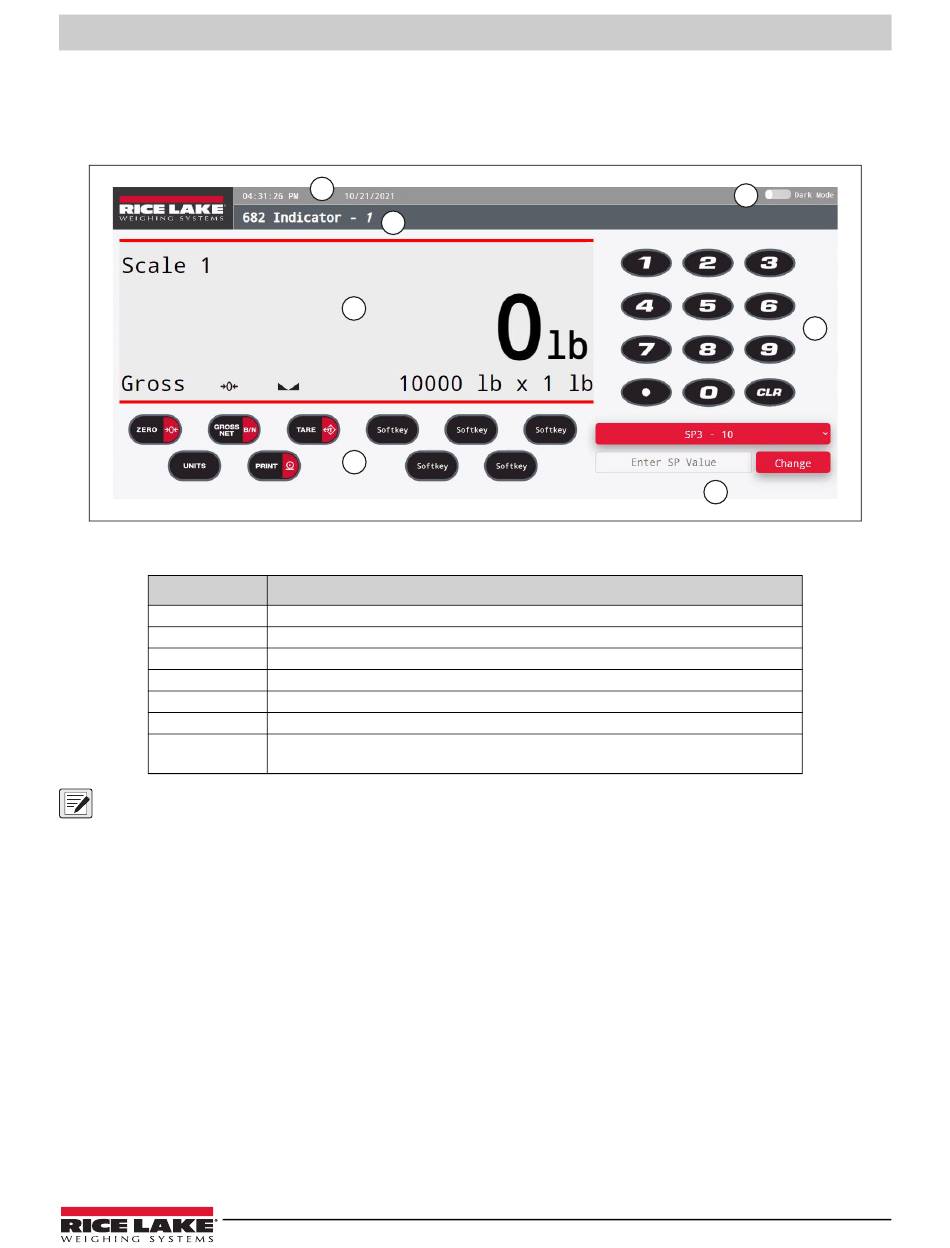

Figure 8-1. Web Server Browser Display
1
2
4
6
Table 8-1. Web Server Display Descriptions
Current time and date
Unit ID location
Dark mode display option toggle; adjusts display for lowlight or nighttime viewing
Current 682 weight display area
Remote numeric keypad
Remote function keys and softkeys
Ability to view and update setpoint values if Access is set to On for the selected setpoint, otherwise
selecting the Change button has no effect
