4. Part Replacement
User Guide
4.4 Rear Fan Replacement
Figure 53: Uninstalling the Rear Fan

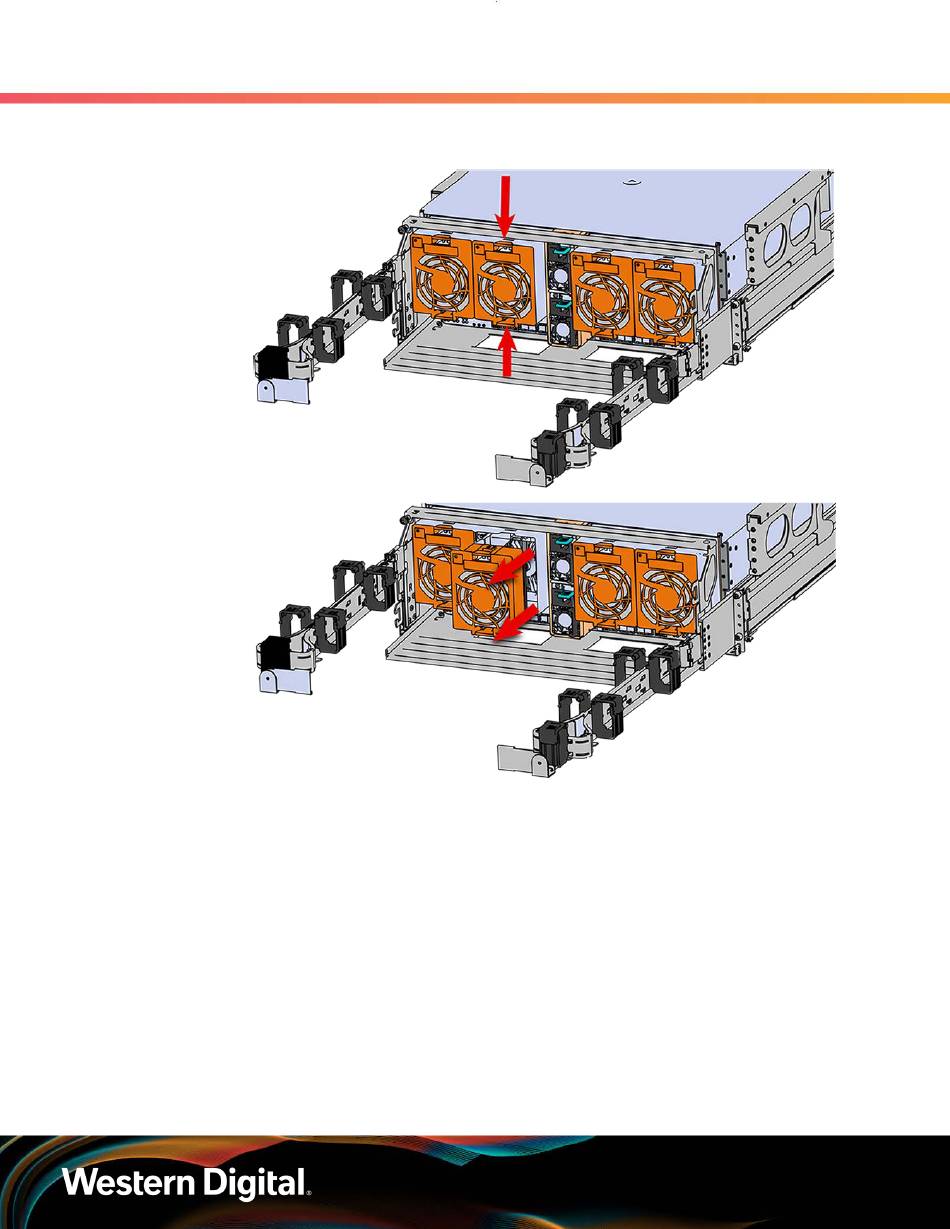

Step 3 : Install Rear Fan
a. Orient the rear fan as shown in the following image.
b. Insert the rear fan into the housing as shown in the following image.
69
