User Guide
b. Locate and unlatch the springlock on the side of the inner rail.
c. Slide the inner rail toward the front of the enclosure to unlock it from the pegs that secure
it to the sidewall and pull it free.
Step 16 : Remove the screws that secure the rack rails to the rack.
a. Uninstall the alignment bracket by removing the screws that secure it to the rack posts
using the screw locations in the following image. Be careful, the alignment bracket will be
free once the screws are removed. Make sure you have a solid grip on it before removing
the final screw.

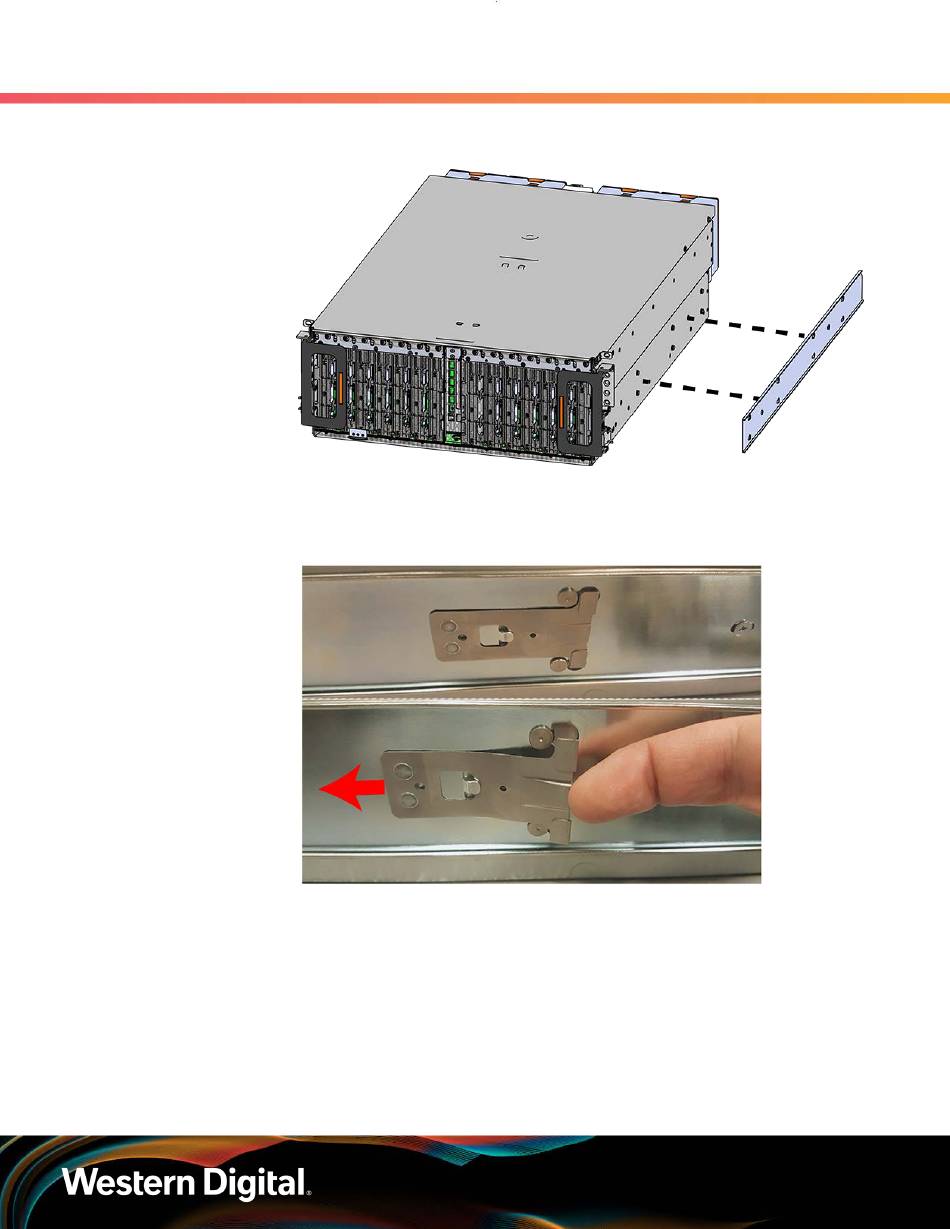

Figure 101: Remove Inner Rail
Figure 102: Inner Rail Spring Latch
4. Part Replacement
4.8 Rails Replacement
101
