Step 16 : Remove the second IOM.
Step 17 : Remove the IOM Fan.
a. With one hand, grasp around the center square of the fan housing as shown in the
following image.
b. Pinch the IOM fan housing to release the latching mechanism and pull it straight out from
the chassis.
Step 18 : Release the safety latch on the inner rails on each side of the chassis as shown in the following
image.

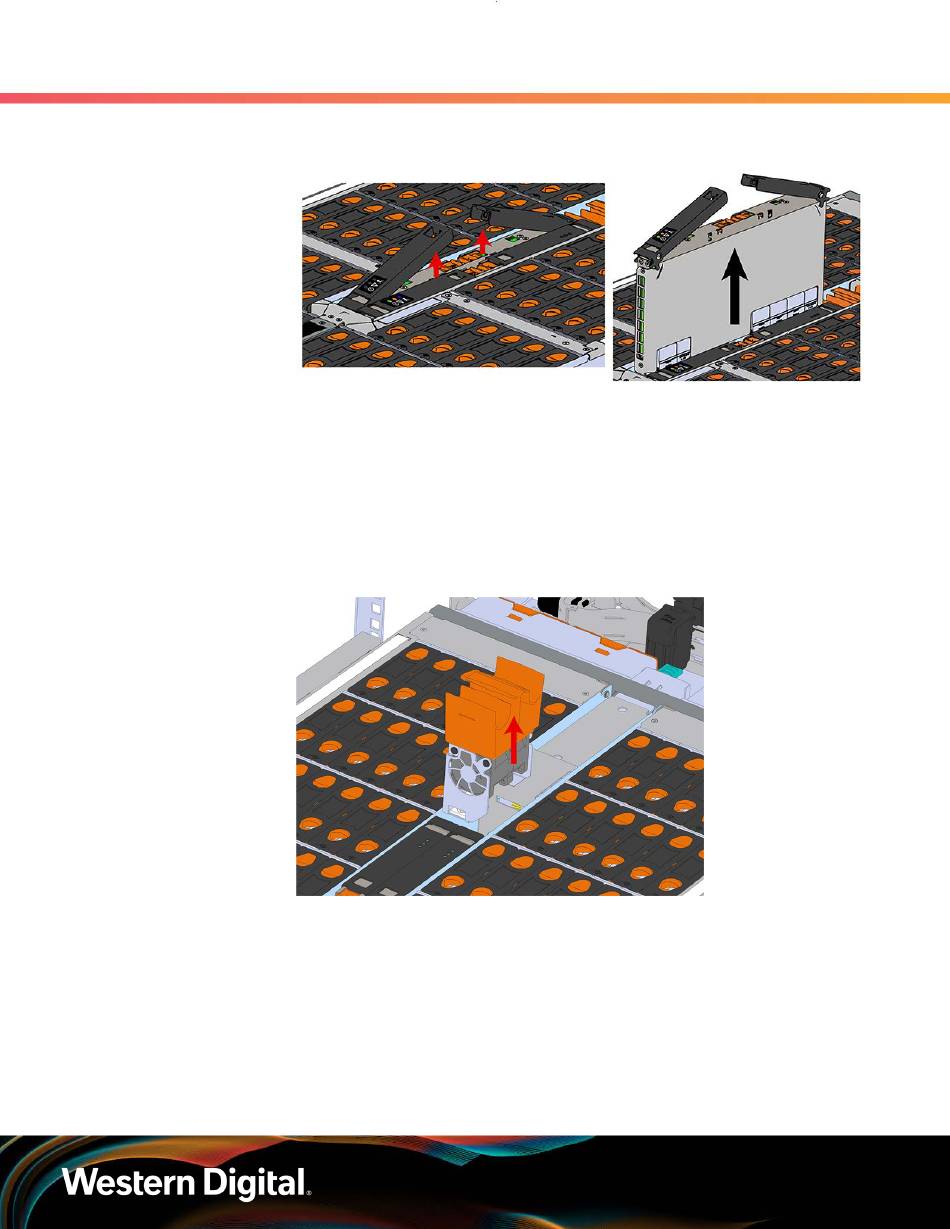

Figure 145: Removing IOM
Figure 146: Removing IOM Fan
4. Part Replacement
4.9 Chassis Replacement
131
