User Guide
Step 12 : Remove all of the drives from the chassis before uninstalling the chassis. Be prepared to label the
drives as they are removed so they can be reinstalled in the same location in the new chassis.
Step 13 : Follow these steps to remove a Drive Assembly.
a. Find the latch release mechanism on the Drive Assembly being removed.
b. Insert a finger and a thumb into the latch release and pinch to unlatch the Drive Assembly.
c. Lift the Drive Assembly free from the enclosure.

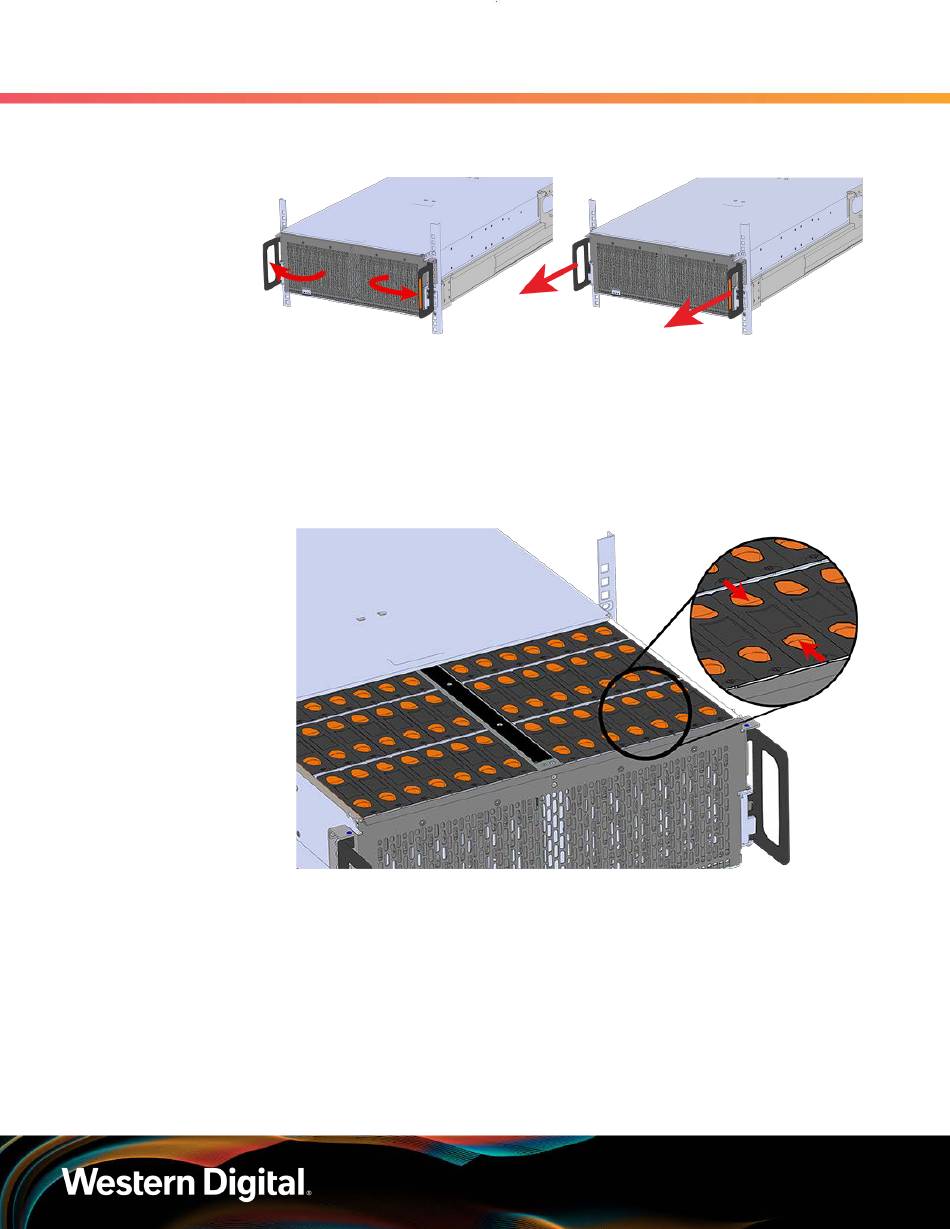

Figure 141: Chassis Handle Operation
Figure 142: Unlatch Drive Carrier (IOM Not Shown)
4. Part Replacement
4.9 Chassis Replacement
129
