c. Slide the inner rail toward the rear of the chassis to lock it in place. There will be an
audible click and the mounting pegs will cover the front part of the keyhole.
d.
Install the two special low-profile M4 x 3.2mm Philips screws provided to secure the inner
rail to the chassis.
e. Follow these steps for the second inner rail on the opposite side of the enclosure.
Step 27 : Secure the Cable Tray onto the enclosure using the included M3 x 8mm T10 Torx screws and the
Long T10 Torx Screwdriver. These screws should be tightened to .33-.56 Nm / 3-5 in-lbf using a
Long T10 Torx Screwdriver.

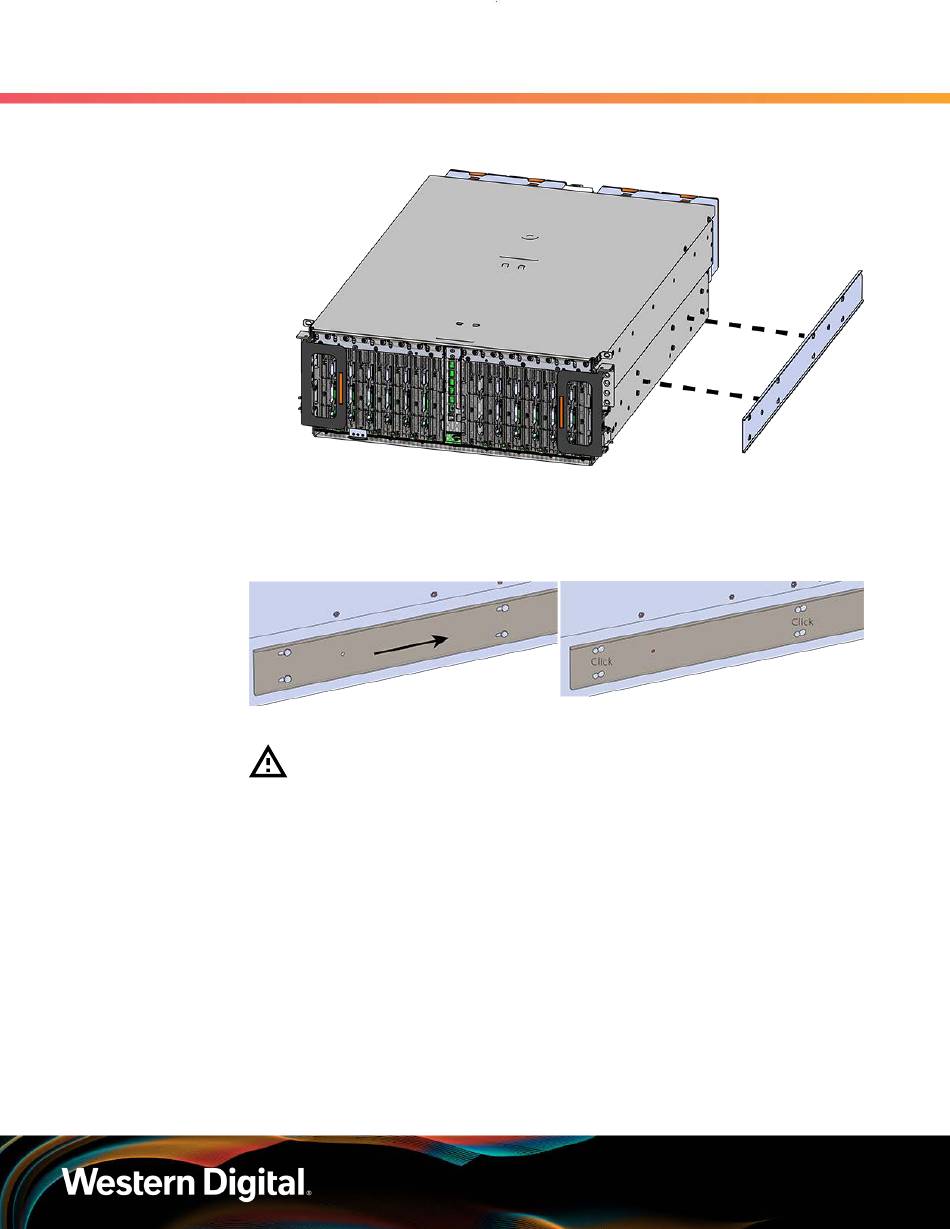

Figure 153: Inner Rail Attachment
Figure 154: Slide Inner Rail
Caution: When installing the inner rail onto the chassis, make sure to only
use the special Low-Profile M4 x 3.2mm Philips screws provided in the
accessory kit with the CMA. These screws should be tightened to .90-1.12
Nm / 8-10 in-lbf using a # 2 Philips Screwdriver. These screws are specially
designed for this purpose. Using unapproved screws could cause damage
to the slides inside the rail.
4. Part Replacement
4.9 Chassis Replacement
