User Guide
Four SATA Enclosure: One Host with a Single HBA
5.6.3 Two Host Cable Configurations

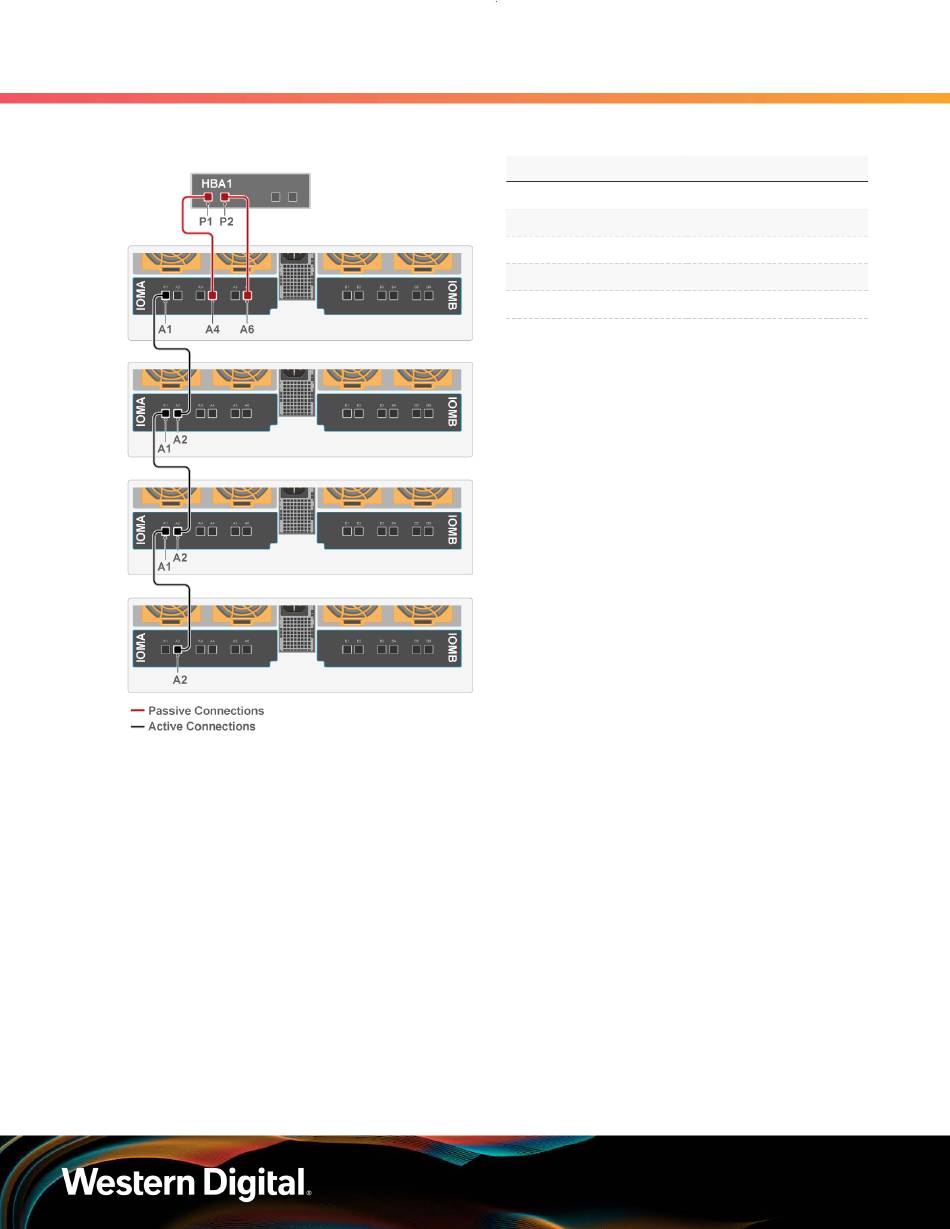

This section provides the information required to connect two or more enclosures to two hosts via SAS
connections. Choose the cable map that fits the preferred daisy chaining requirement.
5. System Management
Source Device
Host1: P1
Host1: P2
Enclosure1: IOMA, A1
Enclosure2: IOMA, A2
Enclosure2: IOMA, A1
Enclosure3: IOMA, A2
Enclosure3: IOMA, A1
Enclosure4: IOMA, A2
5.6 Daisy Chaining
Destination Device
Enclosure1: IOMA, A4
Enclosure1: IOMA, A6
217
