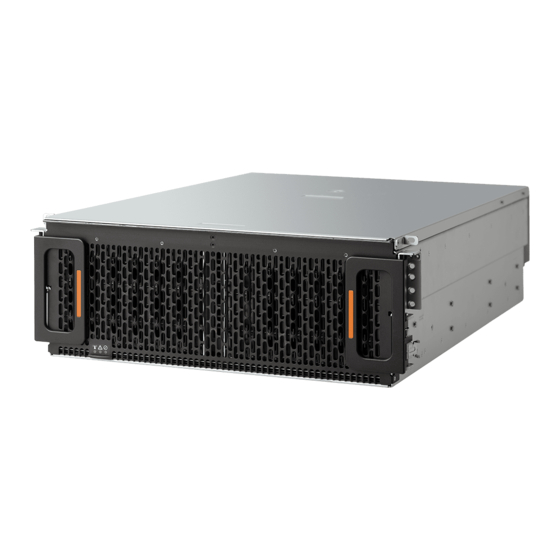

Western Digital Ultrastar Data60 Manual

Ecodesign disclosures
Hide thumbs Also See for Ultrastar Data60:

Advertisement

Quick Links

Download this manual
EcoDesign
Disclosures
Ultrastar® Data60
Regulatory Model H4060-J
Document D018-000245-000
Revision 02
September 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultrastar Data60 and is the answer not in the manual?

Questions and answers

Related Manuals for Western Digital Ultrastar Data60

Summary of Contents for Western Digital Ultrastar Data60

  • Page 1 EcoDesign Disclosures Ultrastar® Data60 Regulatory Model H4060-J Document D018-000245-000 Revision 02 September 2022...

  • Page 2: Table Of Contents

    EcoDesign Disclosures Table of Contents Table of Contents Revision History........................................ii Notices............................................iii Chapter 1. EU EcoDesign Disclosures................1 EcoDesign Overview....................................2 Ultrastar Data60 EcoDesign Specifications..........................2 Instant Secure Erase / Secure Erase............................2 Ultrastar Data60 Disassembly................................5...

  • Page 3: Revision History

    EcoDesign Disclosures Revision History Revision History Date Revision Comment February 2020 Initial release March 2020 Updated the Notices section September 2021 Changed document number from 1ET2154 to D018-000245-000 September Updated document branding 2022...

  • Page 4: Notices

    Per Western Digital Terms and Conditions of Sale, the user of Western Digital products in life support applications assumes all risk of such use and indemnifies Western Digital against all damages.

  • Page 5: Chapter 1. Eu Ecodesign Disclosures

    This document provides information and instructions related to the 's disclosures for the EU's ecodesign requirements. In This Chapter: - EcoDesign Overview....................... 2 - Ultrastar Data60 EcoDesign Specifications............2 - Instant Secure Erase / Secure Erase............... 2 - Ultrastar Data60 Disassembly..................5 - ............................

  • Page 6: Ecodesign Overview

    1. EU EcoDesign Disclosures EcoDesign Disclosures 1.1 EcoDesign Overview 1.1  EcoDesign Overview This document provides information about the Ultrastar Data60 related to its manufacturing and operation, and instructions for secure data deletion and disassembly. 1.2  Ultrastar Data60 EcoDesign Specifications Onilne Data Storage Product...
  • Page 7 Western Digital technical support, or download the following whitepaper for details: https://documents.westerndigital.com/content/dam/doc-library/en_us/assets/public/western-digital/ collateral/tech-brief/tech-brief-instant-secure-erase... ISE / SE Overview Instant Secure Erase (ISE) is Western Digital’s implementation of the industry standard T10 (SAS)/T13 (SATA) command, allowing users to instantly erase both user-accessible data and hidden user sanitize data from Western Digital drives.
  • Page 8 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.3 Instant Secure Erase / Secure Erase • ISE - Crypto Erase - HDD/SSD: # sg_sanitize --crypto --quick <dev> • SE - Overwrite - HDD: # sg_sanitize --overwrite --quick --zero <dev> • Block Erase - SSD: # sg_sanitize --block --quick <dev>...

  • Page 9: Ultrastar Data60 Disassembly

    1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly 1.4  Ultrastar Data60 Disassembly This task provides instructions for disassembling an Ultrastar Data60 to meet the EU's ecodesign requirements. Table 3: Procedure Requirements Time Required Tools # of People Required...
  • Page 10 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 2: CMA(s) in service position (Cables not shown) Powering Down the Enclosure Step 2 : Disconnect the Enclosure from power. a. Locate the redundant PSUs at the rear of the enclosure.
  • Page 11 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 4: Strap-Style Cable Retention     c. Power down the enclosure by disconnecting both power cables, one from each PSU. Removing the Cables Step 3 : Disconnect the HD Mini-SAS cables from the rear of the enclosure by pulling (don't jerk) on the blue tab that is extending outward from the connector.
  • Page 12 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Removing the CMA(s) Step 6 : Remove the CMA(s). a. Release all of the connectors that attach the CMA(s) to the enclosure and the rail. There are three total connections that need to be released, one at the elbow and two at the opposite end.
  • Page 13 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 8: Crossbar Swinging Out c. Once the crossbar is straight it should easily come free from the mounting bracket. Uninstalling the PSUs Uninstall the PSU. Step 8 : a. Grasp the PSU handle and release lever in a downward pinching motion to release the latching mechanism.
  • Page 14 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Uninstalling the Rear Fans Step 9 : To unlatch the rear fan from the fan housing, use one hand to press the clip at the top and bottom of the fan and pull to free it from the chassis and remove it.
  • Page 15 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 11: Chassis Handle Operation Removing the Drives Step 11 : Follow these steps to remove a 3.5in HDD Assembly. a. Find the latch release mechanism on the 3.5in HDD Assembly being removed.
  • Page 16 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 13: Removing 3.5in HDD Assembly Step 12 : Repeat these steps to remove all the drive assemblies from the enclosure. Removing the IOMs Step 13 : Uninstall the IOM(s). a. Locate the latch release on the IOM and press it in the direction shown in the following image.
  • Page 17 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 15: Removing IOM Step 14 : Repeat these steps to remove the remaining IOM from the enclosure. Disassembling the IOMs Lay one of the IOMs on its side. Step 15 : Step 16 :...
  • Page 18 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Using a T10 Torx screwdriver, remove the six (6) M3 4mm pan-head screws securing the circuit Step 18 : board to the other side-panel: Pull the circuit board upward to remove it from the IOM: Step 19 :...
  • Page 19 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Removing the IOM Fan Step 21 : Remove the IOM Fan. a. With one hand, grasp around the center square of the fan housing as shown in the following image. b. Pinch the IOM fan housing to release the latching mechanism and pull it straight out from the chassis.
  • Page 20 The handles on the front of the chassis are not intended to be used to support the weight of the Ultrastar Data60 . Lifting the unit by the chassis handles or trying to support the unit on the handles can cause them to fail.
  • Page 21 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 23: Safety Latch Release d. Depress the latch release lever for the safety latches on the rail and push the chassis very slightly forward. The chassis is now unsecured from the rack.
  • Page 22 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 24: Remove Inner Rail b. Locate and unlatch the springlock on the side of the inner rail. Figure 25: Inner Rail Spring Latch c. Slide the inner rail toward the front of the enclosure to unlock it from the pegs that secure it to the sidewall and pull it free.
  • Page 23 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 26: Uninstalling the Cable Tray Removing the Chassis Cover from the Enclosure Slide the chassis cover toward the rear of the enclosure. Then lift it up to remove it from the Step 29 :...
  • Page 24 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 28: PDB Cover Location...
  • Page 25 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Use a T7 Torx screwdriver to remove the three (3) M3 6mm screws securing the PDB cover to the Step 30 : left and right drive housings. Then pull up on the PDB cover to remove it from the chassis:...
  • Page 26 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 30: Plenum Covers Location Step 31 : Use a T7 Torx screwdriver to remove the four (4) M3 6mm screws securing the plenum covers to the left and right drive housings: Step 32 :...
  • Page 27 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Pull up on the plenum covers to remove them from the chassis: Step 33 : Removing the Fan Housing Assembly The fan housing assembly is shown in red in the following image:...
  • Page 28 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 34: Fan Housing Assembly Location Step 34 : Use a T7 Torx screwdriver to remove the twelve (12) M3 6mm screws securing the back of the fan housing assembly to the back of the chassis. The screws are shown in red in the following image:...
  • Page 29 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Step 36 : Pull the fan housing assembly away from the chassis, just far enough to unplug the fan cable connectors from their receptacles on the baseboard. The fan cables, connectors, and receptacles...
  • Page 30 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Removing the PDB Bus-Bar Screws The PDB bus-bar and screws are shown in red in the following image:...
  • Page 31 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 39: PDB Bus-Bar Screws, As Viewed from the Top-Front...
  • Page 32 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Use a T8 Torx screwdriver to remove the four (4) M3 6mm screws securing the PDB to the Step 38 : baseboard. The screws are shown in red in the following image:...
  • Page 33 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 41: IO Housing Location Step 39 : Use a T7 Torx screwdriver to remove the fourteen (14) M3 6mm screws securing the IO housing to the drive housings and chassis. Then pull the IO housing up to remove it from the chassis:...
  • Page 34 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Removing the PDB from the IO Housing Step 40 : Lay the IO housing on its side. Use a T7 Torx screwdriver to remove the eighteen (18) M3 6mm screws securing the right side Step 41 :...
  • Page 35 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Lift the PDB to remove it from the IO housing: Step 43 : Removing the Drive Housings The right drive housing is shown in red in the following image.
  • Page 36 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 46: Right Drive Housing, As Viewed from the Right-Rear-Top Step 44 : At the front of the chassis, use a T7 Torx screwdriver to remove the two (2) M3 7mm screws...
  • Page 37 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 48: Right-Front Inside Corner, As Viewed from the Left-Rear-Top Inside the drive bays of the right drive housing, use a T7 Torx screwdriver to remove the four (4) Step 46 :...
  • Page 38 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 50: Right-Front Outside Corner, As Viewed from the Right-Rear-Bottom Step 48 : On the side of the chassis, use a T7 Torx screwdriver to remove the twelve (12) M3 6mm screws...
  • Page 39 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Step 50 : Repeat these steps to remove the left drive housing. Removing the HDD Limiters The HDD limiters are shown in red in the following image. Figure 53: HDD Limiters Location...
  • Page 40 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly The bottom side of each limiter has twelve (12) clips that hold it to the baseboard; these clips must be disengaged from the baseboard in order to remove the limiter:...
  • Page 41 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Use your fingers—or a flat object (flat-head screwdriver, etc.)—to pry up the 10 HDD limiters at Step 51 : their clip locations, and remove the limiters from the baseboard: Removing the Baseboards...
  • Page 42 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Use a T7 Torx screwdriver to remove the twelve (12) M3 6mm screws securing the smaller, front Step 52 : baseboard to the chassis. The screws are shown in red in the following image:...
  • Page 43 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 58: Front Baseboard, As Viewed from the Right-Rear-Top Use a T7 Torx screwdriver to remove the thirteen (12) M3 6mm screws securing the larger, rear Step 54 : baseboard to the chassis. The screws are shown in red in the following image:...
  • Page 44 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 59: Enclosure Rear, As Viewed from the Front-Top Step 55 : Pull up to remove the larger, rear baseboard from the chassis:...
  • Page 45 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data60 Disassembly Figure 60: Rear Baseboard, As Viewed from the Right-Rear-Top   R esult:   T he disassembly is now complete.
