User Guide
c. Slowly slide the enclosure forward to ensure the arm is operating properly, then slide it
back into the rack.
a. Repeat these steps to install the upper arm with the elbow facing to the right.
Step 45 : Install the crossbar onto the CMA mounting bracket.
a. Align the crossbar with the mounting peg facing down and pointing toward the CMA
mounting bracket.
b. Insert the peg on the underside of the crossbar into the slot on the CMA mounting
bracket.

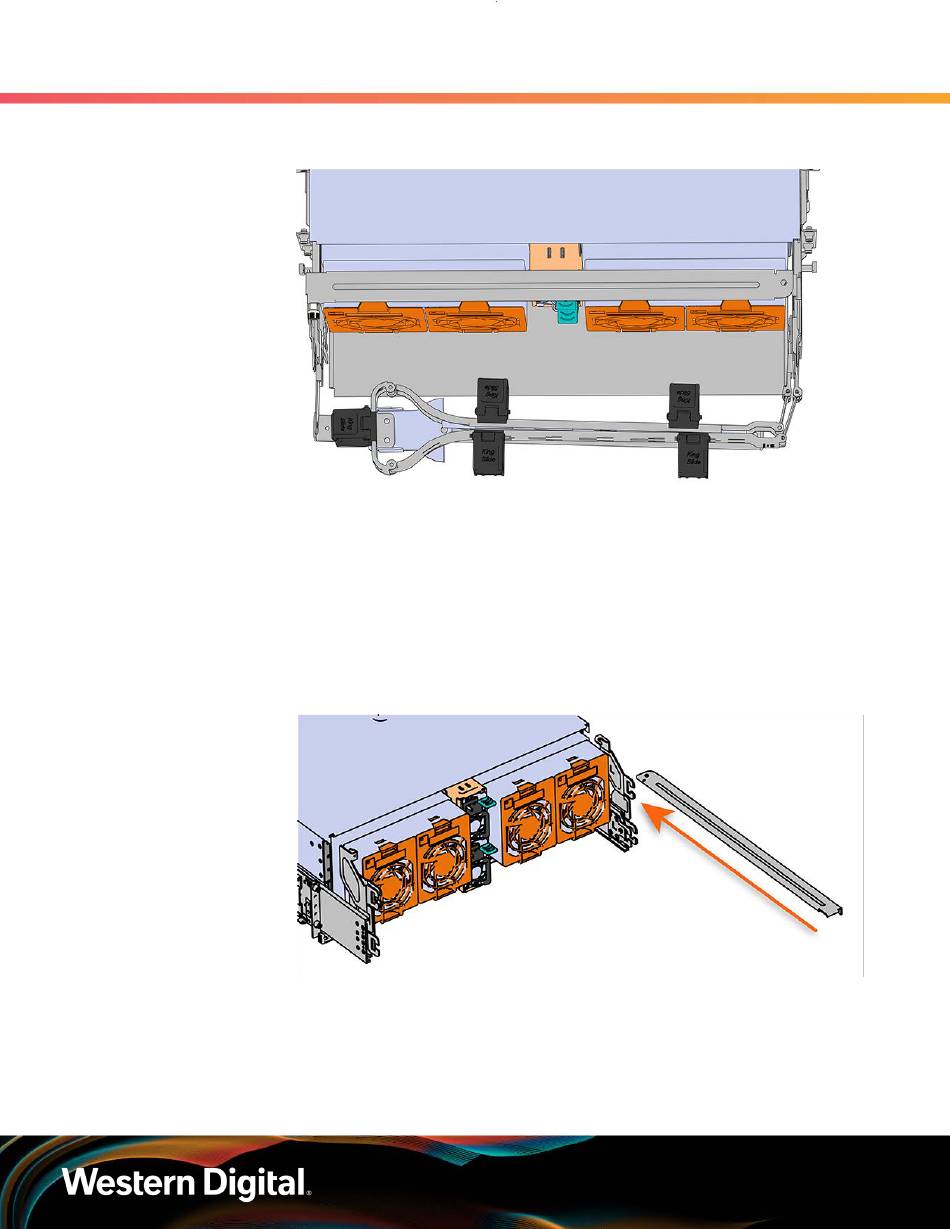

Figure 173: Lower CMA Orientation
Figure 174: Initial Alignment
4. Part Replacement
4.9 Chassis Replacement
149
