4. Part Replacement
User Guide
4.9 Chassis Replacement

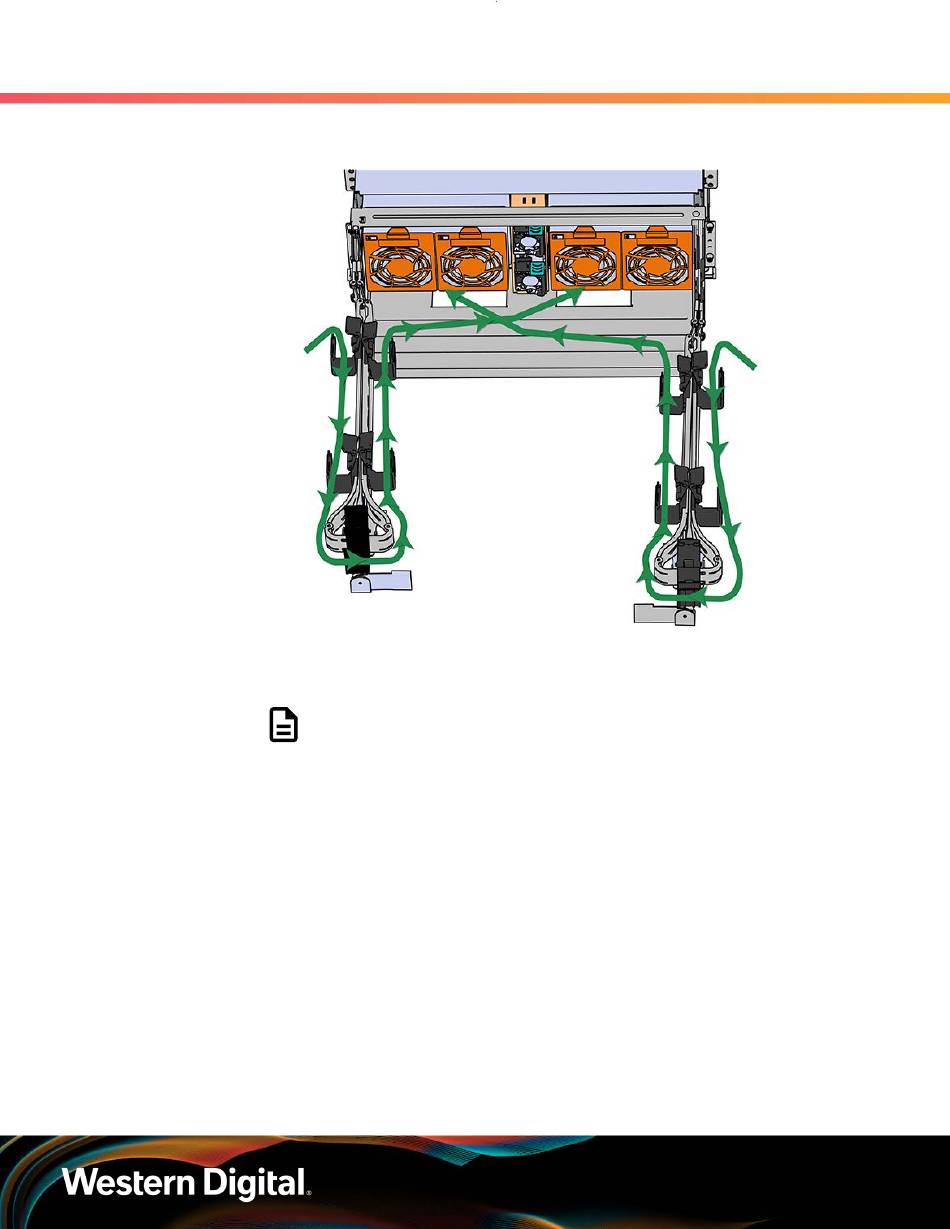

Figure 182: Connected Cable Routing
d. Wrap cable tie around the installed cable bundle between the ports and the first basket
of the CMA
Note: Each cable must be given enough slack at the connector end to
operate smoothly. For the upper CMA allow 20" - 21" (508 – 533.4mm)
between the end of the connector and the first basket. Make sure to
route all of the upper CMA cables under the lower CMA cables.
