User Guide
Step 40 : Install the PSU.
a. Align the PSU in the orientation shown in the following image.
b. Slide the PSU into the slot until it seats fully into the chassis.
c. Plug the power cable into the receptacle at the back of the PSU.
d. Loop the retention clip on the PSU cables around the cable and pinch it until the clip
catches and locks in place.

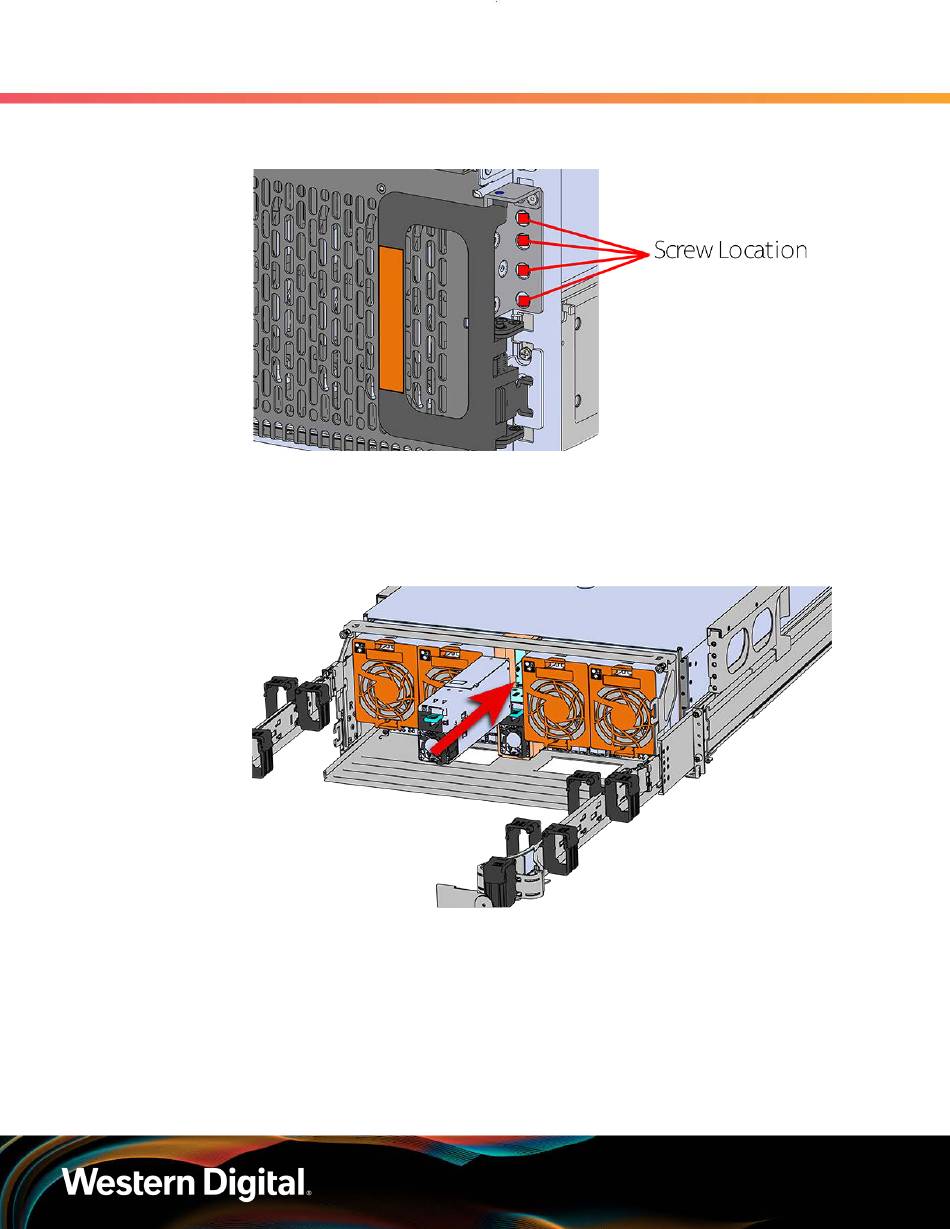

Figure 168: Shipping Bracket Screw Locations
Figure 169: Installing the PSU
4. Part Replacement
4.9 Chassis Replacement
146
