Step 30 : Secure the chassis top cover to the rack using the captive M5 thumb-screws as shown in the
following image. Use a T15 Torx screwdriver, and tighten the screws to 3.38-3.61 Nm / 30-32 in-
lbf.

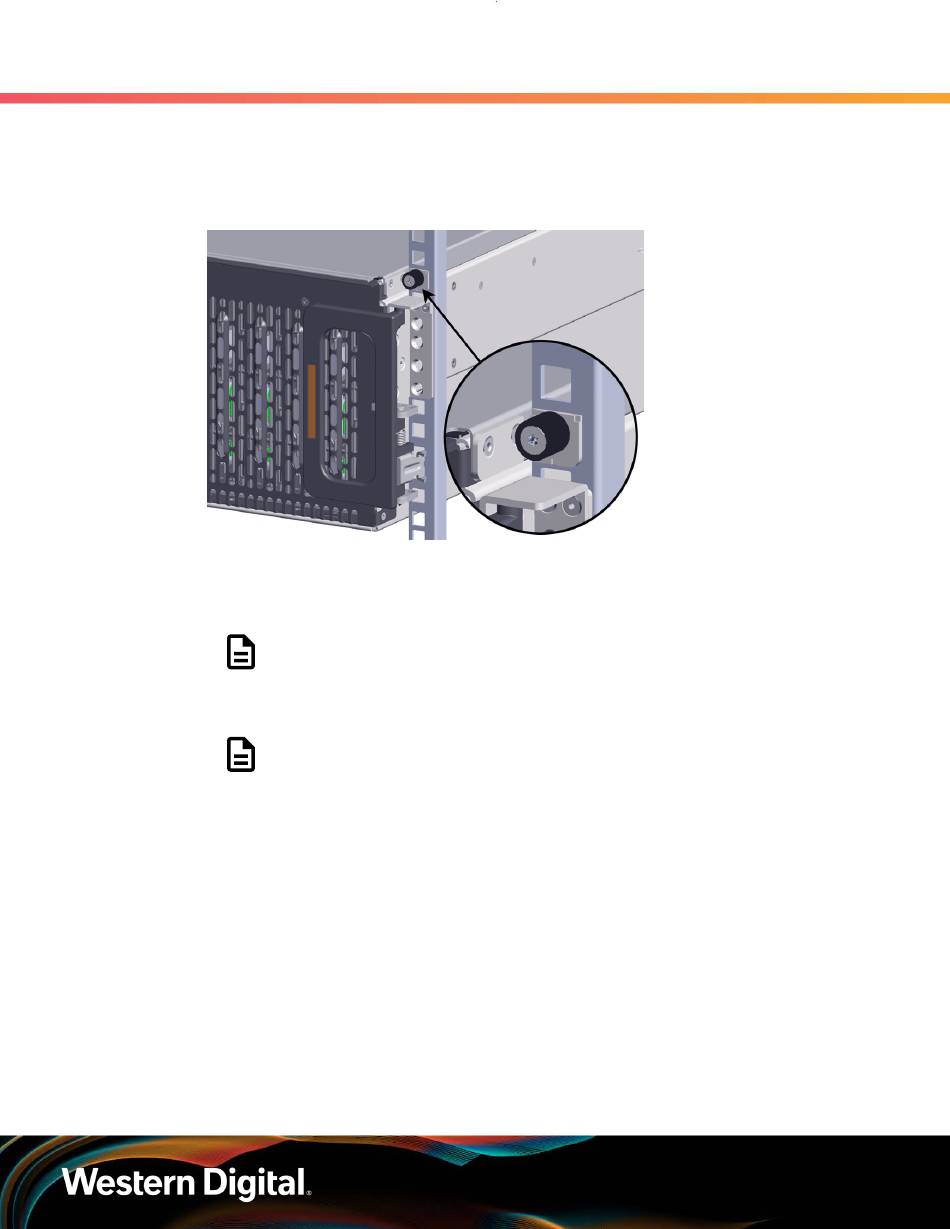

Figure 160: Cover Retention Screws
Step 31 : Now that the chassis is installed, test the installation by sliding the enclosure in and out of the
rack a minimum of three times. If the enclosure binds, catches, or displays any incorrect motion
or behavior repeat the installation.
Step 32 : Install the CMA(s).
a. Orient the CMA so that the elbow is on the left hand side.
b. Attach all three of the connectors to the brackets on the rails. There should be one at the
elbow side and two at the other end.
Note: Adjustments of the vertical rack rails may be required to fix any issues that
may occur.
Note: The CMA has two arms, labeled "upper" and "lower." The lower arm
should have the elbow on the left side and be installed first; the upper arm
should have the elbow on the right side and be installed last.
4. Part Replacement
4.9 Chassis Replacement
